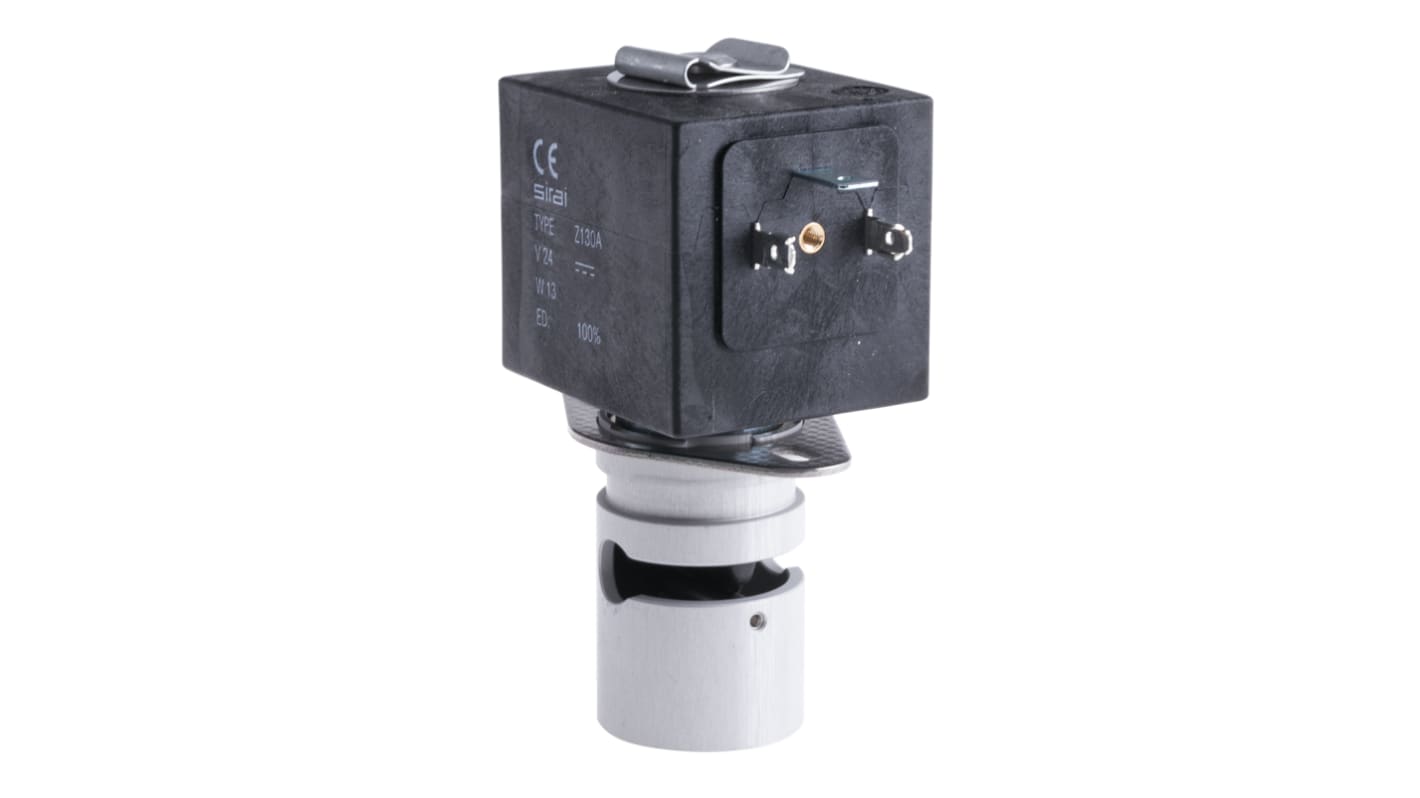

EMERSON – ASCO Solenoid Valve S10609Z130AD2, 2 port(s) , NC, 24 V dc
- RS Stock No.:
- 488-756
- Mfr. Part No.:
- S10609Z130AD2
- Brand:
- EMERSON ? ASCO
Bulk discount available
Subtotal (1 unit)*
£127.67
(exc. VAT)
£153.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 5 unit(s) shipping from 27 October 2025
- Plus 6 unit(s) shipping from 27 October 2025
- Plus 4 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £127.67 |
| 5 + | £123.70 |
*price indicative
- RS Stock No.:
- 488-756
- Mfr. Part No.:
- S10609Z130AD2
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? ASCO | |
| Supply Voltage | 24 V dc | |
| Number of Ports | 2 | |
| Operation | Direct | |
| Default Valve Position | NC | |
| Type | 2/2 | |
| Orifice Diameter | 6.4mm | |
| Series | S106 | |
| Body Material | Aluminium | |
| Operating Temperature Range | -10 → +60 °C | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand EMERSON ? ASCO | ||
Supply Voltage 24 V dc | ||
Number of Ports 2 | ||
Operation Direct | ||
Default Valve Position NC | ||
Type 2/2 | ||
Orifice Diameter 6.4mm | ||
Series S106 | ||
Body Material Aluminium | ||
Operating Temperature Range -10 → +60 °C | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
RoHS Status: Exempt
Pinch Valves
Pinch solenoid valves, suitable for applications where the media must be protected from contamination, particularly the control of physiological, medical and food fluids.
To be used with silicon (or other suitable, soft material)
Pressure not required for operation
Compact & lightweight
DIN plug connection
Can be operated manually
Ø9.5mm tube maximum O.D.
Ø6.4mm tube maximum I.D.
Can be mounted in any position
Pressure not required for operation
Compact & lightweight
DIN plug connection
Can be operated manually
Ø9.5mm tube maximum O.D.
Ø6.4mm tube maximum I.D.
Can be mounted in any position
Warning
Plug connector must be purchased separately
