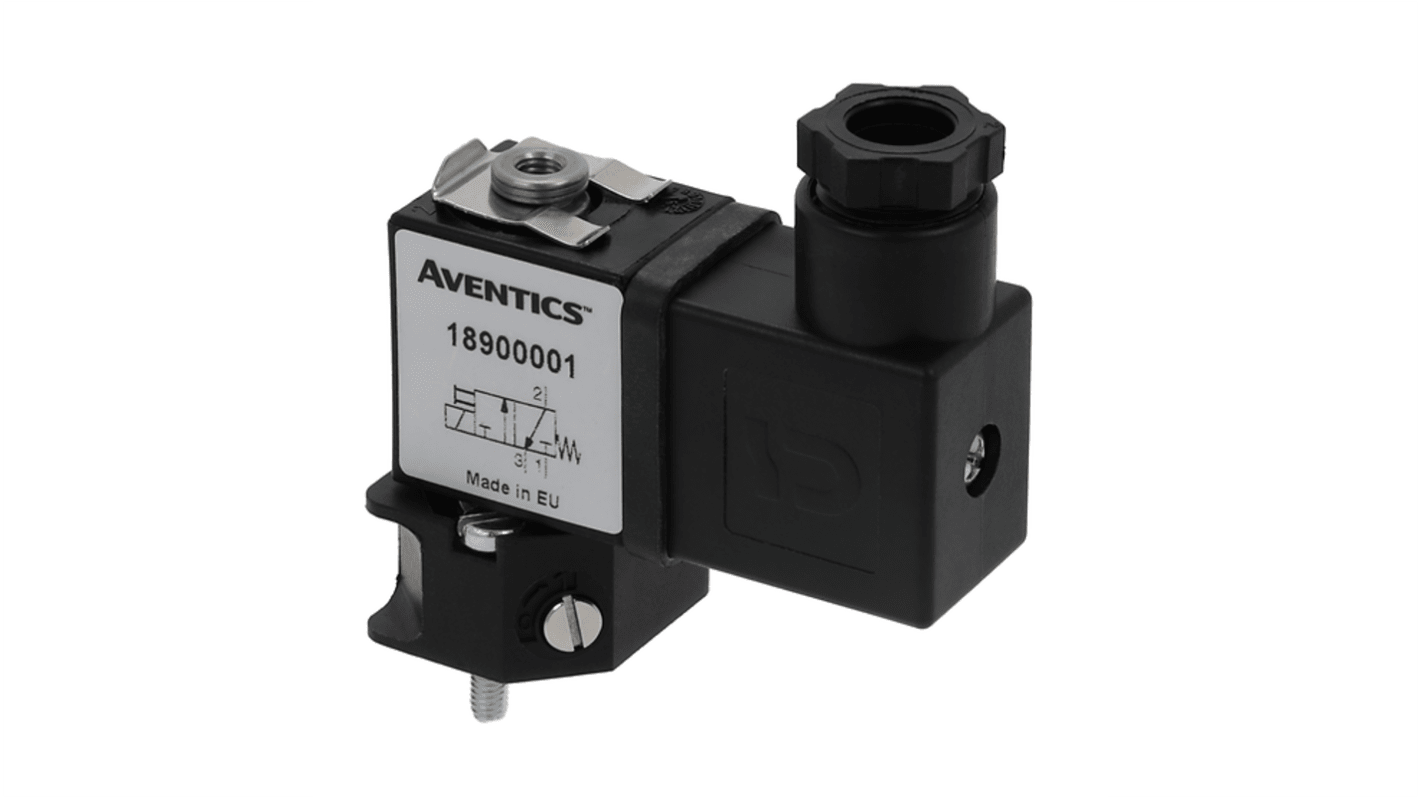

EMERSON – ASCO Solenoid Valve 18900001.12/DC, 3 Port, NC M5, 12 V, M5

View all Solenoid Valves

Subtotal (1 unit)*

£54.86

(exc. VAT)

£65.83

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£54.86

*price indicative

RS Stock No.:
432-092
Mfr. Part No.:
18900001.12/DC
Brand:
EMERSON ? ASCO
Find similar products by selecting one or more attributes.
Select all

Brand

EMERSON ? ASCO

Supply Voltage

12 V

Product Type

Solenoid Valve

Number of Ports

3

Inlet Port Size

M5

Default Valve Position

NC

Outlet Port Size

M5

Inlet Thread Standard

ISO 228/1

Inlet Connection Type

Threaded

Outlet Connection Type

Threaded

Orifice Diameter

1.2mm

Application

Air, Inert Gas

Series

189

Body Material

Polyamide

Outlet Thread Standard

ISO 228/1

Maximum Operating Pressure

10 bar

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

60°C

Standards/Approvals

CSA, E03.62.520.N, DIN 43650, CNOMO 06-05-80 / NF E 49066, IEC 335, UL, EN 60529, ISO 15218

Servo Assist

No

Hazardous Area Certification

CSA, Ex mb (PV), ATEX Directive 2014/34/EU, UL, Zone 22

Maximum Closing Time

10ms

Maximum Opening Time

5ms

Flow Factor Kv

1.2L/min

RoHS Status: Exempt

COO (Country of Origin):
FR
The Asco solenoid valve is a pinnacle of reliability and efficiency in the field of fluid control. Designed as a direct-operated, 3-way valve, it offers both normally closed and normally open configurations, thereby providing versatility for various applications. With the ISO 15218 interface, it seamlessly integrates with standard systems, ensuring straightforward installation. The AC/DC interchangeability feature of the solenoid operator eliminates the need for disassembly, enhancing maintenance ease and operational flexibility. Boasting a compact and lightweight design, this valve is particularly suited for mounting on subbases, making it ideal for space-constrained environments. The robust construction, featuring high-quality materials ensures durability, while adherence to EU directives ensures compliance with safety and environmental standards. Whether used in industrial automation or HVAC applications, this solenoid valve promises superior performance and dependability.

Compact design enhances installation flexibility in tight spaces

Manual operator included as a standard feature for easy override

AC/DC solenoid interchangeability allows for versatile use without valve disassembly

M12 connection options provide visual indication and improved safety

Robust construction guarantees long-lasting performance in demanding environments

Compliance with EU directives ensures adherence to safety standards

Available in pad-mounted versions to facilitate valve piloting applications

Flexible installation options support both single and joinable subbases
