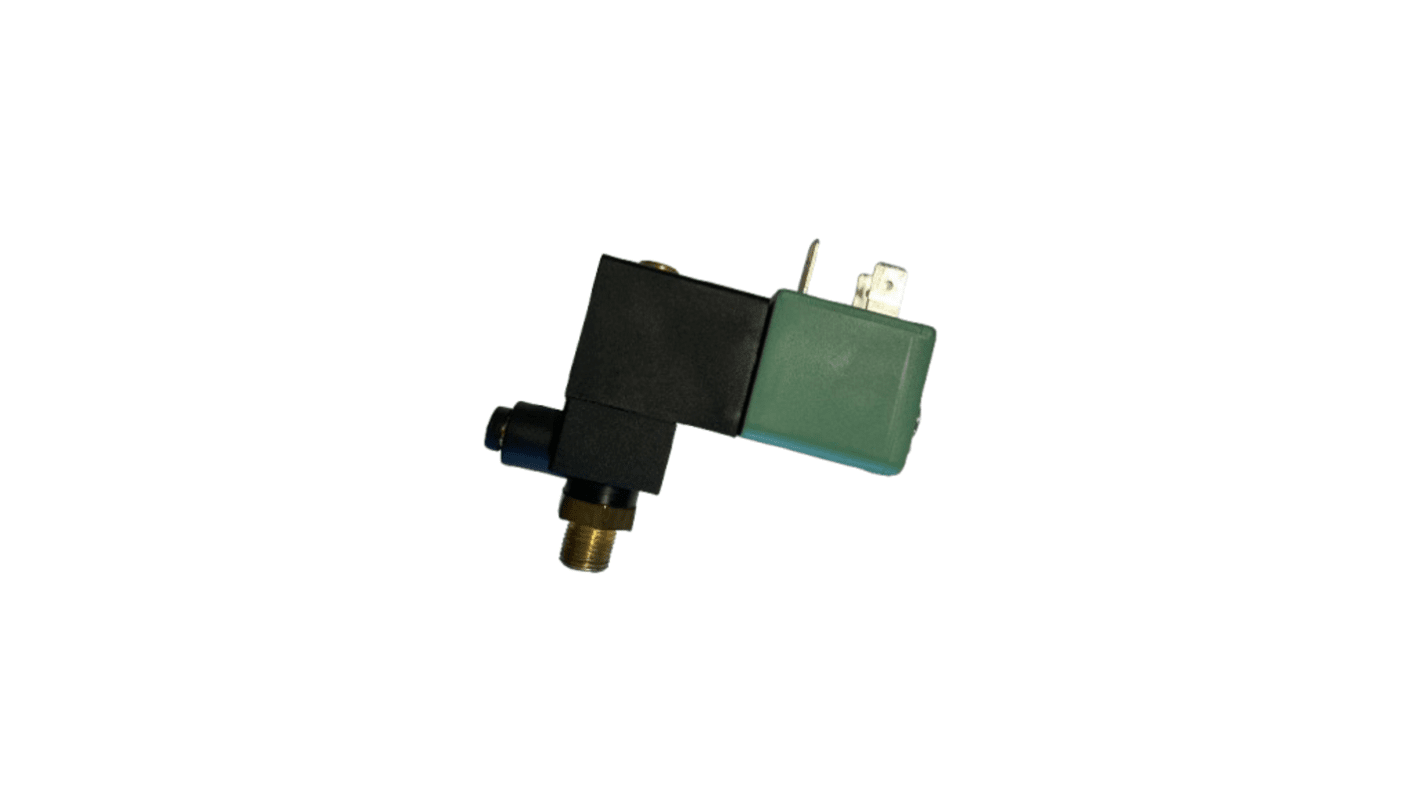

EMERSON ? ASCO Solenoid Valve 18900070.24/DC, 3 port(s) , NC, 24 V, 3/4in
- RS Stock No.:
- 432-389
- Mfr. Part No.:
- 18900070.24/DC
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£50.96
(exc. VAT)
£61.15
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £50.96 |
*price indicative
- RS Stock No.:
- 432-389
- Mfr. Part No.:
- 18900070.24/DC
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? ASCO | |
Supply Voltage | 24 V | |
Number of Ports | 3 | |
Connection Size | 3/4in | |
Connection | 3/4 in G | |
Operation | Direct | |
Default Valve Position | NC | |
Suitable Applications | Air, Inert Gas | |
Type | Solenoid | |
Orifice Diameter | 1.2mm | |
Body Material | Polyamide | |
Series | 189 | |
Maximum Working Pressure | 10 bar | |
Operating Temperature Range | -10 → +60 °C | |
Servo Assist | No | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +60°C | |
Thread Standard or Connection Type | G | |
Flow Factor Kv | 1.2L/min | |
Select all | ||
---|---|---|
Brand EMERSON ? ASCO | ||
Supply Voltage 24 V | ||
Number of Ports 3 | ||
Connection Size 3/4in | ||
Connection 3/4 in G | ||
Operation Direct | ||
Default Valve Position NC | ||
Suitable Applications Air, Inert Gas | ||
Type Solenoid | ||
Orifice Diameter 1.2mm | ||
Body Material Polyamide | ||
Series 189 | ||
Maximum Working Pressure 10 bar | ||
Operating Temperature Range -10 → +60 °C | ||
Servo Assist No | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Thread Standard or Connection Type G | ||
Flow Factor Kv 1.2L/min | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Asco Solenoid Valve represents an ideal solution for efficient control in various industrial applications. Built to ISO 15218 standards, this three-way, direct-operated valve boasts a compact and lightweight design, facilitating easy installation on both individual and joinable subbases. Its AC/DC interchangeable solenoid operator allows for seamless adaptability, while the robust construction ensures compliance with comprehensive EU directives for safety and reliability. With features like manual operation and enhanced electrical safety standards, this solenoid valve is perfect for demanding environments. The compatibility with both M12 and spade plug connections provides flexibility for diverse installation needs, ensuring that operational efficiency is maintained across various systems.
Exclusive pad-mount design for straightforward piloting
Rapid response times enhance system efficiency
Manual operator feature ensures reliability during outages
Compact construction offers versatility in cramped spaces
Robust materials guarantee longevity and performance
Multiple connector options accommodate various setups
Electrical enclosure protection meets rigorous standards
Designed for simple maintenance and trouble-free operation
Rapid response times enhance system efficiency
Manual operator feature ensures reliability during outages
Compact construction offers versatility in cramped spaces
Robust materials guarantee longevity and performance
Multiple connector options accommodate various setups
Electrical enclosure protection meets rigorous standards
Designed for simple maintenance and trouble-free operation
