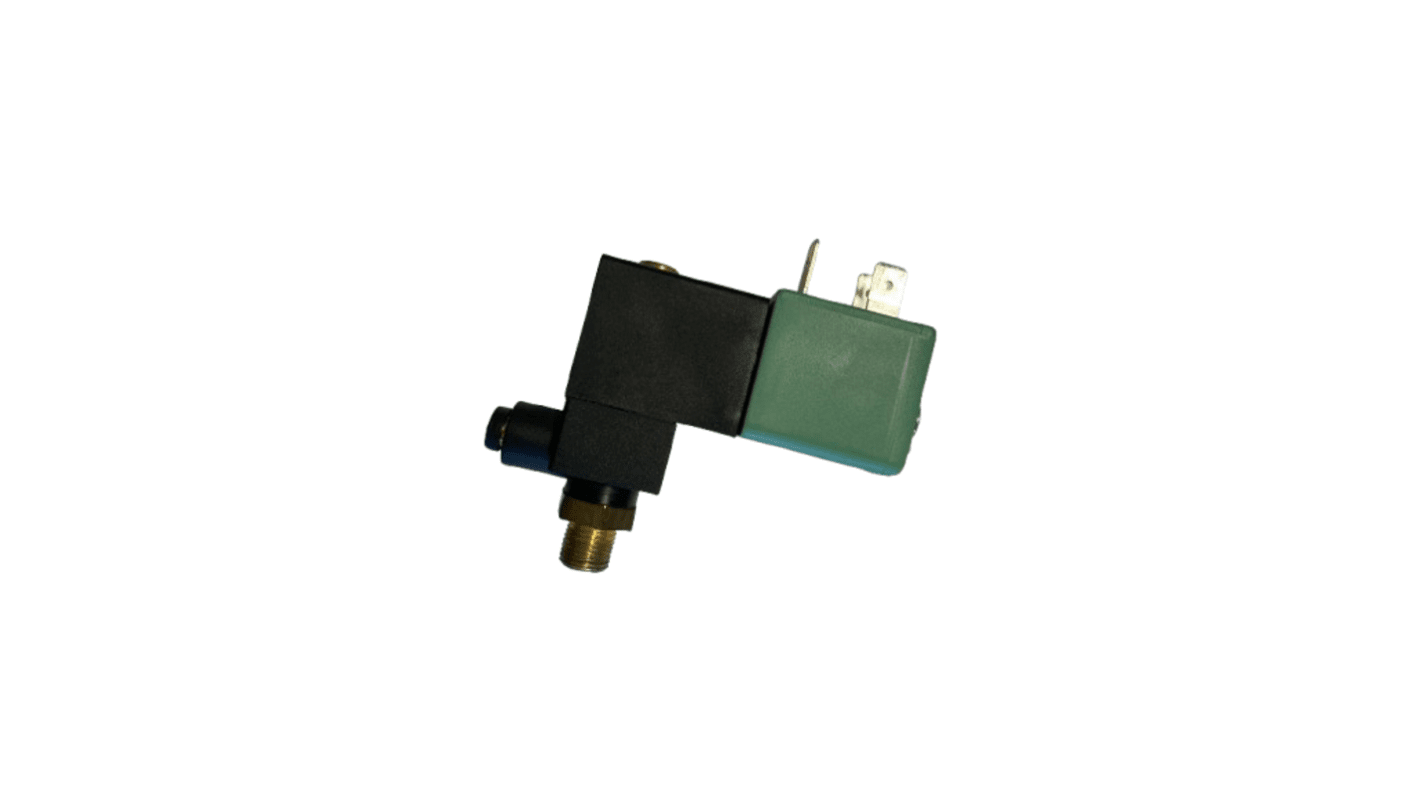

EMERSON ? ASCO Solenoid Valve 18900033.24/DC, 3 port(s) , NC, 24 V, 3/4in
- RS Stock No.:
- 432-380
- Mfr. Part No.:
- 18900033.24/DC
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£61.66
(exc. VAT)
£73.99
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £61.66 |
*price indicative
- RS Stock No.:
- 432-380
- Mfr. Part No.:
- 18900033.24/DC
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? ASCO | |
Supply Voltage | 24 V | |
Number of Ports | 3 | |
Connection Size | 3/4in | |
Connection | 3/4 in G | |
Operation | Direct | |
Default Valve Position | NC | |
Suitable Applications | Air, Inert Gas | |
Type | Solenoid | |
Orifice Diameter | 1.2mm | |
Series | 189 | |
Body Material | Polyamide | |
Maximum Working Pressure | 10 bar | |
Operating Temperature Range | -10 → +60 °C | |
Servo Assist | No | |
Minimum Operating Temperature | -10°C | |
Thread Standard or Connection Type | G | |
Maximum Operating Temperature | +60°C | |
Flow Factor Kv | 1.2L/min | |
Select all | ||
---|---|---|
Brand EMERSON ? ASCO | ||
Supply Voltage 24 V | ||
Number of Ports 3 | ||
Connection Size 3/4in | ||
Connection 3/4 in G | ||
Operation Direct | ||
Default Valve Position NC | ||
Suitable Applications Air, Inert Gas | ||
Type Solenoid | ||
Orifice Diameter 1.2mm | ||
Series 189 | ||
Body Material Polyamide | ||
Maximum Working Pressure 10 bar | ||
Operating Temperature Range -10 → +60 °C | ||
Servo Assist No | ||
Minimum Operating Temperature -10°C | ||
Thread Standard or Connection Type G | ||
Maximum Operating Temperature +60°C | ||
Flow Factor Kv 1.2L/min | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Asco solenoid valve is designed to provide reliable control in various applications, ensuring efficient performance and longevity. With a compact build and robust materials, it is suitable for direct operation, making installation a straightforward process. It conforms to industry standards, ensuring compatibility and safety in operation. Designed with flexibility in mind, this valve caters to diverse fluid handling needs, making it an ideal choice for users looking for high-quality and effective fluid control solutions. Its efficient electromagnetic design not only enhances performance but also ensures energy efficiency, contributing to optimal operational costs.
Offers AC/DC interchangeability for seamless operation across varied applications
Compact size allows for easy installation in tight spaces
Features a manual operator as standard for enhanced user control
Constructed with durable materials to withstand challenging environments
Satisfies all relevant EU directives, ensuring regulatory compliance
Available with various connector specifications to suit different installation needs
Provides flexible mounting options on joinable subbases for versatile setup
Compact size allows for easy installation in tight spaces
Features a manual operator as standard for enhanced user control
Constructed with durable materials to withstand challenging environments
Satisfies all relevant EU directives, ensuring regulatory compliance
Available with various connector specifications to suit different installation needs
Provides flexible mounting options on joinable subbases for versatile setup
