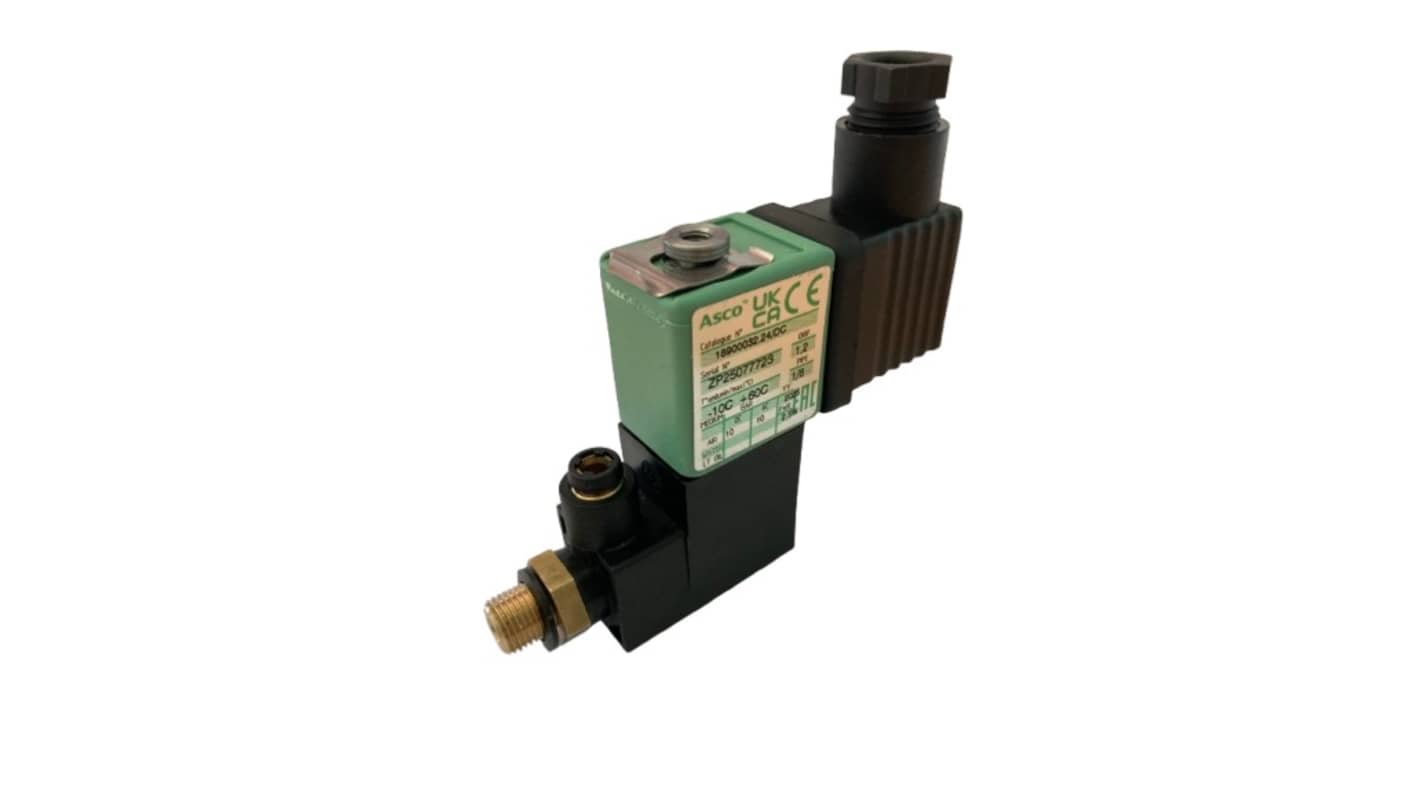

EMERSON ? ASCO Solenoid Valve 18900032.110/DC, 3 port(s) , NC, 110 V, 3/4in
- RS Stock No.:
- 432-377
- Mfr. Part No.:
- 18900032.110/DC
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£69.78
(exc. VAT)
£83.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £69.78 |
*price indicative
- RS Stock No.:
- 432-377
- Mfr. Part No.:
- 18900032.110/DC
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? ASCO | |
Supply Voltage | 110 V | |
Number of Ports | 3 | |
Connection Size | 3/4in | |
Connection | 3/4 in G | |
Operation | Direct | |
Default Valve Position | NC | |
Suitable Applications | Air, Inert Gas | |
Type | Solenoid | |
Orifice Diameter | 1.2mm | |
Body Material | Polyamide | |
Series | 189 | |
Maximum Working Pressure | 10 bar | |
Operating Temperature Range | -10 → +60 °C | |
Servo Assist | No | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -10°C | |
Thread Standard or Connection Type | G | |
Flow Factor Kv | 1.2L/min | |
Select all | ||
---|---|---|
Brand EMERSON ? ASCO | ||
Supply Voltage 110 V | ||
Number of Ports 3 | ||
Connection Size 3/4in | ||
Connection 3/4 in G | ||
Operation Direct | ||
Default Valve Position NC | ||
Suitable Applications Air, Inert Gas | ||
Type Solenoid | ||
Orifice Diameter 1.2mm | ||
Body Material Polyamide | ||
Series 189 | ||
Maximum Working Pressure 10 bar | ||
Operating Temperature Range -10 → +60 °C | ||
Servo Assist No | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
Thread Standard or Connection Type G | ||
Flow Factor Kv 1.2L/min | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Asco solenoid valve is designed to optimise performance in a variety of industrial applications. The solenoid valve features a compact and lightweight design, which allows for effortless installation on either single or joinable subbases. With a robust construction, it excels in maintaining reliable operation even under challenging conditions. The valve meets all relevant EU directives, ensuring compliance with safety and environmental standards. Its quick response time and efficient fluid control make it an ideal choice for critical processes, while the interchangeable solenoid operator offers flexibility for diverse operational needs.
Compact size allows for flexible installation in space-constricted environments
Low weight supports easy handling and assembly on various mounting configurations
Designed to operate effectively across a range of operating pressures
AC/DC interchangeability enhances adaptability across different energy systems
Offers manual operation as a standard feature for added control
Electrical enclosure is rated IP65 for protection against dust and water ingress
Coil insulation class F ensures reliable performance under thermal stress
Materials are chosen for compatibility with a variety of fluids
Low weight supports easy handling and assembly on various mounting configurations
Designed to operate effectively across a range of operating pressures
AC/DC interchangeability enhances adaptability across different energy systems
Offers manual operation as a standard feature for added control
Electrical enclosure is rated IP65 for protection against dust and water ingress
Coil insulation class F ensures reliable performance under thermal stress
Materials are chosen for compatibility with a variety of fluids
