Weller WXD 2010 Desoldering Station 255W, 230V, 50°C to 450°C

RS Stock No.:: 764-2888
Distrelec Article No.:: 301-65-829
Mfr. Part No.:: T0053428399N
Brand:: Weller

Weller WXD 2010 Desoldering Station 255W, 230V, 50°C to 450°C

Subtotal (1 unit)*

£1,232.03

(exc. VAT)

£1,478.44

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

5 unit(s) ready to ship
Plus 4 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,232.03

*price indicative

RS Stock No.:: 764-2888
Distrelec Article No.:: 301-65-829
Mfr. Part No.:: T0053428399N
Brand:: Weller

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Weller
	Model Number	WXD 2010
	Plug Type	Type F - Schuko plug, Type G - British 3-pin
	Tasks Supported	Desoldering / Soldering
	Primary Application Category	Desoldering
	Wattage	255W
	Input Voltage	230V
	Soldering Tip Temperature	450°C
	Output Power	240W
	Maximum Operating Temperature	450°C
	Number of Outputs	2
	Display Type	LCD
	ESD Safe	Yes

	Select all
	Brand Weller
	Model Number WXD 2010
	Plug Type Type F - Schuko plug, Type G - British 3-pin
	Tasks Supported Desoldering / Soldering
	Primary Application Category Desoldering
	Wattage 255W
	Input Voltage 230V
	Soldering Tip Temperature 450°C
	Output Power 240W
	Maximum Operating Temperature 450°C
	Number of Outputs 2
	Display Type LCD
	ESD Safe Yes

Datasheet

COO (Country of Origin):: MX

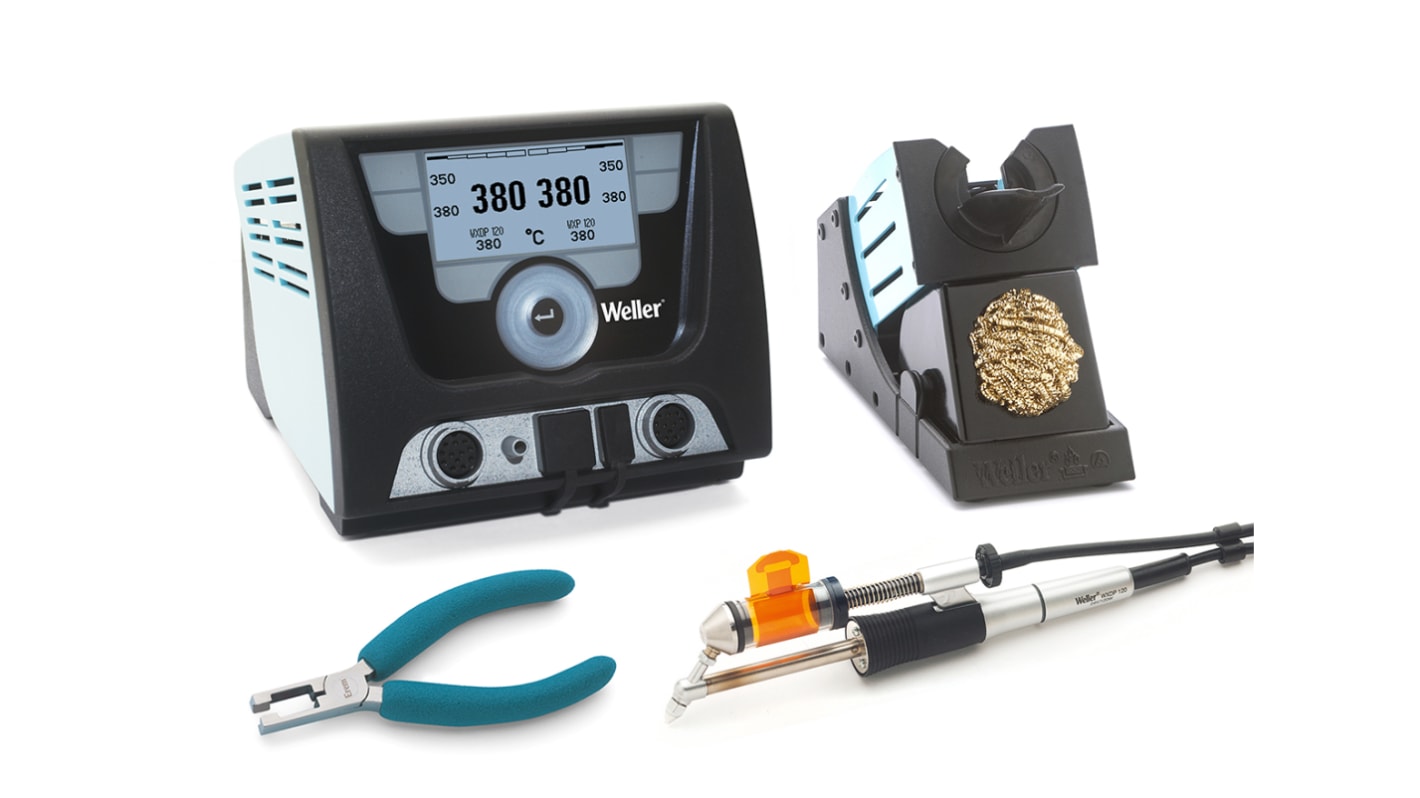

Weller WXD 2010 Soldering/Desoldering Station

Introducing the WXD 2010 Soldering and Desoldering Station from Weller. This professional 2-channel soldering station is supplied with WXDP 120 Desoldering Iron but it's also compatible with all WX series tools and has an output of 255W. The unit ensures maximum temperature stability and accuracy with a ±2ºC temperature stability and a temperature accuracy of ±9ºC. The Weller WXD 2 features a high-quality touchscreen display made of glass. From here you can choose your custom settings. There is also a click wheel and a confirm button, a USB port for parameter configuration and data logging. The USB port supports all standard USB sticks. The WXD 2 soldering station is also ESD safe so can be safely used with electronics. This soldering station is energy efficient and can help with cost savings. Featuring a sensor that monitors use, this soldering station will automatically adopt a standby mode when not in use. The WXD 2 also has a very low operating temperature of +380 °C compared to similar models with operating temperatures up to +550 °C.

Features and Benefits:

WXD 2 Control Unit:

• High Powered Dual Port Digital Power Unit, 120 V /240W

• Very fast heat-up time

• External compressed air supply

• Robust, chemical and temperature resistant glass touchscreen with multilingual menu

• Turn-and-click wheel with entering key

• 6 touch keys

• Automatic recognition of tool connected

• Multi-purpose USB port for data logging, configuration and updates

• Versatile Connectivity Options for soldering/desoldering irons, tweezers, heating plates, fume extraction, etc.

• Integrated Venturi unit that provides a constant vacuum when an external compressed air supply is connected

• A USB port and user-friendly interface allow easy firmware update and parameterisation options

• Digital LCD display making it easy to see the settings and readouts regardless of the environment

• ESD safe

WXDP 120 Desoldering Iron:

• Fast heat-up time in just 35s (150°C to 350°C)

• Vacuum ON/OFF finger button located on the soft-grip handle

• Bayonet fitting solder cartridge can be changed quickly and easily, minimising the risk of burns

• A long length of XDS nozzle and disposable solder cartridge remove the need for cleaning

• Energy-saving motion sensor ensures that power is only used when the tool is in use

• Supplied complete with WDH 70 safety stand

The set contains:

• WXD 2 Power Unit,

• WXDP 120 desoldering iron and a safety rest

• British 3 pin BS 1363 & European 2 pin CEE 7/16 plugs

Typical Applications:

Soldering / Desoldering Stations are used to work and rework solder in all manner of applications, particularly in repairing or building PCB circuit boards with SMD and through-hole components. They are commonly used in electronic prototyping and production, and any application where a circuit board component might have to be removed or adjusted. Soldering / Desoldering Station are often used by:

• Engineers

• Electricians

• Metalworkers

• Jewellers

• Home inventors

FAQs:

Is this soldering station ESD safe?

Yes, this soldering station is ESD safe. While glass can build up a static charge, the integrated glass display on this soldering station is completely ESD safe.

Can I use other tools and soldering irons (other than supplied) with this station?

Yes, this soldering station is compatible with tools in the WX series from Weller, including a range of soldering irons, desoldering irons and desoldering tweezers. Further accessories such as heating plates, solder baths and solder fume extractors are available. These are controlled from the main power unit.

Can I use the desoldering iron horizontally and vertically?

The WXDP 120 desoldering iron supplied with the station is only suitable for horizontal applications. The WXDV 120 model can be used for vertical application but is sold separately. See 801-4741 (without stand) or 801-4748 (with stand).

Does it display temperature in Centigrade and Fahrenheit?

Within the menu navigation, you are able to make your choice of the temperature scale.
