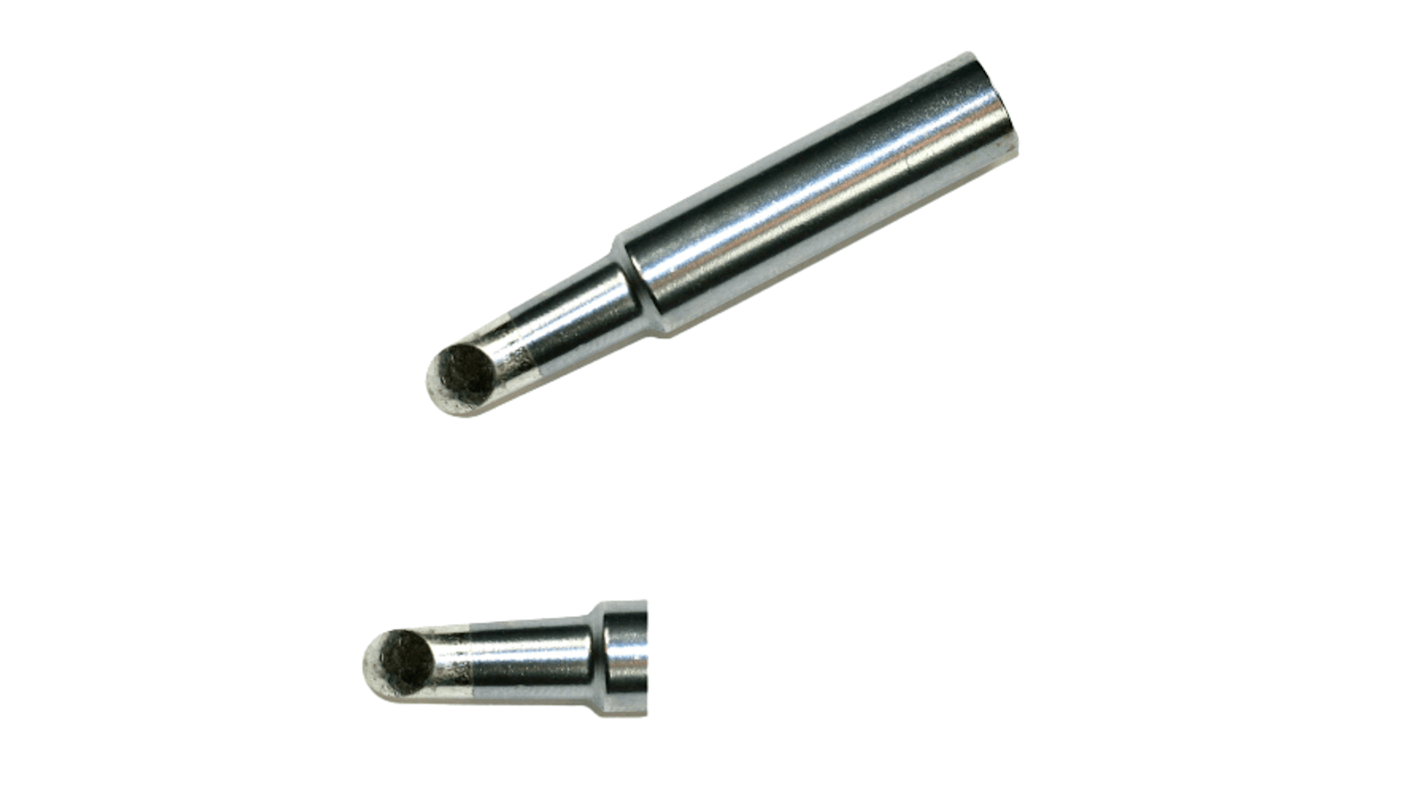

Hakko FR702 4 mm Bevel 14.5 mm Soldering Iron Tip for use with Hakko 937, Hakko FX-888 Soldering Station, Hakko 928,
- RS Stock No.:
- 237-7089
- Mfr. Part No.:
- T18-C4
- Brand:
- Hakko
Subtotal (1 pair of 1 unit)*
£5.91
(exc. VAT)
£7.09
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 19 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pair(s) | Per Pair |
|---|---|
| 1 + | £5.91 |
*price indicative
- RS Stock No.:
- 237-7089
- Mfr. Part No.:
- T18-C4
- Brand:
- Hakko
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hakko | |
| Product Type | Soldering Iron Tip | |
| Tip Shape | Bevel | |
| Model Number | FR702 | |
| For Use With | Hakko 937, Hakko FX-888 Soldering Station, Hakko 928, Hakko 703 Soldering Station, Hakko 936, Hakko 907-ESD, Hakko 907, Hakko 936-ESD, Hakko 913 ESD Safe Fume Extraction Iron, Hakko 900M Soldering Iron and Hakko 900M-ESD | |
| Tip Series | T18 | |
| Tip Angle | 45° | |
| Tip Width | 4 mm | |
| Tip Length | 14.5mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Hakko | ||
Product Type Soldering Iron Tip | ||
Tip Shape Bevel | ||
Model Number FR702 | ||
For Use With Hakko 937, Hakko FX-888 Soldering Station, Hakko 928, Hakko 703 Soldering Station, Hakko 936, Hakko 907-ESD, Hakko 907, Hakko 936-ESD, Hakko 913 ESD Safe Fume Extraction Iron, Hakko 900M Soldering Iron and Hakko 900M-ESD | ||
Tip Series T18 | ||
Tip Angle 45° | ||
Tip Width 4 mm | ||
Tip Length 14.5mm | ||
Standards/Approvals No | ||
T18 Series Replacement Soldering Tips
These T18 Series Soldering Tips from Hakko are for use with the Hakko FX888D Soldering Station and offer improved heat conduction for more efficient heat transfer.
Shape BC/C
Used for pre-tinning lead wires and drag soldering. This tip type is shaped like a cone/column which is cut at an angle allowing users to choose the cut surface size according to work piece.
Shape B
All-round tip type that can be used from any angle; for soldering any surface, large and small.
Shape D
This tip type is shaped similarly to a flat-blade screwdriver and can be used on tip line or tip face; suitable for any soldering work.
Shape K
Shaped similarly to a knife, this tip type can be used in three ways: line, point and face. Excellent for soldering at narrow pitches; also suitable for correcting bridging and drag soldering.
