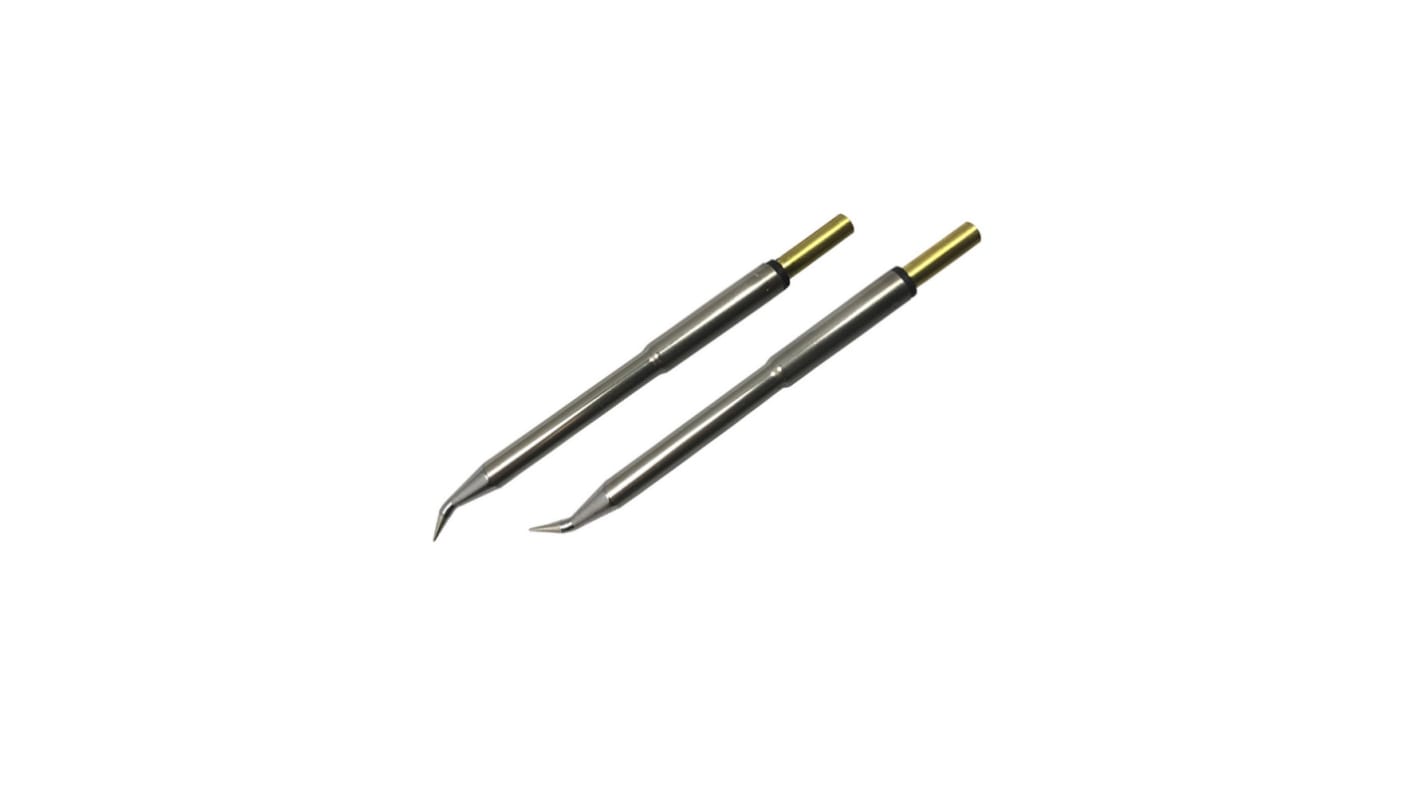

Metcal 14.3 mm Bent Conical 14.3 mm Soldering Iron Tip for use with MX‐500, MX‐5200, MX‐5000, CV‐5200
- RS Stock No.:
- 182-7723
- Mfr. Part No.:
- PTC-7CN1404A
- Brand:
- Metcal
Subtotal (1 pair)*
£88.76
(exc. VAT)
£106.51
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 7 unit(s) shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pair(s) | Per Pair |
|---|---|
| 1 + | £88.76 |
*price indicative
- RS Stock No.:
- 182-7723
- Mfr. Part No.:
- PTC-7CN1404A
- Brand:
- Metcal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Metcal | |
| Tip Shape | Bent Conical | |
| Product Type | Soldering Iron Tip | |
| For Use With | MX‐500, MX‐5200, MX‐5000, CV‐5200 | |
| Tip Series | 7CN | |
| Tip Angle | 30° | |
| Tip Width | 14.3 mm | |
| Tip Length | 14.3mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Metcal | ||
Tip Shape Bent Conical | ||
Product Type Soldering Iron Tip | ||
For Use With MX‐500, MX‐5200, MX‐5000, CV‐5200 | ||
Tip Series 7CN | ||
Tip Angle 30° | ||
Tip Width 14.3 mm | ||
Tip Length 14.3mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- US
Metcal PTC Tweezer Solder Tips / Soldering Tips / Tweezer Tip Cartridges.
PTC-tweezer-tip cartridges are the standard tweezer-tip range for the Metcal CV-5200, CV-500, MX-500, MX-5000 and MX-5200 series soldering systems.
All cartridges are available in 3 temperature ranges.
The temperature/series is designated by the by the first digit in the numerical part of the part number:
Metcal recommends the 700-series for many general applications.
800/900-series for high temperature and thermally demanding applications.
Can be used with leaded and lead-free solder. The Metcal “SmartHeat®-Technology“ will adjust delivered power during soldering to suit the application.
PTC series will remove chips and SOIC-components.
Suitable for:
CV-5200, CV-500, MX-500, MX-5000, MX-5200, precision tweezer CV-H4-PTZ, MX-PTZ, tweezer-kit CV-UK4, MX-UK4.
