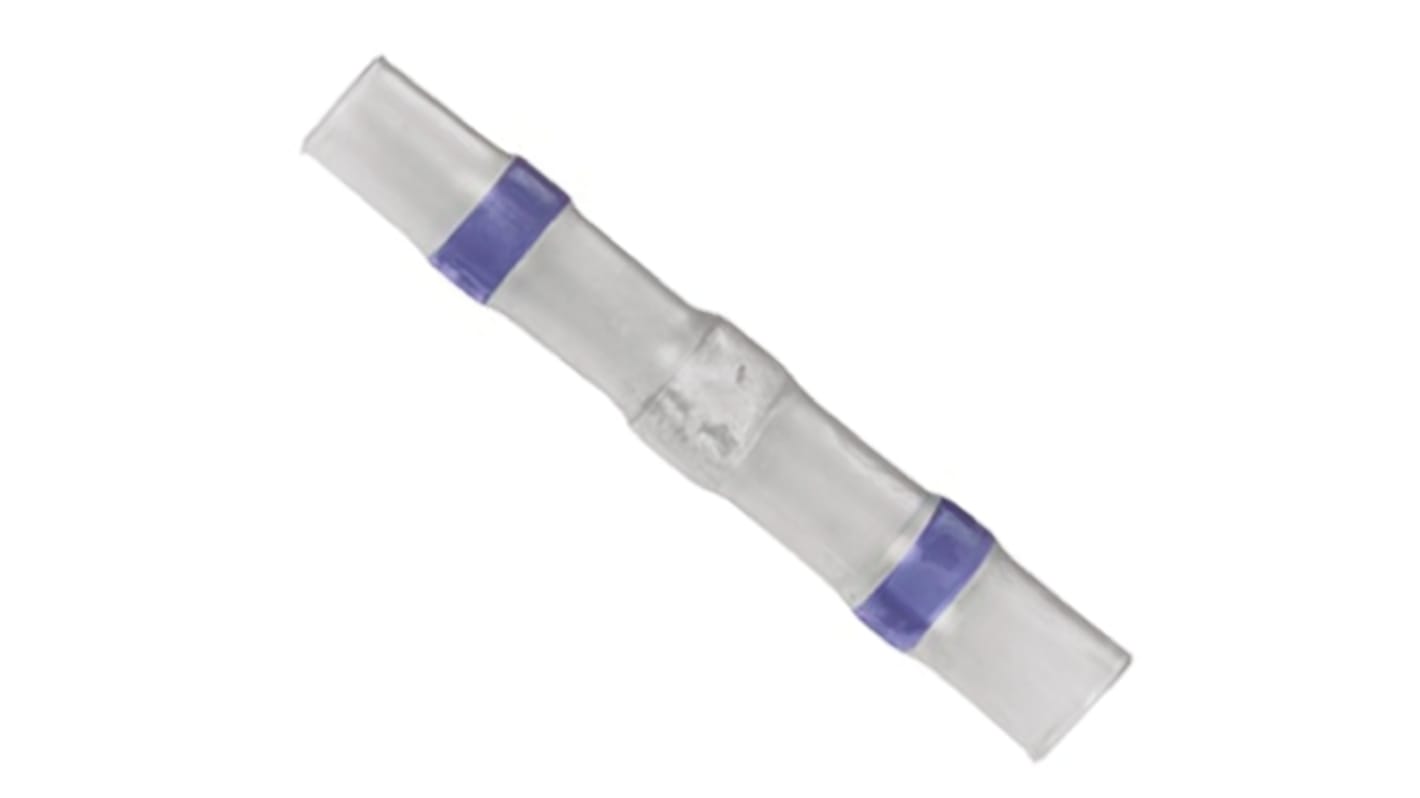

TE Connectivity Blue Polyolefin Solder Sleeve 42mm Length 4.5 mm Cable Diameter 0.3 mm Cable Diameter
- RS Stock No.:
- 781-2683
- Mfr. Part No.:
- CWT-9003
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£1.25
(exc. VAT)
£1.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 14 | £1.25 |
| 15 - 49 | £1.19 |
| 50 + | £1.14 |
*price indicative
- RS Stock No.:
- 781-2683
- Mfr. Part No.:
- CWT-9003
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Solder Sleeve | |
| Sub Type | Terminator | |
| Sleeve Length | 42mm | |
| Material | Polyolefin | |
| Dielectric Strength | 2kV | |
| Voltage | 2 mV | |
| Minimum Cable Diameter | 0.3mm | |
| Maximum Cable Diameter | 4.5mm | |
| Colour | Blue | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | ANSI/J-STD-004, ANSI/J-STD-006 | |
| Shrink Temperature | 65°C | |
| Series | CWT-900X | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Solder Sleeve | ||
Sub Type Terminator | ||
Sleeve Length 42mm | ||
Material Polyolefin | ||
Dielectric Strength 2kV | ||
Voltage 2 mV | ||
Minimum Cable Diameter 0.3mm | ||
Maximum Cable Diameter 4.5mm | ||
Colour Blue | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals ANSI/J-STD-004, ANSI/J-STD-006 | ||
Shrink Temperature 65°C | ||
Series CWT-900X | ||
Non Compliant
Low temperature Solder Sleeves
Transparent Insulation Sleeve
Provides Encapsulation, Inspectability, Strain Relief and Insulation
Heat shrinkable, radiation cross linked modified polyolefin
Thermally stabilized thermoplastic
Applications: Designed to splice tin plated or bare copper stranded wires
