Chauvin Arnoux 1 % Remote Unit 1400 A 1000V
- RS Stock No.:
- 274-1319
- Mfr. Part No.:
- P01102184
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£745.35
(exc. VAT)
£894.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £745.35 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 274-1319
- Mfr. Part No.:
- P01102184
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Product Type | Remote Unit | |
| Current Accuracy | 1 % | |
| Voltage Accuracy | 1 % | |
| Maximum Current Measurement | 1400A | |
| Maximum Voltage Measurement | 1000V | |
| Minimum Current Measurement | 1A | |
| Minimum Voltage | 3V | |
| Width | 120mm | |
| Height | 63mm | |
| Length | 160mm | |
| Better World Product | Yes | |
| Better World Claim | Renewable Energy Solution | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -20°C | |
| Standards/Approvals | EN60904-5, EN61557-4, EN61557-2, EN62446, CEI64-8, EN60891, EN61724, CEI82-25 | |
| Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Product Type Remote Unit | ||
Current Accuracy 1 % | ||
Voltage Accuracy 1 % | ||
Maximum Current Measurement 1400A | ||
Maximum Voltage Measurement 1000V | ||
Minimum Current Measurement 1A | ||
Minimum Voltage 3V | ||
Width 120mm | ||
Height 63mm | ||
Length 160mm | ||
Better World Product Yes | ||
Better World Claim Renewable Energy Solution | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -20°C | ||
Standards/Approvals EN60904-5, EN61557-4, EN61557-2, EN62446, CEI64-8, EN60891, EN61724, CEI82-25 | ||
- COO (Country of Origin):
- IT

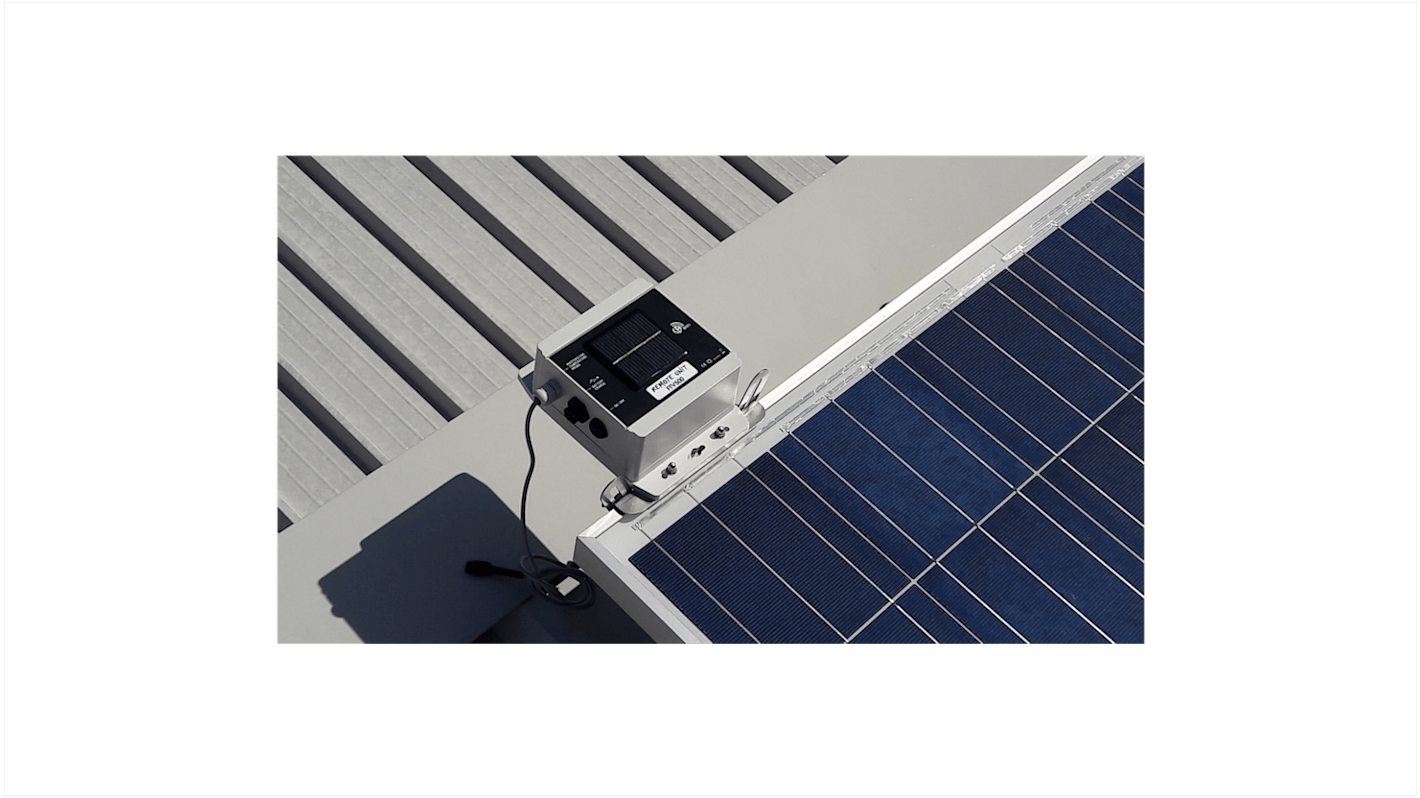

Remote unit of the PHOTOVOLTAIC TESTER FTV500
The remote unit of the FTV500 photovoltaic tester (274-1323) collects readings of environmental parameters (irradiation, ambient/module temperature) in real time and then uses them to analyse the results. Using WiFi technology, the remote unit transmits data to the instrument from up to 200 m away in an open field and, if the transmission signal is interrupted, it allows the instrument to function as a data logger, storing the acquired measurements before resynchronising them and transmitting them back to the instrument when conditions return to normal. A patented mounting system offers installation stability and measurement reliability.
Useful accessory for the FTV500 Photovoltaic Tester (274-1323)
