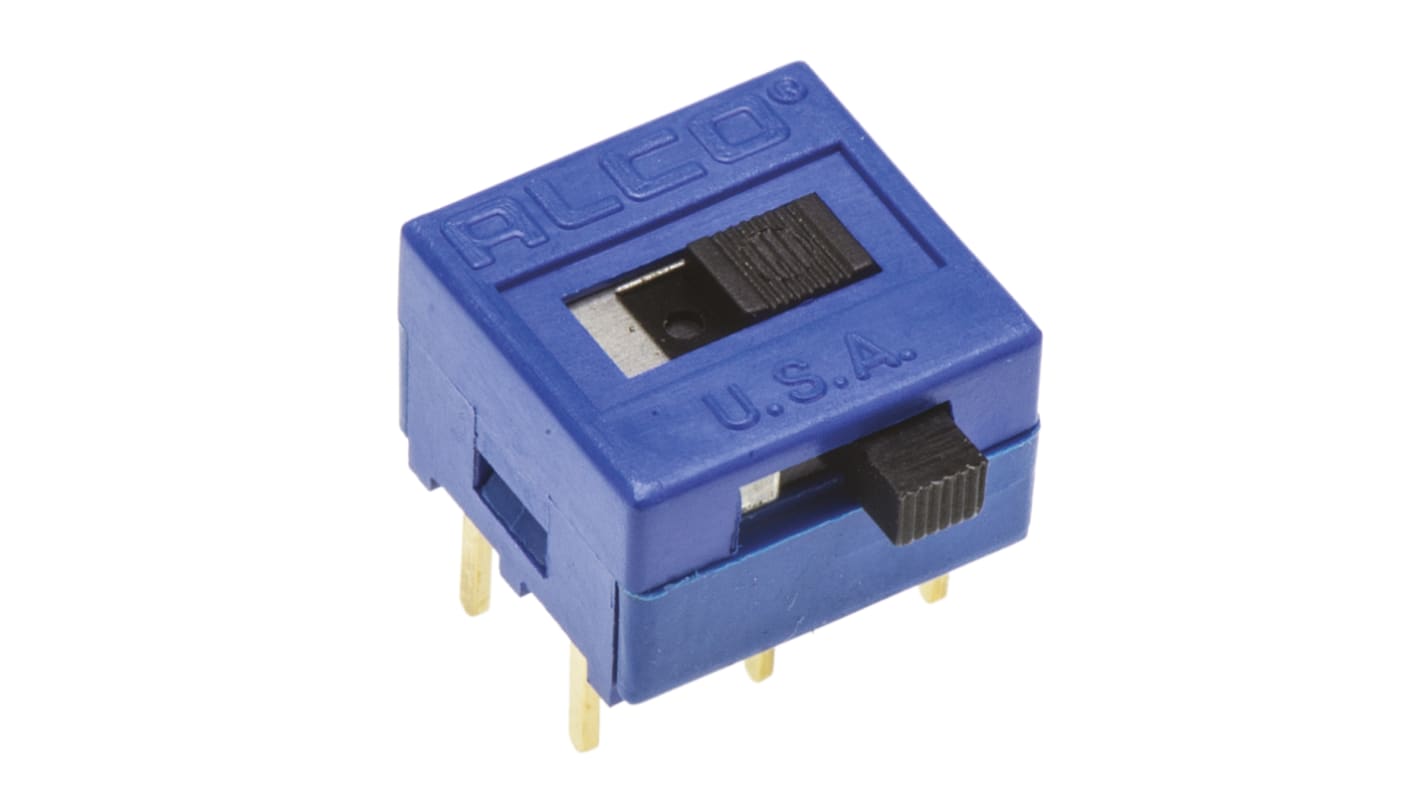

TE Connectivity PCB Slide Switch DPDT Latching 400 mA @ 20 V Slide
- RS Stock No.:
- 164-7790
- Mfr. Part No.:
- 5-1437580-0
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 164-7790
- Mfr. Part No.:
- 5-1437580-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB | |
| Switch Operation | Latching | |
| Contact Current Rating | 400 mA @ 20 V | |
| Terminal Type | Through Hole | |
| Actuator Type | Slide | |
| Length | 11.94mm | |
| Width | 11.43mm | |
| Dimensions | 11.94 x 11.43mm | |
| Contact Resistance | 20mΩ | |
| Mechanical Life | 30000Operations | |
| Voltage Rating | 20V | |
| Operating Temperature Range | -20 → +65°C | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +65°C | |
| Actuator Material | PPS | |
| Contact Material | Gold | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Contact Configuration DPDT | ||
Mounting Type PCB | ||
Switch Operation Latching | ||
Contact Current Rating 400 mA @ 20 V | ||
Terminal Type Through Hole | ||
Actuator Type Slide | ||
Length 11.94mm | ||
Width 11.43mm | ||
Dimensions 11.94 x 11.43mm | ||
Contact Resistance 20mΩ | ||
Mechanical Life 30000Operations | ||
Voltage Rating 20V | ||
Operating Temperature Range -20 → +65°C | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +65°C | ||
Actuator Material PPS | ||
Contact Material Gold | ||
- COO (Country of Origin):
- US
TE Connectivity Slide Switches - MSSA Series
Make-before-break timing
Tin finish steel frame and phenolic terminal board
Tin finish steel frame and phenolic terminal board
