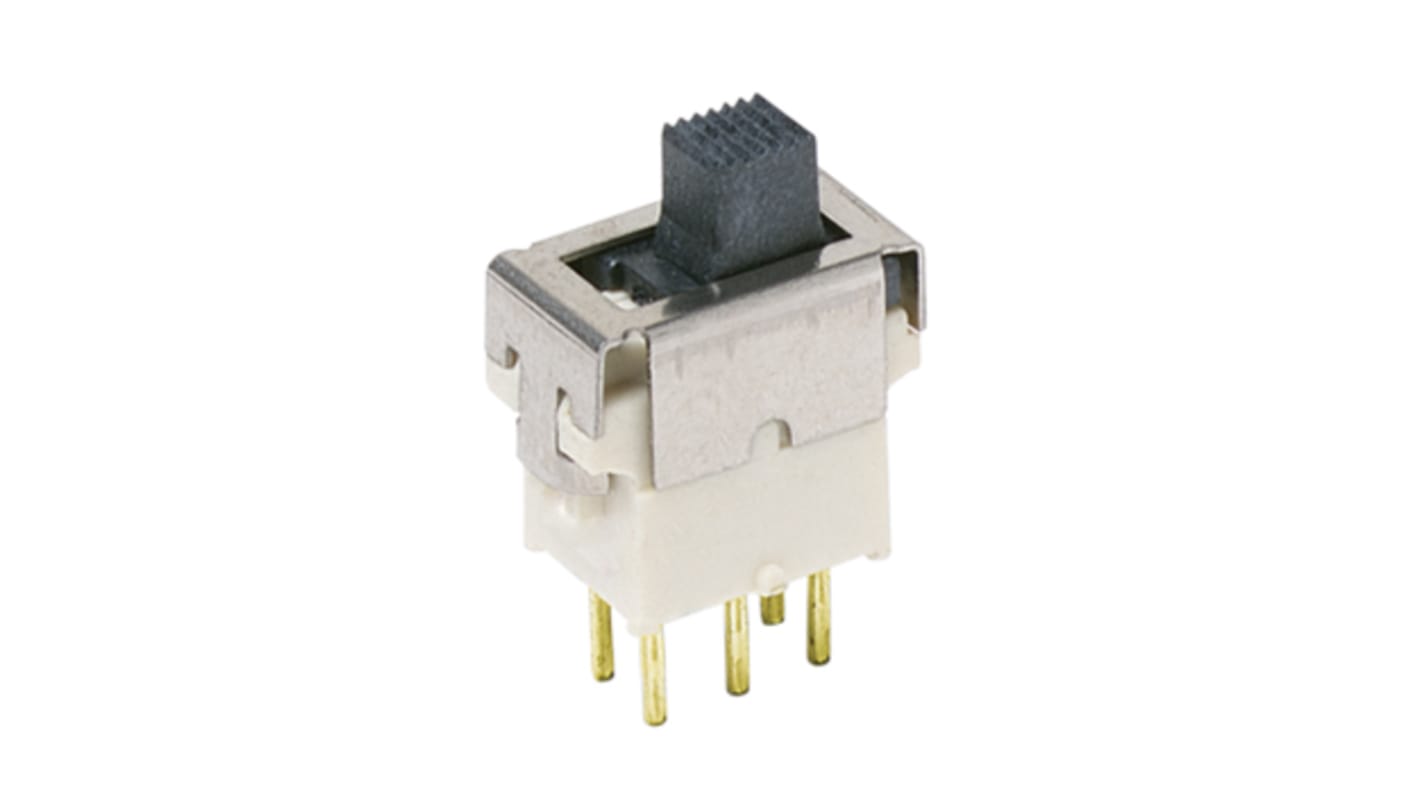

C & K IP57 Surface Slide Switch SPST Latching Liquid Crystal Polymer
- RS Stock No.:
- 153-4113
- Mfr. Part No.:
- ES02MSABE
- Brand:
- C & K
Subtotal (1 reel of 300 units)*
£1,769.10
(exc. VAT)
£2,122.80
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 300 + | £5.897 | £1,769.10 |
*price indicative
- RS Stock No.:
- 153-4113
- Mfr. Part No.:
- ES02MSABE
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Product Type | Slide Switch | |
| Contact Configuration | SPST | |
| Mount Type | Surface | |
| Switch Operation | Latching | |
| IP Rating | IP57 | |
| Terminal Type | Gull Wing | |
| Illuminated | No | |
| Contact DC Voltage | 20V dc | |
| Contact AC Voltage | 20V ac | |
| Switch Configuration | Off-None-On | |
| Standards/Approvals | RoHS, UL | |
| Depth | 12.21mm | |
| Length | 10.03mm | |
| Series | ES | |
| Mechanical Life | 40000Cycles | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 85°C | |
| Actuator Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Product Type Slide Switch | ||
Contact Configuration SPST | ||
Mount Type Surface | ||
Switch Operation Latching | ||
IP Rating IP57 | ||
Terminal Type Gull Wing | ||
Illuminated No | ||
Contact DC Voltage 20V dc | ||
Contact AC Voltage 20V ac | ||
Switch Configuration Off-None-On | ||
Standards/Approvals RoHS, UL | ||
Depth 12.21mm | ||
Length 10.03mm | ||
Series ES | ||
Mechanical Life 40000Cycles | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Actuator Material Liquid Crystal Polymer | ||
Process compatible internal o-ring and epoxy base seal
Reliable contact design ensures long electrical life
Robust actuator for easy actuation
Computer peripherals & network products
Test & measurement equipment
Telecom
