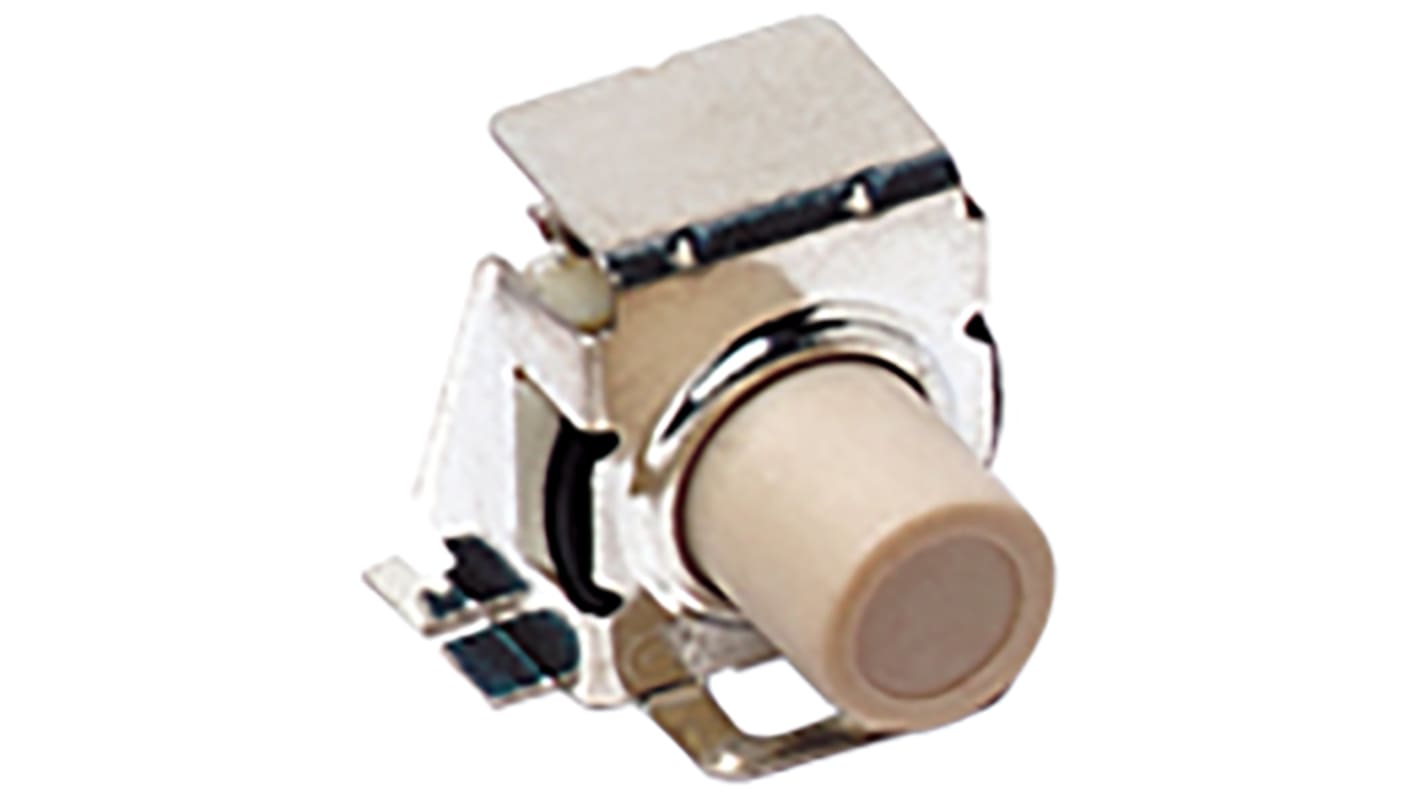

C & K IP57 Tactile Switch, 2.36 mm, SPST, Surface Mount
- RS Stock No.:
- 176-9540
- Mfr. Part No.:
- KT11P2SA2M34 LFS
- Brand:
- C & K
Subtotal (1 pack of 5 units)*
£12.29
(exc. VAT)
£14.75
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 25 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £2.458 | £12.29 |
*price indicative
- RS Stock No.:
- 176-9540
- Mfr. Part No.:
- KT11P2SA2M34 LFS
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPST | |
| Product Type | Tactile Switch | |
| Terminal Type | Surface Mount | |
| Switch Operation | Momentary | |
| Length | 7.11mm | |
| Actuator Length | 2.36mm | |
| Illuminated | No | |
| Mount Type | Surface Mount | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| IP Rating | IP57 | |
| Operating Force | 3N | |
| Height | 0.85mm | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Product Type Tactile Switch | ||
Terminal Type Surface Mount | ||
Switch Operation Momentary | ||
Length 7.11mm | ||
Actuator Length 2.36mm | ||
Illuminated No | ||
Mount Type Surface Mount | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
IP Rating IP57 | ||
Operating Force 3N | ||
Height 0.85mm | ||
C&K’s KT series full SMT TOP and side actuated sealed tact switch has a high shear force with an extended bracket that gives it a long operating life. This feature, along with the KT’s G or J terminations, makes it Ideal for computer, instrumentation and power supply applications.
Full SMT side-actuated tact switch
SMT top-actuated tact switch with G or J terminations
High shear force with extended bracket
Easy to pick & place with TOP plate tab
Rubber or hard plastic actuator
Press fit or snap fit caps
Typical Applications
Telecommunications
Computer products
Instrumentation
Power supply
