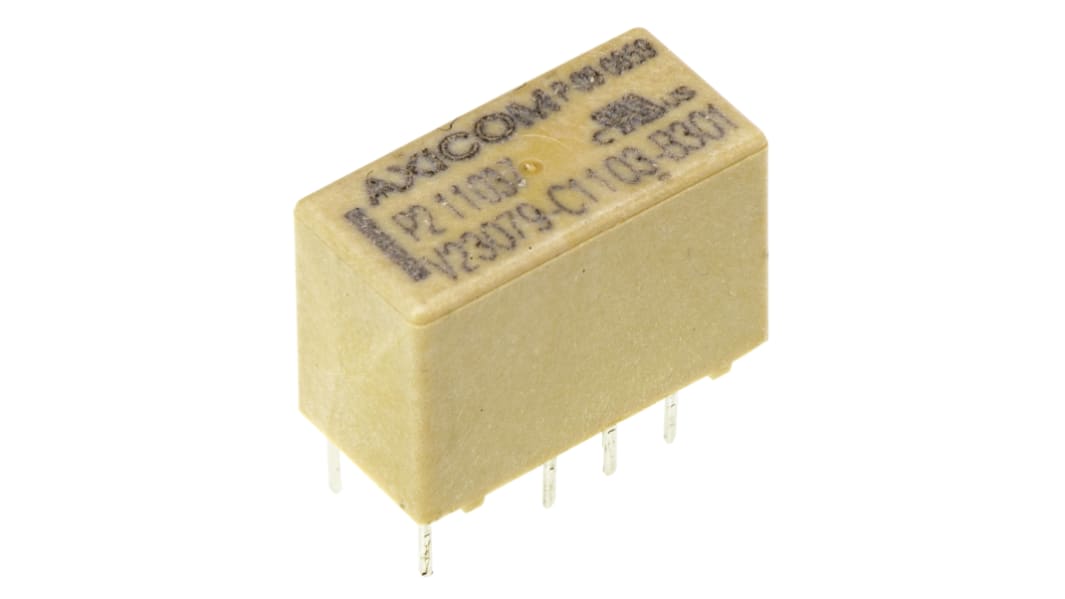

TE Connectivity PCB Signal Relay, 12 V dc Coil, 2 A, DPDT

View all Signal Relays

Subtotal (1 unit)*

£3.99

(exc. VAT)

£4.79

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 +£3.99

*price indicative

Packaging Options:
RS Stock No.:
718-1838
Distrelec Article No.:
301-28-927
Mfr. Part No.:
V23079C1103B301
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Coil Voltage

12 V dc

Product Type

Signal Relay

Contact Configuration

DPDT

Mount Type

PCB

Switching Current

2 A

Switching AC Voltage

250 V ac

Switching DC Voltage

220 V dc

Series

Axicom

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS

Width

7.2 mm

Height

9.8mm

Length

14.5mm

Terminal Type

Solder

Coil Power

140mW

Coil Resistance

1029Ω

Contact Material

Gold Plated

Miniature Relay P2 V23079 Series


From TE Connectivity, the P2 V23079 Series of standard telecom relays are high sensitivity, resulting in a low power consumption. Slimline and low profile, P2 V23079 Series signal relays are Ideal for when space saving is a priority.

Features and Benefits:


• 2 pole polarised telecom and signal relay

• Bifurcated contacts, gold plated

• Immersion cleanable, RTIII, IP67

• V-0 flammability classification

• Insulation resistance at 500Vdc >10⁹Ω

• Surge capability meets Telcordia TR-NWT-001089 (2 / 10 μs) and IEC 60950 (10 / 700 μs), 2000V between open contacts and 2500V between Coil and contacts

Applications:


• Communications equipment (ringing and test access, PABX and VOIP)

• Consumer electronics (Set Top Boxes & HiFi)

• Office equipment

• Control equipment

• Medical equipment

• Automotive equipment

Approvals

UL
