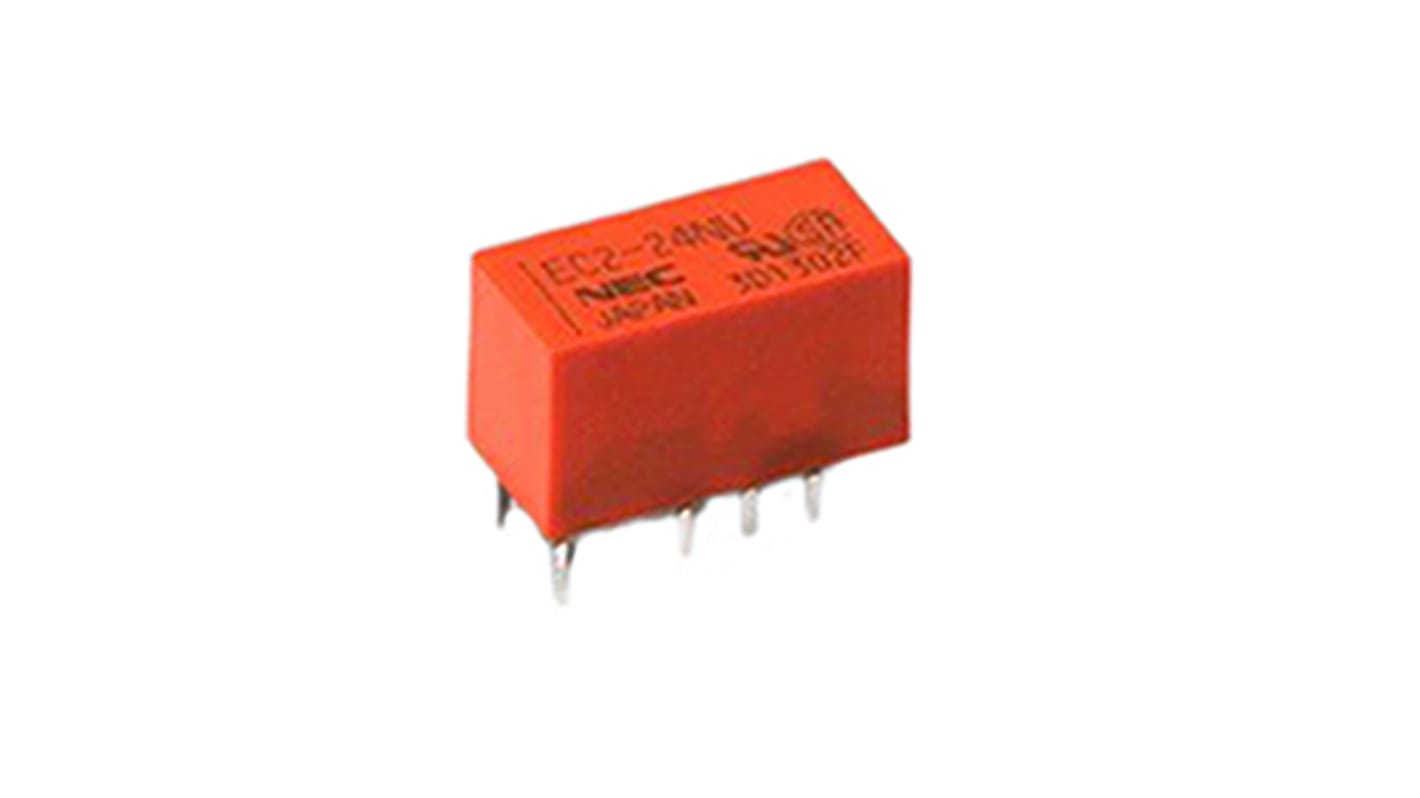

KEMET PCB Mount Latching Signal Relay, 12V dc Coil, 2A Switching Current, DPDT

View all Signal Relays

Subtotal (1 pack of 10 units)*

£16.07

(exc. VAT)

£19.28

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,990 unit(s) shipping from 12 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£1.607£16.07

*price indicative

RS Stock No.:
870-5356
Mfr. Part No.:
EC2-12TNU
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Coil Voltage

12V dc

Contact Configuration

DPDT

Mounting Type

PCB Mount

Maximum Switching Current AC

2 A

Maximum Switching Current DC

2 A

Maximum Switching Voltage AC

250V

Maximum Switching Voltage DC

220V

Maximum Switching Power DC

60 W

Series

EC2

Latching

Yes

Length

15mm

Depth

7.5mm

Height

9.4mm

Dimensions

15 x 7.5 x 9.4mm

Terminal Type

Through Hole

Switching Current

2A

Application

Electronic Switching Systems, PBX, Telecommunications, Terminal Equipment

Number of Poles

2

Contact Material

Gold Plated

Maximum Operating Temperature

+85°C

Isolation Coil To Contact

1kV ac

Standards Met

CSA, UL Recognized E73266

Relay Switching Classification

Latching Relay

Coil Power

140mW

Maximum Switching Power AC

125VA

Coil Resistance

1028Ω

Minimum Operating Temperature

-40°C

Features

Compact and Lightweight, Low Magnetic Interference, Low Power Consumption

Operating Temperature Range

-40 → +85°C

COO (Country of Origin):
JP

Kemet EC2 Series Miniature Signal Relays


Kemet EC2 miniature signal relays are compact and slim, consuming minimal board space with a through-hole configuration. The EC2 series offer low power consumption and a high breakdown voltage which make the range suitable for electronic switching, PBX and terminal equipment.

Double Coil Latching
Low power consumption
Compact and lightweight
Low magnetic interference
High Breakdown Voltage
