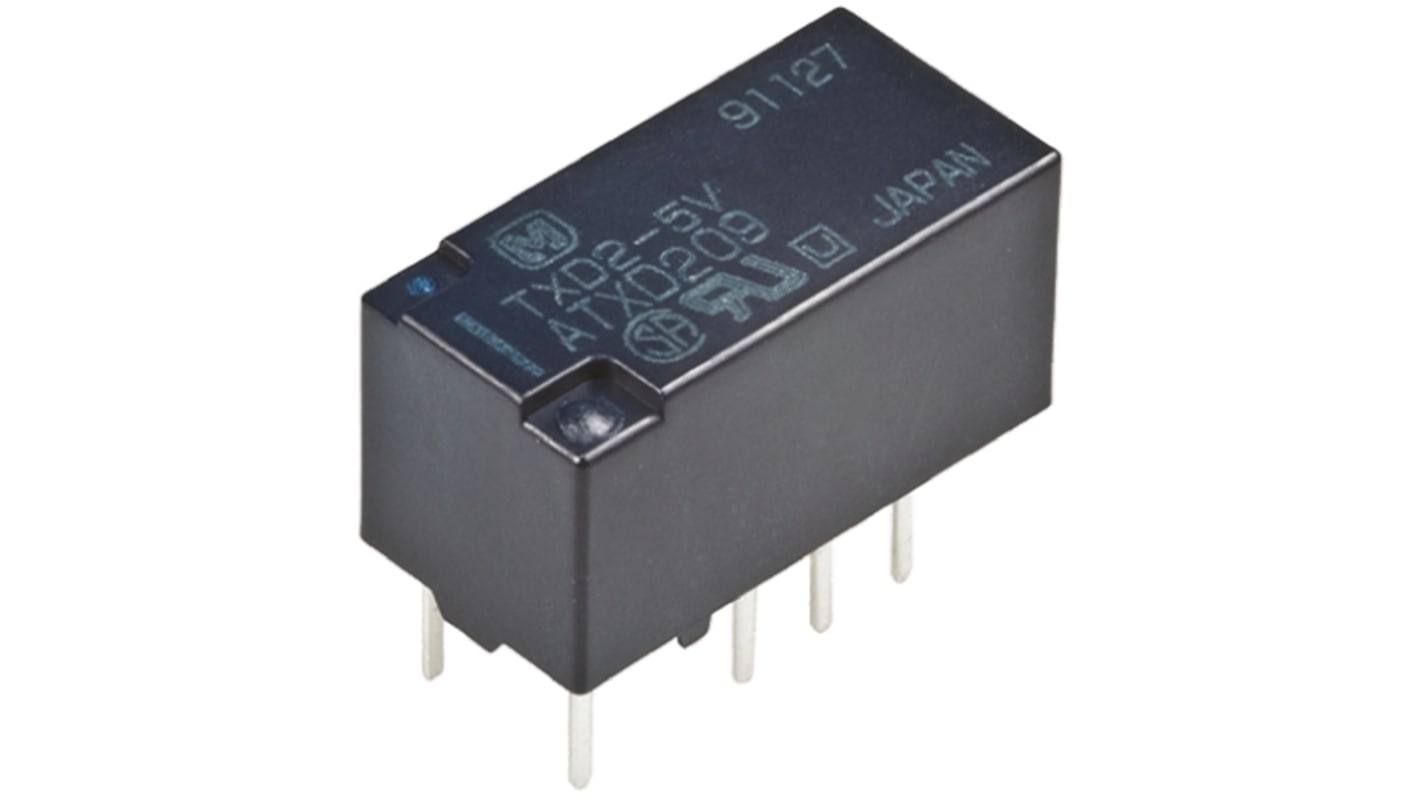

Panasonic PCB Mount Latching Signal Relay, 12V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 699-6405
- Mfr. Part No.:
- TXD2L12
- Brand:
- Panasonic
Discontinued
- RS Stock No.:
- 699-6405
- Mfr. Part No.:
- TXD2L12
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 12V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current DC | 7.5 A | |
| Maximum Switching Voltage DC | 220V dc | |
| Maximum Switching Power DC | 60 W | |
| Length | 15mm | |
| Latching | Yes | |
| Depth | 7.4mm | |
| Height | 8.2mm | |
| Dimensions | 15 x 8.2 x 7.4mm | |
| Terminal Type | Through Hole | |
| Application | Automotive | |
| Switching Current | 2A | |
| Contact Material | Gold Plated | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Isolation Coil To Contact | 2kV rms | |
| Coil Power | 230mW | |
| Operating Temperature Range | -40 → +85°C | |
| Coil Resistance | 626Ω | |
| Life | 100000000 (Mechanical) cycles | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Maximum Switching Current DC 7.5 A | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Power DC 60 W | ||
Length 15mm | ||
Latching Yes | ||
Depth 7.4mm | ||
Height 8.2mm | ||
Dimensions 15 x 8.2 x 7.4mm | ||
Terminal Type Through Hole | ||
Application Automotive | ||
Switching Current 2A | ||
Contact Material Gold Plated | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 2kV rms | ||
Coil Power 230mW | ||
Operating Temperature Range -40 → +85°C | ||
Coil Resistance 626Ω | ||
Life 100000000 (Mechanical) cycles | ||
- COO (Country of Origin):
- JP
TXD Series
These PCB mount relays have a 2 kV breakdown voltage between contact and coil and high contact reliability. These PCB relays also offer outstanding shock and vibration resistance and have a sealed construction that allows automatic washing. Typical applications include facsimile machines, modems, communications and medical, automotive and security equipment.
Stronger surge breakdown performance
Approved to the supplementary insulation class in the EN standards (EN60950)
Approved to the supplementary insulation class in the EN standards (EN60950)
Approvals
UL recognised;CSA; BSI
