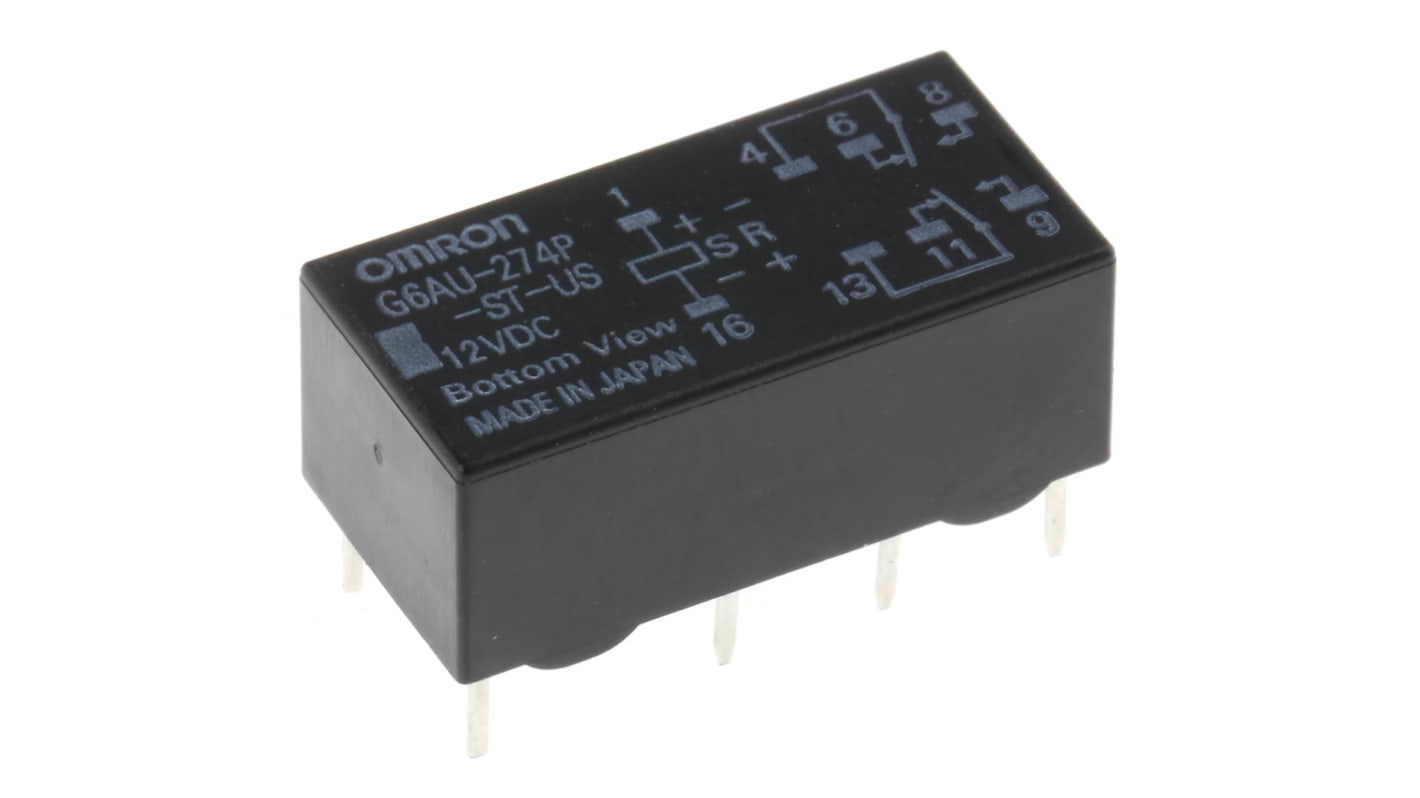

Omron PCB Mount Latching Signal Relay, 12V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 683-9315
- Mfr. Part No.:
- G6AU-274P-ST-US 12DC
- Brand:
- Omron
Available to back order for despatch 05/11/2024
Added
Price Each
£4.66
(exc. VAT)
£5.59
(inc. VAT)
| Units | Per unit |
| 1 + | £4.66 |
- RS Stock No.:
- 683-9315
- Mfr. Part No.:
- G6AU-274P-ST-US 12DC
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
G6A Series DPCO Latching
Fully sealed
Low magnetic leakage
Impulse withstand voltage of 1500V
Ideal for telecommunications equipment
Low magnetic leakage
Impulse withstand voltage of 1500V
Ideal for telecommunications equipment
Approvals
UL, CSA
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Maximum Switching Current AC | 2 A |
| Maximum Switching Current DC | 2 A |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Maximum Switching Power DC | 60 W |
| Latching | Yes |
| Length | 20.2mm |
| Depth | 10.1mm |
| Height | 8.4mm |
| Dimensions | 20.2 x 8.4 x 10.1mm |
| Terminal Type | Through Hole |
| Switching Current | 2A |
| Operating Temperature Range | -40 → +70°C |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
| Features | With PCB Stand-offs |
| Coil Resistance | 1440Ω |
| Maximum Switching Power AC | 125VA |
| Contact Material | Gold Plated |
- RS Stock No.:
- 683-9315
- Mfr. Part No.:
- G6AU-274P-ST-US 12DC
- Brand:
- Omron
