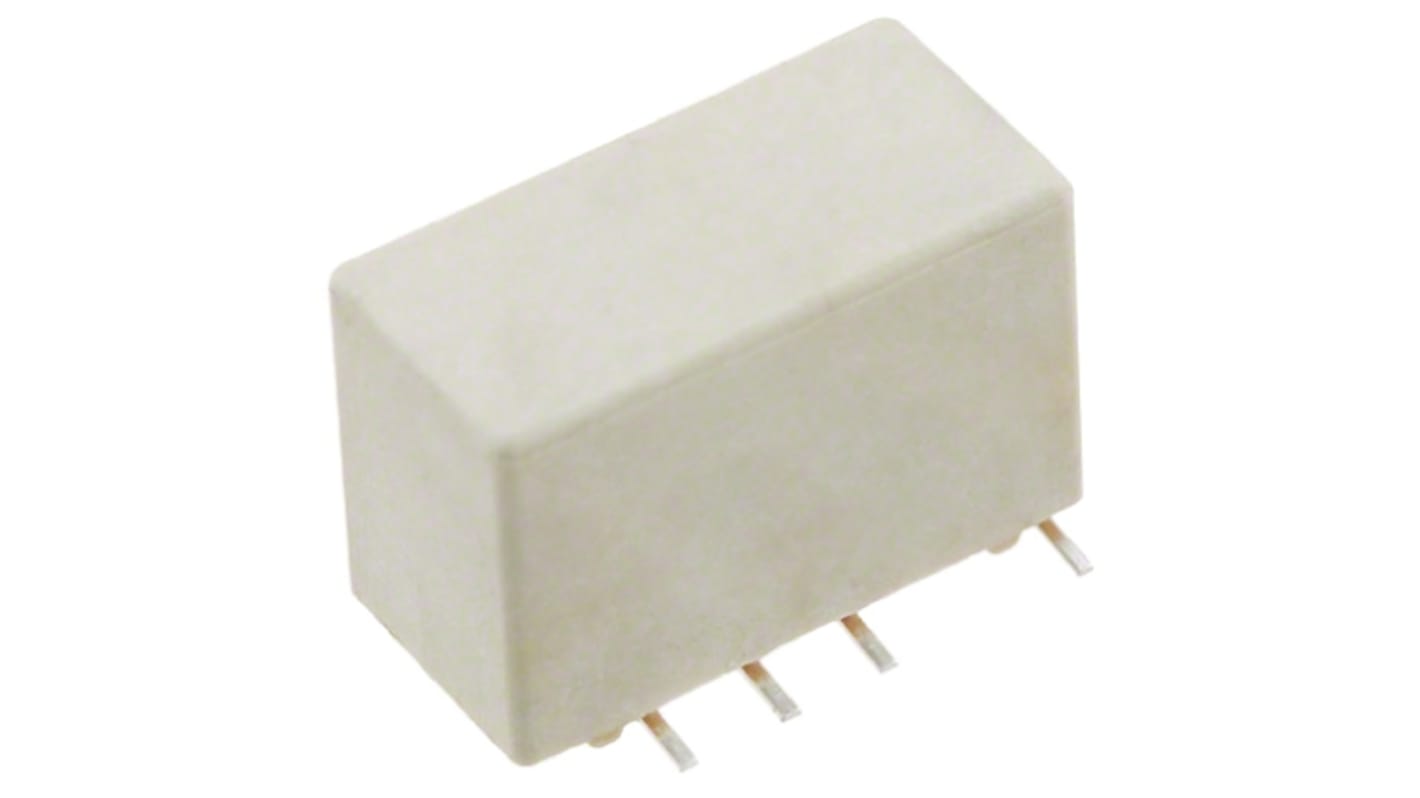

TE Connectivity Surface Mount Latching Signal Relay, 12V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 791-7573
- Mfr. Part No.:
- 6-1393788-9
- Brand:
- TE Connectivity
Available to back order for despatch 27/08/2024
Added
Price Each
£2.76
(exc. VAT)
£3.31
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £2.76 |
| 10 - 39 | £2.62 |
| 40 - 119 | £2.46 |
| 120 - 199 | £2.21 |
| 200 + | £1.79 |
- RS Stock No.:
- 791-7573
- Mfr. Part No.:
- 6-1393788-9
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
Miniature Relay P2 V23079 Series
From TE Connectivity, the P2 V23079 Series of standard telecom relays are high sensitivity, resulting in a low power consumption. Slimline and low profile, P2 V23079 Series signal relays are ideal for when space saving is a priority.
Features and Benefits:
• 2 pole polarised telecom and signal relay
• Bifurcated contacts, gold plated
• Immersion cleanable, RTIII, IP67
• V-0 flammability classification
• Insulation resistance at 500Vdc >10⁹Ω
• Surge capability meets Telcordia TR-NWT-001089 (2 / 10 μs) and IEC 60950 (10 / 700 μs), 2000V between open contacts and 2500V between coil and contacts
• Bifurcated contacts, gold plated
• Immersion cleanable, RTIII, IP67
• V-0 flammability classification
• Insulation resistance at 500Vdc >10⁹Ω
• Surge capability meets Telcordia TR-NWT-001089 (2 / 10 μs) and IEC 60950 (10 / 700 μs), 2000V between open contacts and 2500V between coil and contacts
Applications:
• Communications equipment (ringing and test access, PABX and VOIP)
• Consumer electronics (Set Top Boxes & HiFi)
• Office equipment
• Control equipment
• Medical equipment
• Automotive equipment
• Consumer electronics (Set Top Boxes & HiFi)
• Office equipment
• Control equipment
• Medical equipment
• Automotive equipment
Approvals
UL
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | DPDT |
| Mounting Type | Surface Mount |
| Maximum Switching Current AC | 5 A |
| Maximum Switching Current DC | 5 A |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Maximum Switching Power DC | 60 W |
| Length | 14.5mm |
| Latching | Yes |
| Depth | 7.2mm |
| Height | 10.4mm |
| Dimensions | 14.5 x 7.2 x 10.4mm |
| Terminal Type | PCB Pin |
| Number of Poles | 2 |
| Switching Current | 2A |
| Application | Signal |
| Maximum Switching Power AC | 62.5VA |
| Life | 5 x 10⁷ Operations |
| Coil Power | 140mW |
| Coil Resistance | 1029Ω |
| Operating Temperature Range | -40 → +85°C |
| Isolation Coil To Contact | 1.5kV rms |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Contact Material | Gold Plated |
