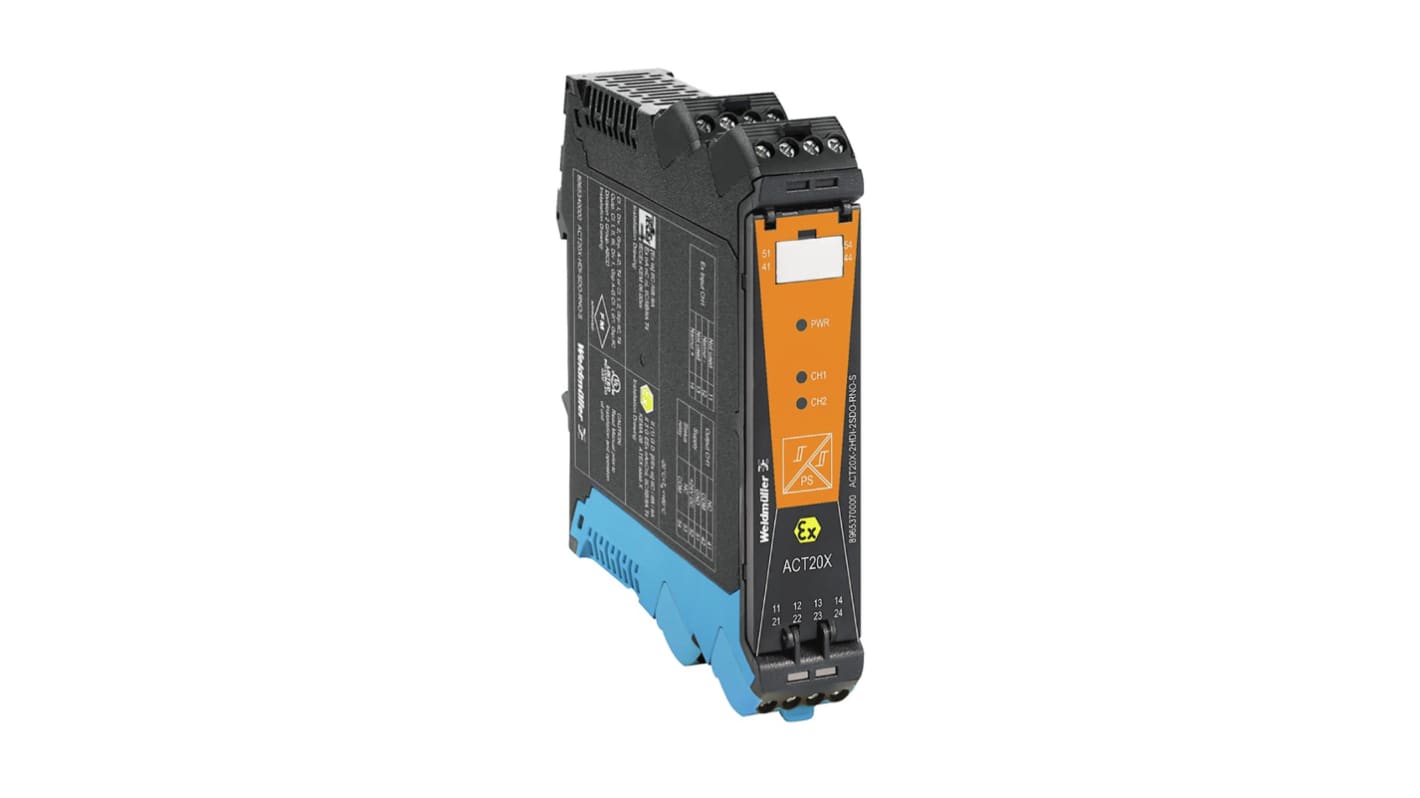

Weidmuller ACT20X Series Signal Conditioner, NAMUR Sensor, Switch Input, NPN Open Collector Output, 19.2 → 31.2V
- RS Stock No.:
- 902-8000
- Mfr. Part No.:
- 8965360000
- Brand:
- Weidmüller
Available to back order for despatch when stock is available
Price Each
£136.91
(exc. VAT)
£164.29
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £136.91 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 902-8000
- Mfr. Part No.:
- 8965360000
- Brand:
- Weidmüller
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DK
Product Details
ACT20X HDI-SDO-S/2HDI-2SDO-S Signal Isolating Converter
The ACT20X HDI-SDO-S/2HDI-2SDO-S isolating converters are specially designed for recording NAMUR sensor signals and digital switching signals which originate from Ex zone 0. Negative-switching (NPN) transitor outputs are used to transmit the signals to applications in the safe zone.
DIN Rail mounting
22.5 mm width
Alarm contact in the event of a malfunction
1 or 2 channel options
Screw connection, removable terminal block
IP20 protection
22.5 mm width
Alarm contact in the event of a malfunction
1 or 2 channel options
Screw connection, removable terminal block
IP20 protection
Specifications
Attribute | Value |
|---|---|
| Module Type | Isolation Amplifier |
| Input Signal Type | NAMUR Sensor, Switch |
| Output Signal Type | NPN Open Collector |
| Input Range | 8V dc |
| Output Range | <2.5V dc |
| Supply Voltage | 19.2 → 31.2V |
| Hazardous Area Certification | IECEx |
| Mounting Type | DIN Rail Mount |
| Operating Temperature Range | -20 → +60°C |
| Series | ACT20X |
| Minimum Operating Temperature | -20°C |
| Termination | Screw |
| Maximum Operating Temperature | +60°C |
