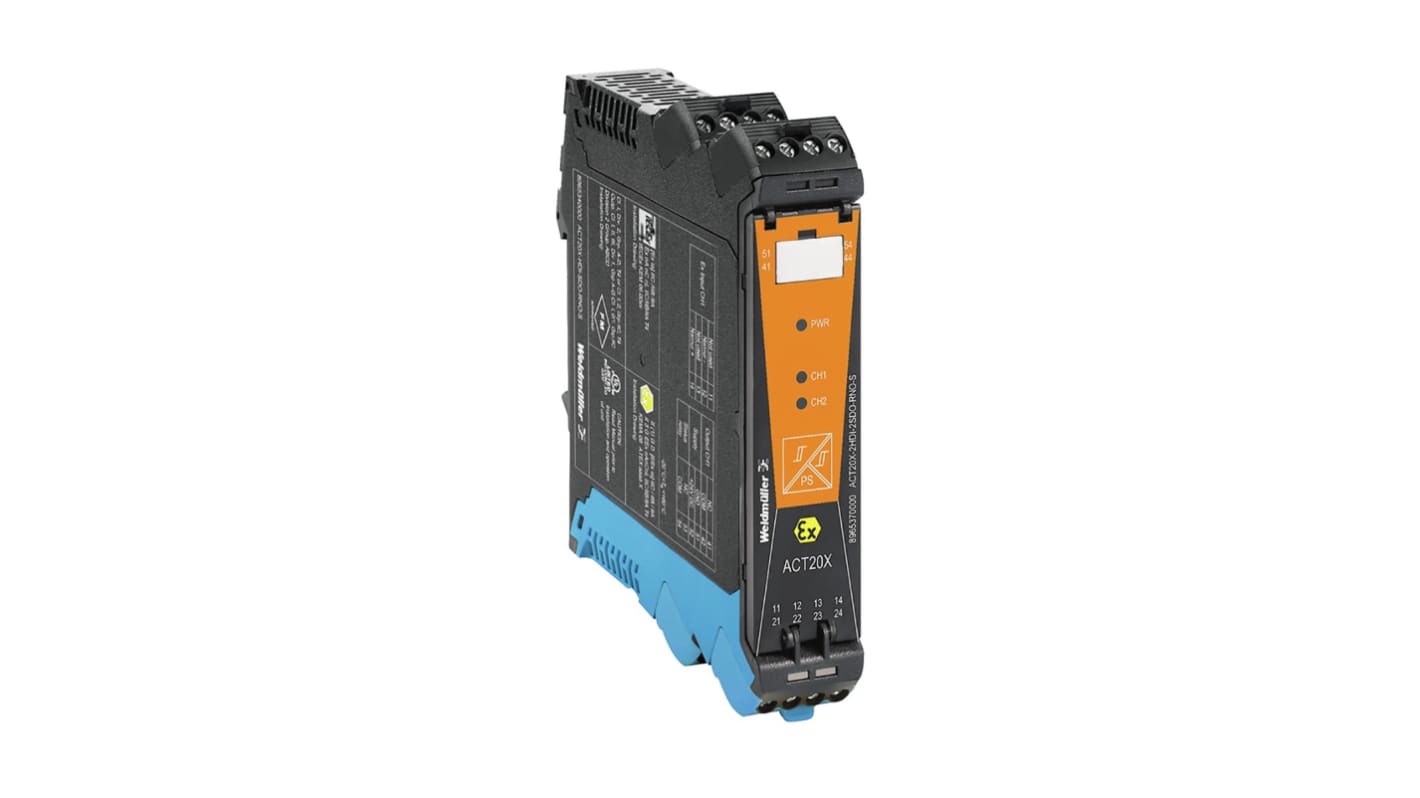

Weidmüller ACT20X Series Signal Conditioner, Switch Input, Relay Output, 19.2V, 31.2 V Supply, IECEx
- RS Stock No.:
- 902-7994
- Mfr. Part No.:
- 8965340000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£143.84
(exc. VAT)
£172.61
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 17 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £143.84 |
*price indicative
- RS Stock No.:
- 902-7994
- Mfr. Part No.:
- 8965340000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Product Type | Signal Conditioner | |
| Input Signal Type | Switch | |
| Output Signal Type | Relay | |
| Input Range | 8 | |
| Output Range | 2 A | |
| Isolation | 2.6kV | |
| Supply Voltage | 19.2V, 31.2V | |
| Hazardous Area Certification | IECEx | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| IP Rating | IP20 | |
| Signal Conditioner Type | Isolating Switch Amplifier | |
| SIL Level | SIL 2 | |
| Standards/Approvals | DIN EN 61326, EN60947, RoHS | |
| Series | ACT20X | |
| Number of Channels | 1 | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Product Type Signal Conditioner | ||
Input Signal Type Switch | ||
Output Signal Type Relay | ||
Input Range 8 | ||
Output Range 2 A | ||
Isolation 2.6kV | ||
Supply Voltage 19.2V, 31.2V | ||
Hazardous Area Certification IECEx | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
IP Rating IP20 | ||
Signal Conditioner Type Isolating Switch Amplifier | ||
SIL Level SIL 2 | ||
Standards/Approvals DIN EN 61326, EN60947, RoHS | ||
Series ACT20X | ||
Number of Channels 1 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DK
ACT20X HDI-SDO-RNC/RNO-S/2HDI-2SDO-RNO-S Signal Isolating Converter
The ACT20X HDI-SDO-RNC-S/HDI-RNO-S/2HDI-2SDO-RNO-S isolating converters with amplifiers are specially designed for recording NAMUR sensor signals and digital switching signal which originate for Ex zone 0. With 11 mm width per channel, these isolating converters makes the ideal device to use in electrical cabinets as they require little space.
DIN Rail mounting
22.5 mm width
NO or NC options available
Scew connection, removable terminal block
Alarm contacts in the event of a malfunction
1 channel & 2 channel options
IP20 protection
