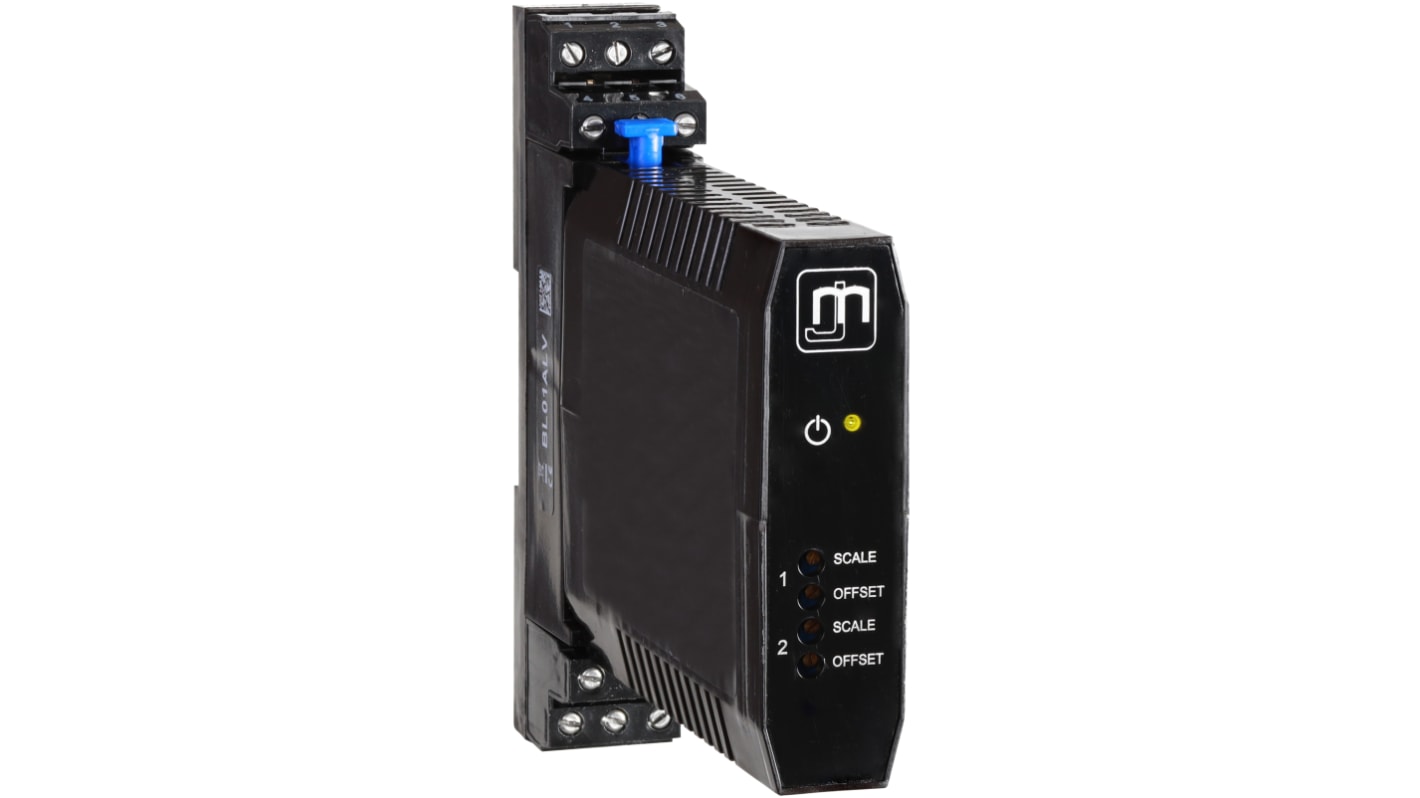

JM CONCEPT JK 3000 Series Isolating Signal Converter, Current/Voltage Input, Current/Voltage Output, 230 V ac, 90 V ac,
- RS Stock No.:
- 232-8230
- Mfr. Part No.:
- JK3000A2
- Brand:
- JM CONCEPT
Subtotal (1 unit)*
£214.42
(exc. VAT)
£257.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 17 September 2026
- Plus 5 unit(s) shipping from 30 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £214.42 |
*price indicative
- RS Stock No.:
- 232-8230
- Mfr. Part No.:
- JK3000A2
- Brand:
- JM CONCEPT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JM CONCEPT | |
| Product Type | Isolating Signal Converter | |
| Input Signal Type | Current/Voltage | |
| Output Signal Type | Current/Voltage | |
| Supply Voltage | 230, 90, 22, 240V ac | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 60°C | |
| Minimum Operating Temperature | -10°C | |
| IP Rating | IP20 | |
| Standards/Approvals | RoHS, CE | |
| Series | JK 3000 | |
| Select all | ||
|---|---|---|
Brand JM CONCEPT | ||
Product Type Isolating Signal Converter | ||
Input Signal Type Current/Voltage | ||
Output Signal Type Current/Voltage | ||
Supply Voltage 230, 90, 22, 240V ac | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Temperature -10°C | ||
IP Rating IP20 | ||
Standards/Approvals RoHS, CE | ||
Series JK 3000 | ||
- COO (Country of Origin):
- FR
The JM CONCEPT Process Input converter allows the isolation and conditioning of analog signals. It has 1 input and 2 output range. The lightning shock protection option helps the converter protects the PLC inputs from lightning shocks.
Precision class 0,1
Thermal drift <50ppm
Residual ripple on current output <20μA
Residual ripple on voltage output <20mV
Maximum of consumption <7.5VA
