Ruland Shaft Collar, Two Piece, Clamp Screw, Bore 16mm, OD 45mm, W 10mm, Aluminium
- RS Stock No.:
- 174-6720
- Mfr. Part No.:
- ENSP45-16MM-A
- Brand:
- Ruland
Save 7% when you buy 25 units
Subtotal (1 unit)*
£14.19
(exc. VAT)
£17.03
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £14.19 |
5 - 9 | £13.63 |
10 - 24 | £13.34 |
25 + | £13.08 |
*price indicative
- RS Stock No.:
- 174-6720
- Mfr. Part No.:
- ENSP45-16MM-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Shaft Diameter | 16mm | |
One/Two Piece | Two Piece | |
Material | Aluminium | |
Single/Double Wide | Double | |
Outside Diameter | 45mm | |
Fastening | Clamp Screw | |
Width | 10mm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Shaft Diameter 16mm | ||
One/Two Piece Two Piece | ||
Material Aluminium | ||
Single/Double Wide Double | ||
Outside Diameter 45mm | ||
Fastening Clamp Screw | ||
Width 10mm | ||
- COO (Country of Origin):
- US

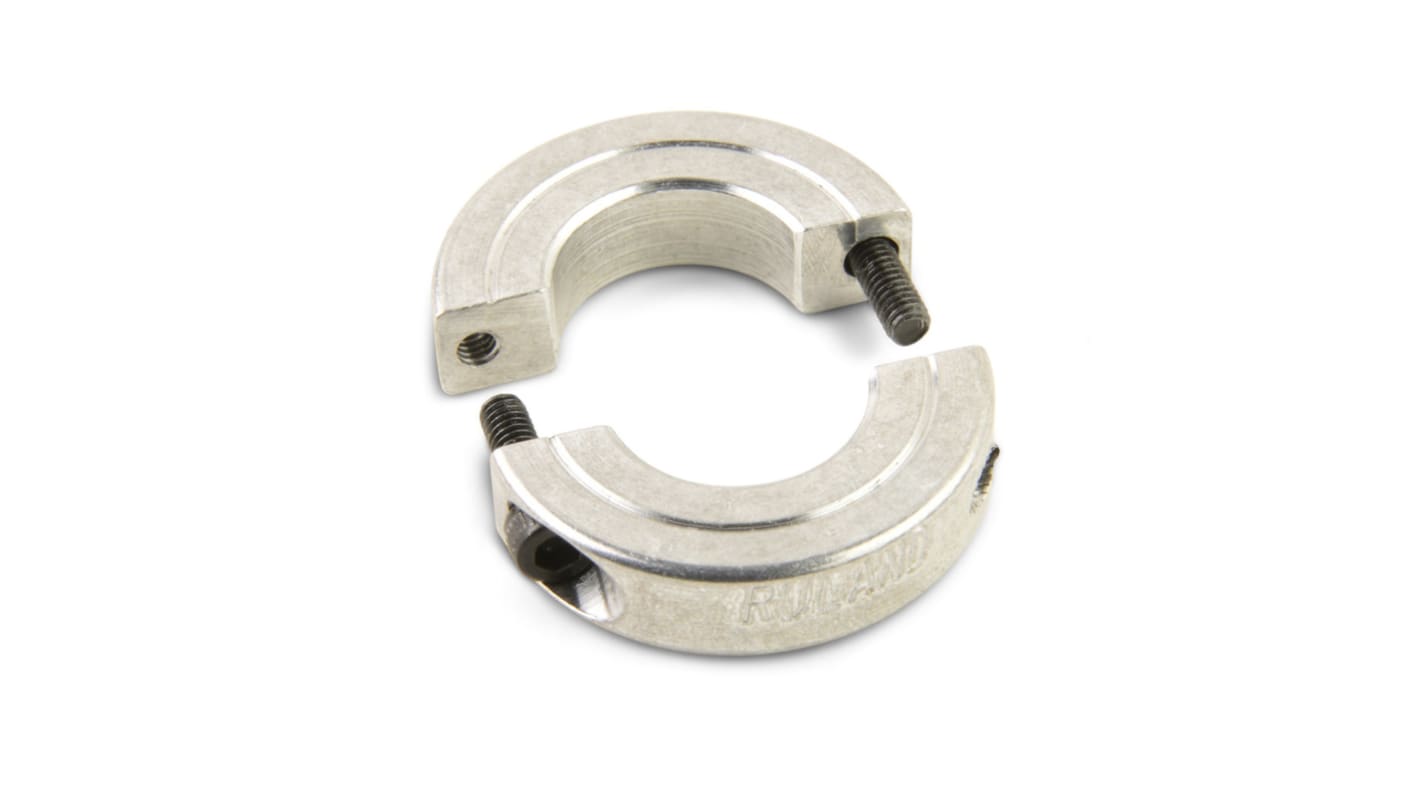

Ruland ENSP45-16MM-A is a two-piece shaft collar with a 16mm bore, 45mm OD, and 10mm width. The thin line design reduces weight and allows for use in confined spaces. It has the clamp style benefits of not marring the shaft, easy removability, and indefinite adjustability while commonly being used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .002"). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power.
