- RS Stock No.:
- 232-9693
- Mfr. Part No.:
- AS5510-WL_EK_AB
- Brand:
- ams OSRAM
10 In stock - FREE next working day delivery available
Added
Price Each
£14.85
(exc. VAT)
£17.82
(inc. VAT)
Units | Per unit |
1 - 4 | £14.85 |
5 - 9 | £14.46 |
10 - 24 | £14.09 |
25 + | £13.74 |
- RS Stock No.:
- 232-9693
- Mfr. Part No.:
- AS5510-WL_EK_AB
- Brand:
- ams OSRAM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details

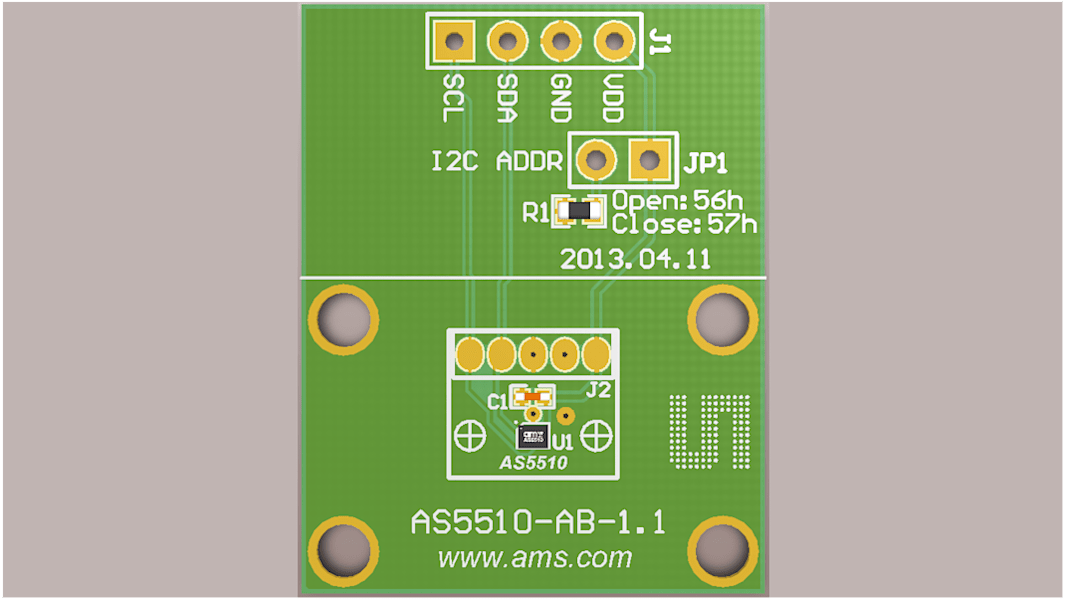

The ams AS5510 adapter board is a simple circuit allowing to test and evaluate the AS5510 linear encoder quickly without having to build a test fixture or PCB. The AS5510 is a linear hall sensor with 10 bit resolution and I²C interface. It can measure absolute position of lateral movement of a simple 2-pole magnet.
Adapter board must be attached to a microcontroller via the I²C bus
Supplied with a voltage of 2.5 V to 3.6 V
2-pole magnet is placed on the top of the encoder
Supplied with a voltage of 2.5 V to 3.6 V
2-pole magnet is placed on the top of the encoder
Specifications
Attribute | Value |
---|---|
Sensor Technology | Position Sensor |
Featured Device | AS5510 |
For Use With | AS5510 |
Kit Classification | Adapter Board |
Kit Name | AS5510-WL_EK_AB |
