ams OSRAM AS5510-SO_EK_AB Position Sensor Adapter Board for AS5510 AS5510

View all Sensor Development Tools
Bulk discount available

Subtotal (1 unit)*

£12.50

(exc. VAT)

£15.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£12.50
5 - 9£12.18
10 +£11.88

*price indicative

RS Stock No.:
232-9692
Mfr. Part No.:
AS5510-SO_EK_AB
Brand:
ams OSRAM
Find similar products by selecting one or more attributes.
Select all

Brand

ams OSRAM

Sensor Technology

Position Sensor

Featured Device

AS5510

For Use With

AS5510

Kit Classification

Adapter Board

Kit Name

AS5510-SO_EK_AB

COO (Country of Origin):
AT

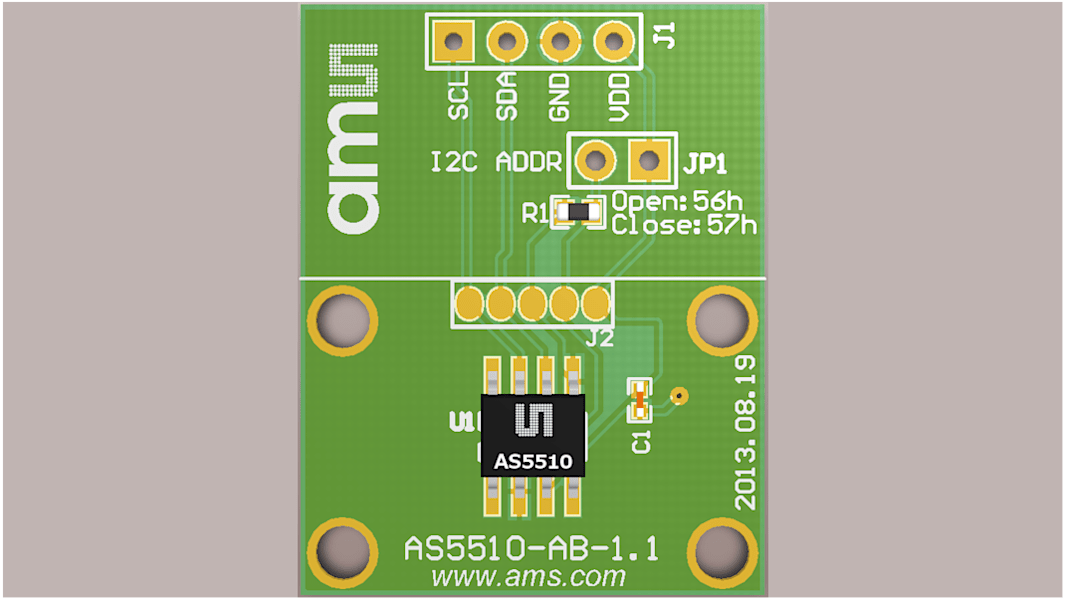

The ams AS5510 adapter board is a simple circuit allowing to test and evaluate the AS5510 linear encoder quickly without having to build a test fixture or PCB. The AS5510 is a linear hall sensor with 10 bit resolution and I²C interface. It can measure absolute position of lateral movement of a simple 2-pole magnet.

Adapter board must be attached to a microcontroller via the I²C bus
Supplied with a voltage of 2.5 V to 3.6 V
2-pole magnet is placed on the top of the encoder
