Phoenix Contact Male 5 way M12 to Female 5 way M12 Sensor Actuator Cable, 300mm
- RS Stock No.:
- 861-2828
- Mfr. Part No.:
- 1457306
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£21.02
(exc. VAT)
£25.22
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £21.02 |
*price indicative
- RS Stock No.:
- 861-2828
- Mfr. Part No.:
- 1457306
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Cross Sectional Area | (Signal Line) 5x 0.34 mm² | |
| Number of Cores | 5 | |
| Sheath Material | PUR | |
| Length | 300mm | |
| Sheath Colour | Grey | |
| Connector 1 | M12 | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 5 | |
| Connector 2 Number of Contacts | 5 | |
| Connector 2 Gender | Female | |
| Connector 2 | M12 | |
| Connector 2 Housing Gender | Male | |
| Coding | A | |
| Current Rating | 4 A | |
| Voltage Rating | 24 V | |
| IP Rating | IP65, IP67, IP68 | |
| Oil Resistant | Yes | |
| Connector 1 Housing Gender | Male | |
| Fire Behaviour | Halogen Free | |
| Outer Diameter | 5.1 mm ±0.2mm | |
| Conductor Material | Bare Cu litz wires | |
| Minimum Bend Radius | 5 x D (Flexible), 5 x D (Fixed) | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Cross Sectional Area (Signal Line) 5x 0.34 mm² | ||
Number of Cores 5 | ||
Sheath Material PUR | ||
Length 300mm | ||
Sheath Colour Grey | ||
Connector 1 M12 | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 5 | ||
Connector 2 Number of Contacts 5 | ||
Connector 2 Gender Female | ||
Connector 2 M12 | ||
Connector 2 Housing Gender Male | ||
Coding A | ||
Current Rating 4 A | ||
Voltage Rating 24 V | ||
IP Rating IP65, IP67, IP68 | ||
Oil Resistant Yes | ||
Connector 1 Housing Gender Male | ||
Fire Behaviour Halogen Free | ||
Outer Diameter 5.1 mm ±0.2mm | ||
Conductor Material Bare Cu litz wires | ||
Minimum Bend Radius 5 x D (Flexible), 5 x D (Fixed) | ||
Non Compliant

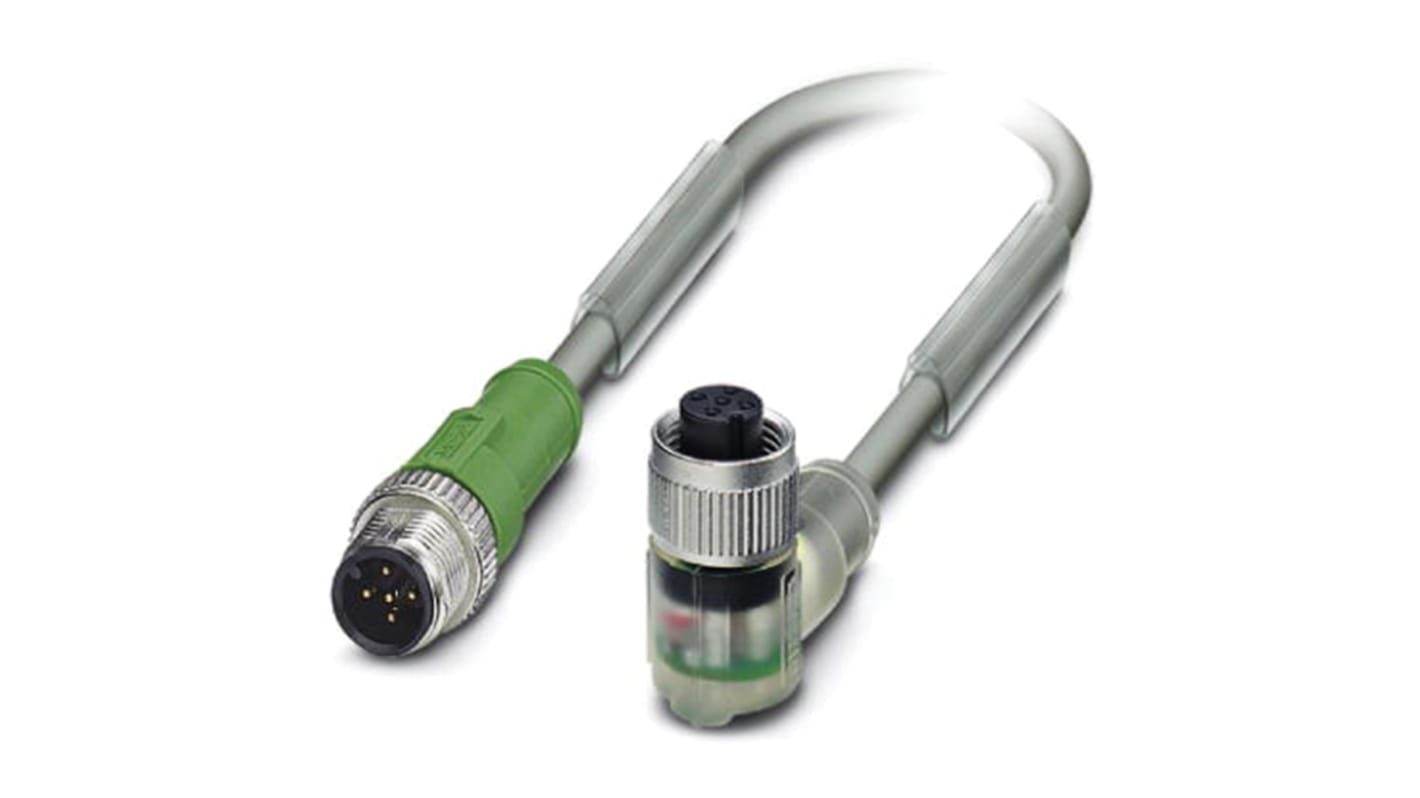

Sensor/actuator cable, 5-position, PUR halogen-free, resistant to welding sparks, highly flexible, gray RAL 7001, Plug straight M12, coding: A, on Socket angled M12, coding: A, with 3 LEDs, cable length: 0.3 m, for robots and drag chains
Flexible: cable supports a high degree of torsion and bending
Easy and safe: 100% electrically tested plug-in components
Reliable solution for the body shop as cable is resistant to welding sparks
Convenient: increased machine availability thanks to quick and easy diagnostics
