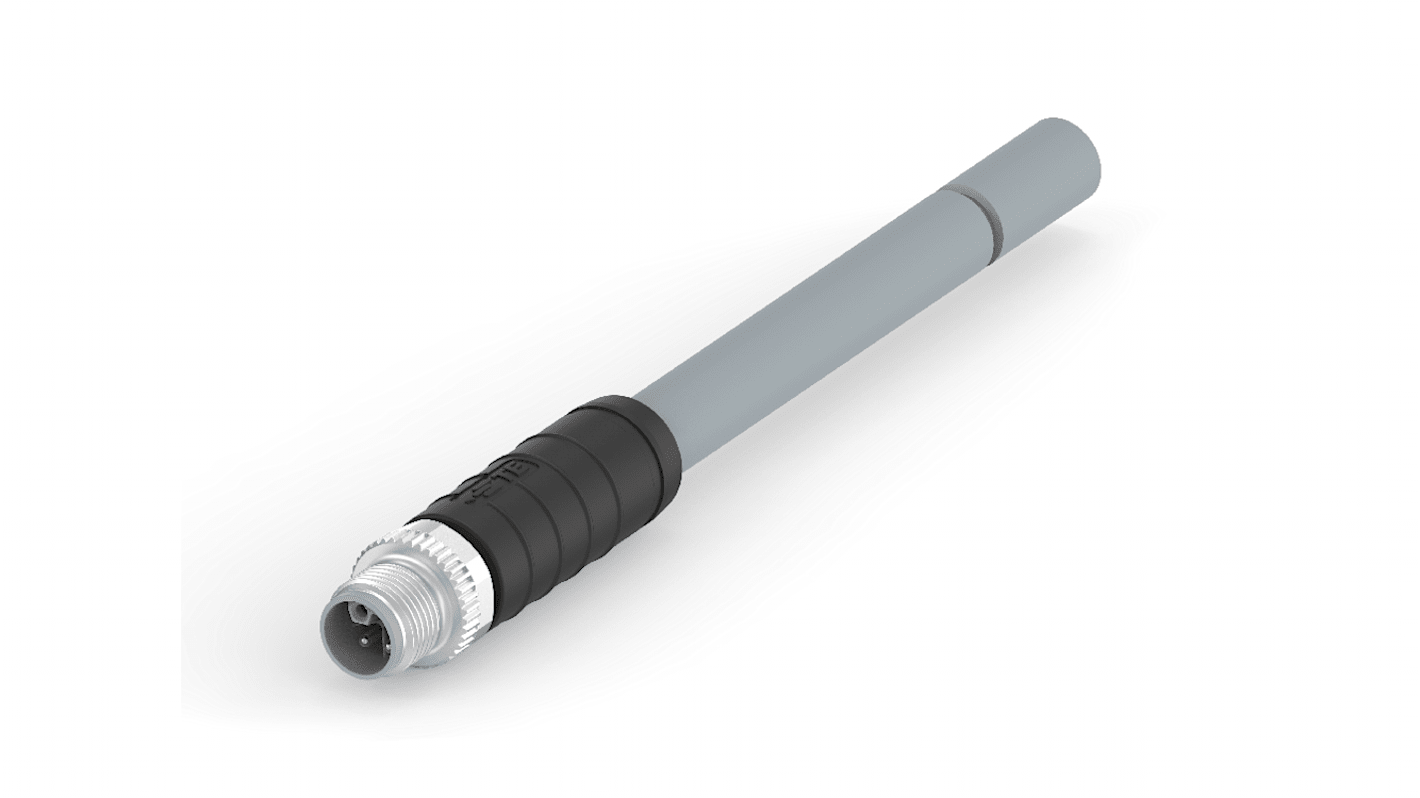

TE Connectivity Straight Male 5 way M12 to Unterminated Sensor Actuator Cable, 1.5m

View all Sensor & Actuator Cables

Subtotal (1 bag of 35 units)*

£1,108.66

(exc. VAT)

£1,330.385

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
35 +£31.676£1,108.66

*price indicative

Sensor & Actuator cables to Sensor Accessories
Complete Your Connection with the Right Accessories
Sensor & actuator cables are essential for reliable connectivity—but to get the most out of your setup, don’t overlook the accessories. From mounting hardware to protective covers and connectors, our sensor accessories help you install, secure, and optimise your system. If you're browsing cables, explore our accessories range to ensure a clean, efficient, and long-lasting installation.
Shop Now
RS Stock No.:
238-4482
Mfr. Part No.:
T4151199L25-003
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Series

M12 L-Code

Cross Sectional Area

2.5 mm²

Sheath Material

Nylon

Sheath Colour

Grey

Length

1.5m

Connector 1

M12

Connector 1 Gender

Male

Connector 1 Orientation

Straight

Connector 1 Number of Contacts

5

Connector 2

Unterminated

Coding

L

Current Rating

16 A

Voltage Rating

63 V

IP Rating

IP67

Maximum Operating Temperature

+85°C

Conductor Material

Copper

Insulation Material

PVC

American Wire Gauge

14 AWG

Outer Diameter

10.1mm

Number of Strands

124

Connector 1 Housing Gender

Male

Standards Met

UL

Minimum Operating Temperature

-25°C

COO (Country of Origin):
CN
The TE Connectivity M12 Power L-code cable assembly are an extension of the current M12 IEC standard and have been selected by PROFIBUS and PROFINET International as the standard for 24-volt power supply systems used in PROFINET devices. The M12 power cable assembly are available in both male and female connectors and suitable for every purpose with its conductor size from 1.5 mm² up to 2.5 mm² allowing for a more compact build of a high-power solutions for automation devices. The L-coding version is designed for DC power supplies with 63 V DC / 16 A, where a high current and low voltage is required making ideal for fieldbus Ethernet I/O boxes, Ethernet systems, network Devices, motors and drives and valve applications.

Unit remains protected and fully operational in most industrial applications
Secured signal connections and data transmission
Protection against mismatching with coded pin connector patterns
PNO approved for immediate implementation into PROFINET standard and embracing miniaturization of distribution boxes
One stop shop solution with broad product portfolio with cable jacket colours and material options
