- RS Stock No.:
- 197-2720
- Mfr. Part No.:
- 51507 RST 5-RKT 5-289/5 M
- Brand:
- Lumberg Automation
Available to back order for despatch 23/08/2024
Price Each
£15.14
(exc. VAT)
£18.17
(inc. VAT)
Units | Per unit |
---|---|
1 + | £15.14 |
- RS Stock No.:
- 197-2720
- Mfr. Part No.:
- 51507 RST 5-RKT 5-289/5 M
- Brand:
- Lumberg Automation
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details

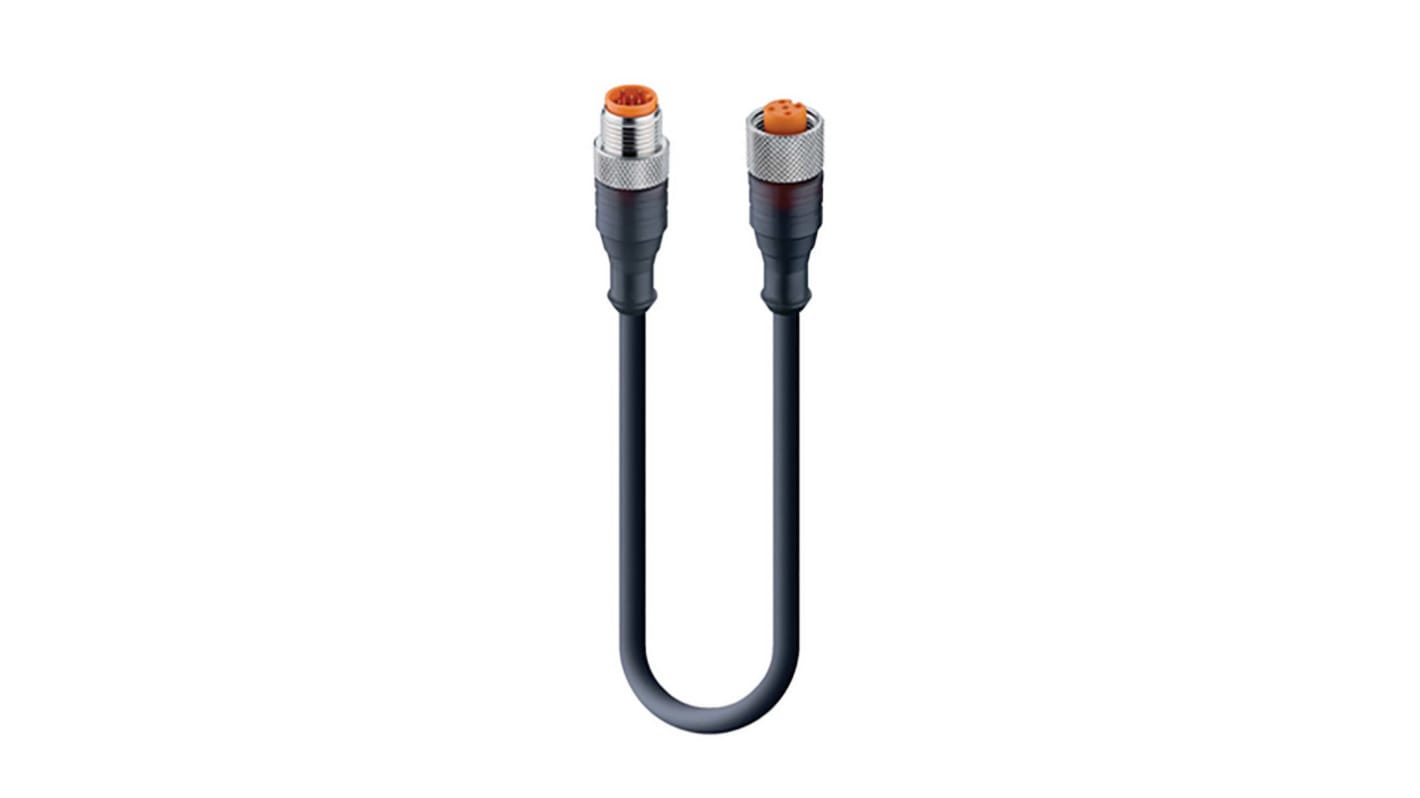

The Belden sensor/actuator double-ended cordset has 5-pin M12 straight male connector to 5-pin M12 straight female. The cable length is 5m. The electrical voltage rating is 50V AC/60V DC and a current rating is 4A.
A-coded
Body colour is translucent
Contact base material is CuSn
Operating temperature is -40°C to +90°C
Body colour is translucent
Contact base material is CuSn
Operating temperature is -40°C to +90°C
Specifications
Attribute | Value |
---|---|
Series | RST |
Number of Cores | 5 |
Cross Sectional Area | 0.34 mm² |
Sheath Colour | Black |
Sheath Material | PVC |
Length | 5m |
Connector 1 Number of Contacts | 5 |
Connector 1 Gender | Male |
Connector 1 Orientation | Straight |
Connector 1 | M12 |
Connector 2 | M12 |
Connector 2 Orientation | Straight |
Connector 2 Gender | Female |
Connector 2 Housing Gender | Female |
Connector 2 Number of Contacts | 5 |
Shielded/Unshielded | Unshielded |
Voltage Rating | 60 V |
Current Rating | 4 A |
IP Rating | IP65, IP67, IP68, IP69 |
Connector 1 Housing Gender | Male |
Fire Behaviour | Halogen Free |
Conductor Material | Copper |
Minimum Bend Radius | 5 mm |
Insulation Material | PVC |
Cable Shape | Multicore |
Outer Diameter | 5.50mm |
