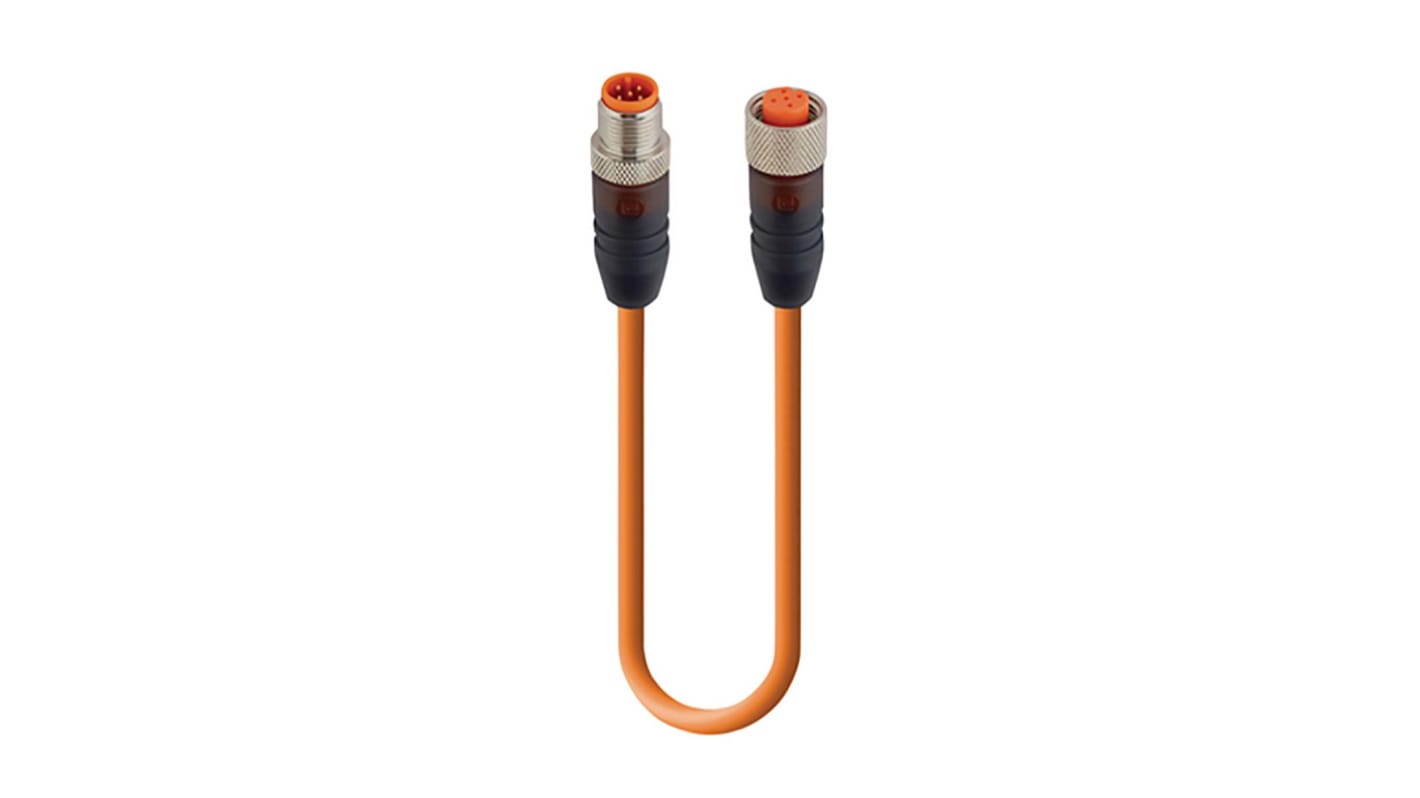

Lumberg Automation Straight Male 5 way M12 to Straight Female 5 way M12 Sensor Actuator Cable, 1.5m
- RS Stock No.:
- 197-2611
- Mfr. Part No.:
- 109371 RST 5-RKT 5-458/1,5 M
- Brand:
- Lumberg Automation
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£29.41
(exc. VAT)
£35.29
(inc. VAT)
- RS Stock No.:
- 197-2611
- Mfr. Part No.:
- 109371 RST 5-RKT 5-458/1,5 M
- Brand:
- Lumberg Automation
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumberg Automation | |
| Series | RST | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 5 | |
| Sheath Material | PUR | |
| Sheath Colour | Orange | |
| Length | 1.5m | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 Gender | Male | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Straight | |
| Connector 2 Orientation | Straight | |
| Connector 2 Gender | Female | |
| Connector 2 | M12 | |
| Connector 2 Number of Contacts | 5 | |
| Current Rating | 4 A | |
| Voltage Rating | 60 V | |
| IP Rating | IP65, IP67, IP68, IP69K | |
| Outer Diameter | 7mm | |
| American Wire Gauge | 22 AWG | |
| Minimum Bend Radius | 5 x cable diameter | |
| Insulation Material | PP | |
| Fire Behaviour | Flame Retardant | |
| Oil Resistant | Yes | |
| Conductor Material | Copper | |
| Select all | ||
|---|---|---|
Brand Lumberg Automation | ||
Series RST | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 5 | ||
Sheath Material PUR | ||
Sheath Colour Orange | ||
Length 1.5m | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Connector 1 Orientation Straight | ||
Connector 2 Orientation Straight | ||
Connector 2 Gender Female | ||
Connector 2 M12 | ||
Connector 2 Number of Contacts 5 | ||
Current Rating 4 A | ||
Voltage Rating 60 V | ||
IP Rating IP65, IP67, IP68, IP69K | ||
Outer Diameter 7mm | ||
American Wire Gauge 22 AWG | ||
Minimum Bend Radius 5 x cable diameter | ||
Insulation Material PP | ||
Fire Behaviour Flame Retardant | ||
Oil Resistant Yes | ||
Conductor Material Copper | ||
- COO (Country of Origin):
- CZ
The Belden sensor/actuator double-ended cordset has 5-pin M12 straight male connector to 5-pin M12 straight female. The cable length is 1.5m. The electrical voltage rating is 50V AC/60V DC and a current rating is 4A.
A-coded
Body colour is translucent
Contact base material is CuSn
Operating temperature is -40°C to +90°C
Body colour is translucent
Contact base material is CuSn
Operating temperature is -40°C to +90°C
