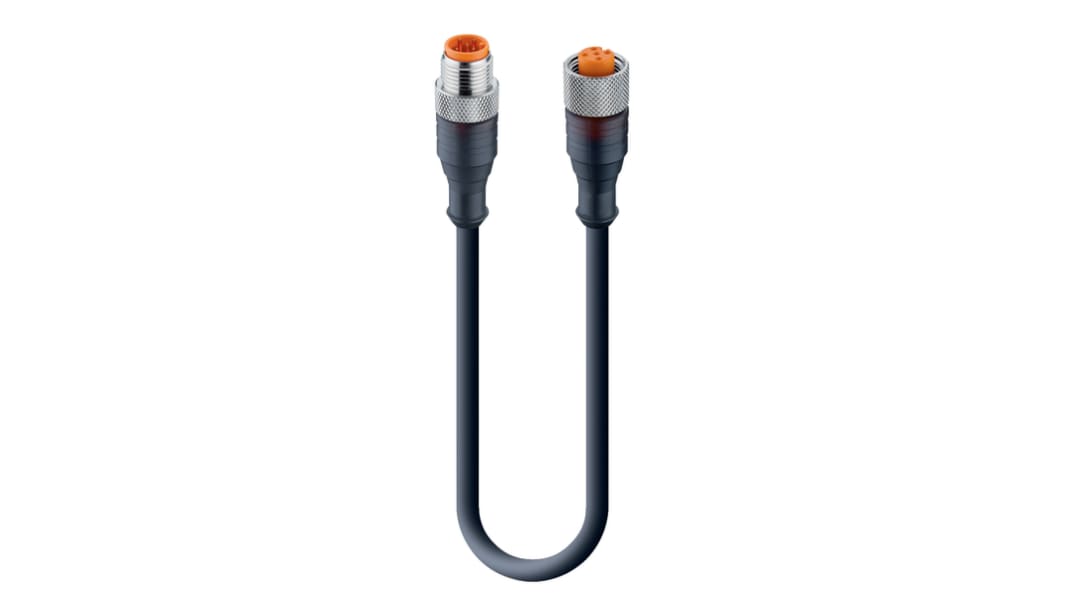

Lumberg Automation Straight Male 5 way M12 to Straight Female 5 way M12 Sensor Actuator Cable, 4m

RS Stock No.:: 197-2553
Distrelec Article No.:: 304-21-521
Mfr. Part No.:: 44136 RST 5-RKT 5-228/4 M
Brand:: Lumberg Automation

Lumberg Automation Straight Male 5 way M12 to Straight Female 5 way M12 Sensor Actuator Cable, 4m

Subtotal (1 unit)*

£26.07

(exc. VAT)

£31.28

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

6 unit(s) shipping from 23 October 2025
Plus 30 unit(s) shipping from 09 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£26.07

*price indicative

RS Stock No.:: 197-2553
Distrelec Article No.:: 304-21-521
Mfr. Part No.:: 44136 RST 5-RKT 5-228/4 M
Brand:: Lumberg Automation

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lumberg Automation
	Series	RST
	Number of Cores	5
	Cross Sectional Area	0.5 mm²
	Sheath Colour	Black
	Length	4m
	Sheath Material	Polyurethane PUR
	Connector 1 Gender	Male
	Connector 1 Number of Contacts	5
	Connector 1	M12
	Connector 1 Orientation	Straight
	Connector 2 Number of Contacts	5
	Connector 2 Gender	Female
	Connector 2 Orientation	Straight
	Connector 2	M12
	Coding	A
	Shielding	Unshielded
	Shielded/Unshielded	Unshielded
	Voltage Rating	60 V
	Current Rating	4 A
	IP Rating	IP65, IP67, IP68, IP69K
	Maximum Operating Temperature	+90°C
	Minimum Bend Radius	5 x D
	American Wire Gauge	20 AWG
	Conductor Resistance	10 mO
	Outer Diameter	5.4mm
	Standards Met	RoHS Compliant, UL
	Oil Resistant	Yes
	Minimum Operating Temperature	-40°C
	Conductor Material	Copper
	Operating Temperature Range	-40 → +90 °C

	Select all
	Brand Lumberg Automation
	Series RST
	Number of Cores 5
	Cross Sectional Area 0.5 mm²
	Sheath Colour Black
	Length 4m
	Sheath Material Polyurethane PUR
	Connector 1 Gender Male
	Connector 1 Number of Contacts 5
	Connector 1 M12
	Connector 1 Orientation Straight
	Connector 2 Number of Contacts 5
	Connector 2 Gender Female
	Connector 2 Orientation Straight
	Connector 2 M12
	Coding A
	Shielding Unshielded
	Shielded/Unshielded Unshielded
	Voltage Rating 60 V
	Current Rating 4 A
	IP Rating IP65, IP67, IP68, IP69K
	Maximum Operating Temperature +90°C
	Minimum Bend Radius 5 x D
	American Wire Gauge 20 AWG
	Conductor Resistance 10 mO
	Outer Diameter 5.4mm
	Standards Met RoHS Compliant, UL
	Oil Resistant Yes
	Minimum Operating Temperature -40°C
	Conductor Material Copper
	Operating Temperature Range -40 → +90 °C

Datasheet - 53133

COO (Country of Origin):: CZ

Belden Lumberg Automation Sensor Actuator Cable, 60V Voltage Rating, 4A Rated Current - RST Series - 44136 RST 5-RKT 5-228/4 M

Need a quick and easy way to hook up sensing equipment to your PLC? Make the connection in a snap with this sensor actuator cable from Belden Lumberg Automation. It's a double-ended cordset combining five-way M12 male and female connectors that offer easy compatibility with standard equipment. Thanks to coupling screws, the connectors hold fast and don't let go, even in vibrating conditions.

Features & Benefits

• IP69K rating indicates resistance to dust and water, for safe performance in contaminated environments
• Does the job without a hiccup in a wide operating temperature range from -40°C to +90°C
• Gold and tin conductor plating minimises corrosion to keep signals crystal clear

Applications

• Manufacturing sector
• Aerospace engineering
• Energy industry

How flexible is this cable?

In fixed installations, it has a minimal bending radius of at least five times its 5.40mm cable diameter and twice that for flexible installations.
