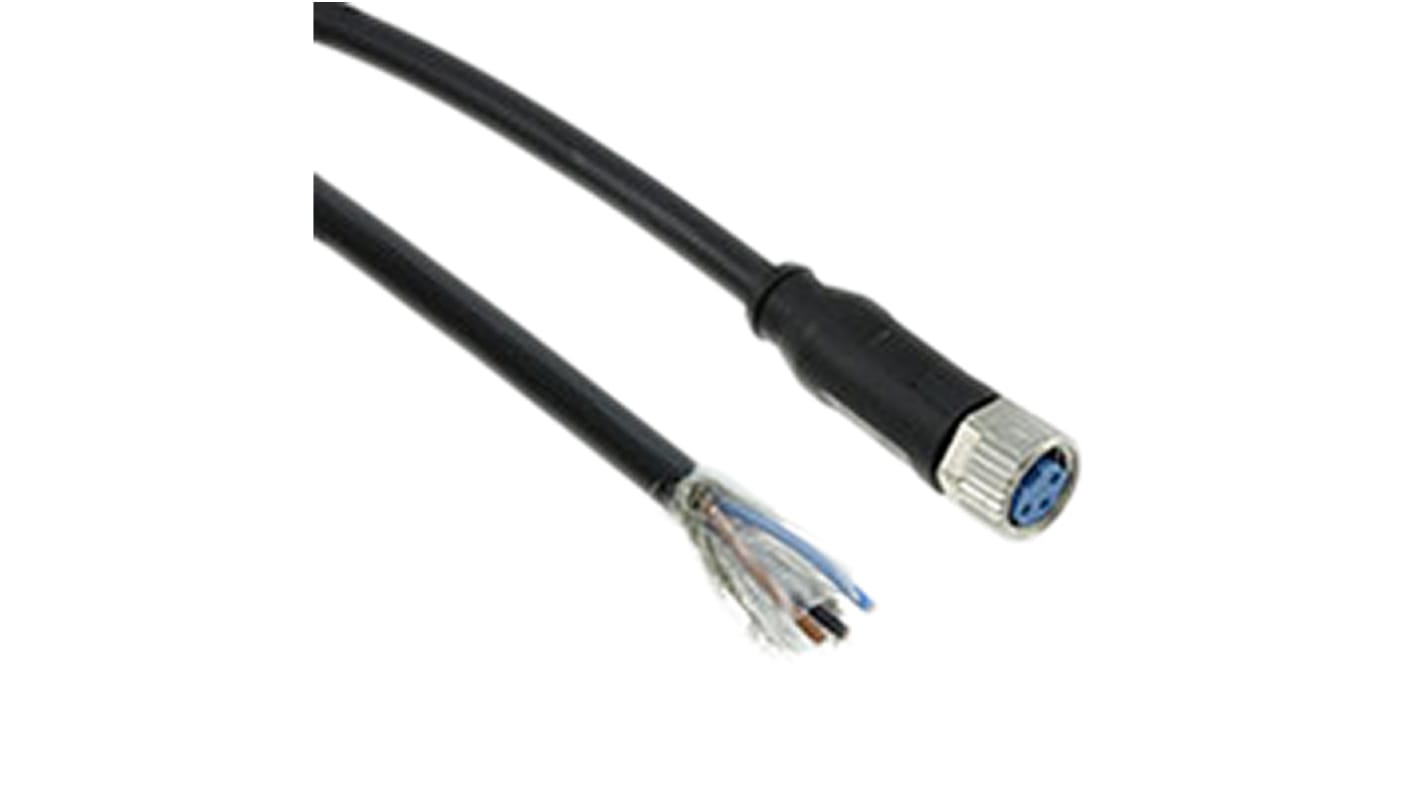

TE Connectivity Straight Female 3 way M8 to Unterminated Sensor Actuator Cable, 1.5m

RS Stock No.:: 164-6555
Mfr. Part No.:: 2273005-1
Brand:: TE Connectivity

TE Connectivity Straight Female 3 way M8 to Unterminated Sensor Actuator Cable, 1.5m

23 In stock - FREE next working day delivery available

Price Each (In a Box of 25)

£23.328

(exc. VAT)

£27.994

(inc. VAT)

Units	Per unit	Per Box*
25 +	£23.328	£583.20

*price indicative

RS Stock No.:: 164-6555
Mfr. Part No.:: 2273005-1
Brand:: TE Connectivity

Datasheet 2273005-1

Attribute	Value
Cross Sectional Area	0.34 mm²
Number of Cores	3
Sheath Colour	Black
Length	1.5m
Sheath Material	PUR
Connector 1	M8
Connector 1 Number of Contacts	3
Connector 1 Gender	Female
Connector 1 Orientation	Straight
Connector 2	Unterminated
Coding	A
Shielded/Unshielded	Shielded
Voltage Rating	60 V ac/dc
Current Rating	4 A
IP Rating	IP65, IP67
Cable Shape	Multicore
Minimum Bend Radius	50 mm
Insulation Material	PP
Minimum Operating Temperature	-40°C
Operating Temperature Range	-40 → +80 °C
Connector 1 Housing Gender	Female
Outer Diameter	5mm
American Wire Gauge	22 AWG
Maximum Operating Temperature	+80°C
Standards Met	CSA, ELV Compliant, EN 60549, RoHS Compliant, UL

TE Connectivity Straight Female 3 way M8 to Unterminated Sensor Actuator Cable, 1.5m

M8 Pigtail Connector
