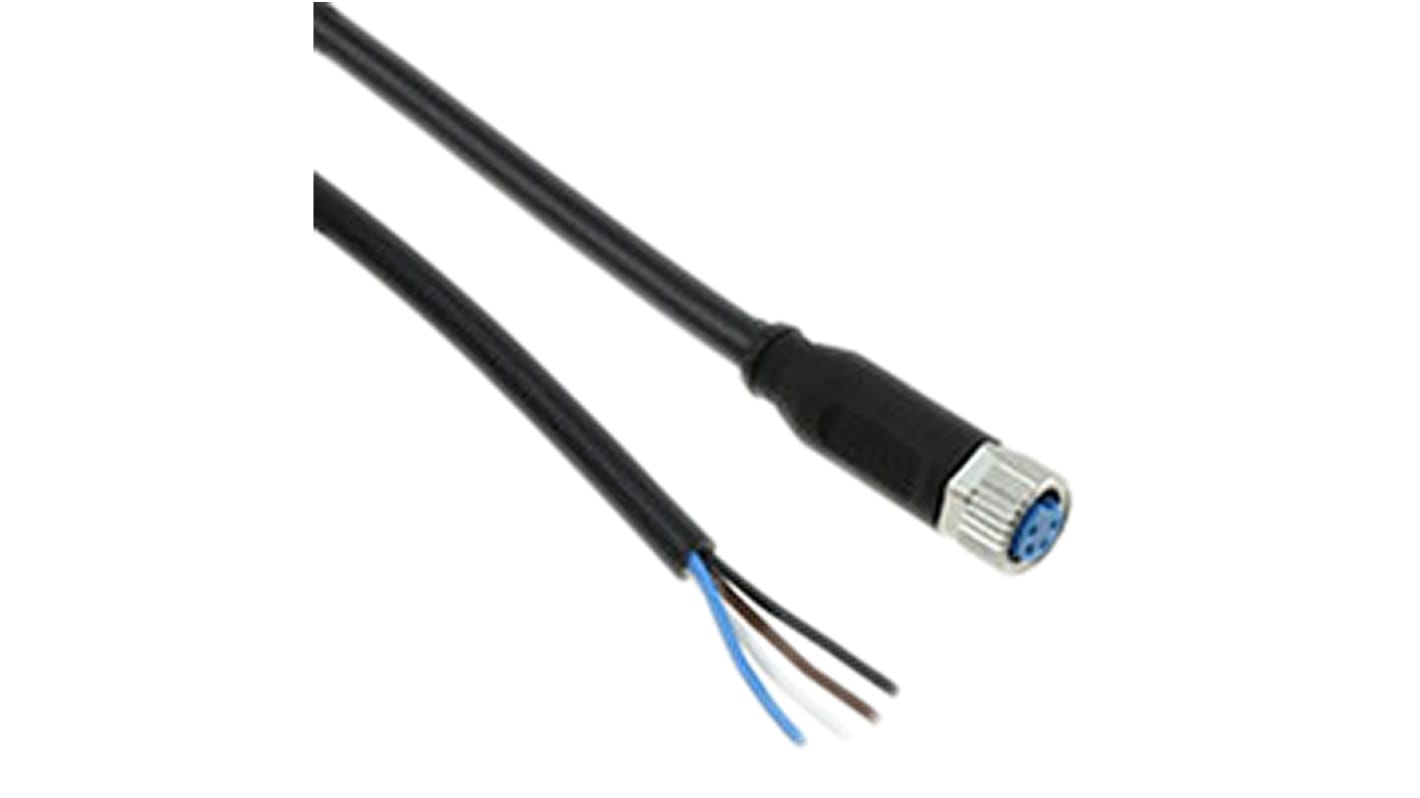

TE Connectivity Female 4 way M8 to Unterminated Sensor Actuator Cable, 1.5m
- RS Stock No.:
- 892-0416
- Mfr. Part No.:
- 2273003-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£13.50
(exc. VAT)
£16.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £13.50 |
| 5 - 9 | £12.85 |
| 10 + | £12.24 |
*price indicative
- RS Stock No.:
- 892-0416
- Mfr. Part No.:
- 2273003-1
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.25 mm² | |
| Sheath Colour | Black | |
| Sheath Material | Polyurethane PUR | |
| Length | 1.5m | |
| Connector 1 Gender | Female | |
| Connector 1 | M8 | |
| Connector 1 Number of Contacts | 4 | |
| Connector 2 | Unterminated | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 4 A | |
| Voltage Rating | 30 V ac/dc | |
| IP Rating | IP65, IP67 | |
| Outer Diameter | 4.4mm | |
| Cable Shape | Multicore | |
| Minimum Bend Radius | 44 mm | |
| Operating Temperature Range | -40 → +80 °C | |
| Connector 1 Housing Gender | Female | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -40°C | |
| Insulation Material | PP | |
| Standards Met | CSA, ELV Compliant, EN 60529, RoHS Compliant, UL | |
| American Wire Gauge | 24 AWG | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Cores 4 | ||
Cross Sectional Area 0.25 mm² | ||
Sheath Colour Black | ||
Sheath Material Polyurethane PUR | ||
Length 1.5m | ||
Connector 1 Gender Female | ||
Connector 1 M8 | ||
Connector 1 Number of Contacts 4 | ||
Connector 2 Unterminated | ||
Shielded/Unshielded Unshielded | ||
Current Rating 4 A | ||
Voltage Rating 30 V ac/dc | ||
IP Rating IP65, IP67 | ||
Outer Diameter 4.4mm | ||
Cable Shape Multicore | ||
Minimum Bend Radius 44 mm | ||
Operating Temperature Range -40 → +80 °C | ||
Connector 1 Housing Gender Female | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -40°C | ||
Insulation Material PP | ||
Standards Met CSA, ELV Compliant, EN 60529, RoHS Compliant, UL | ||
American Wire Gauge 24 AWG | ||
