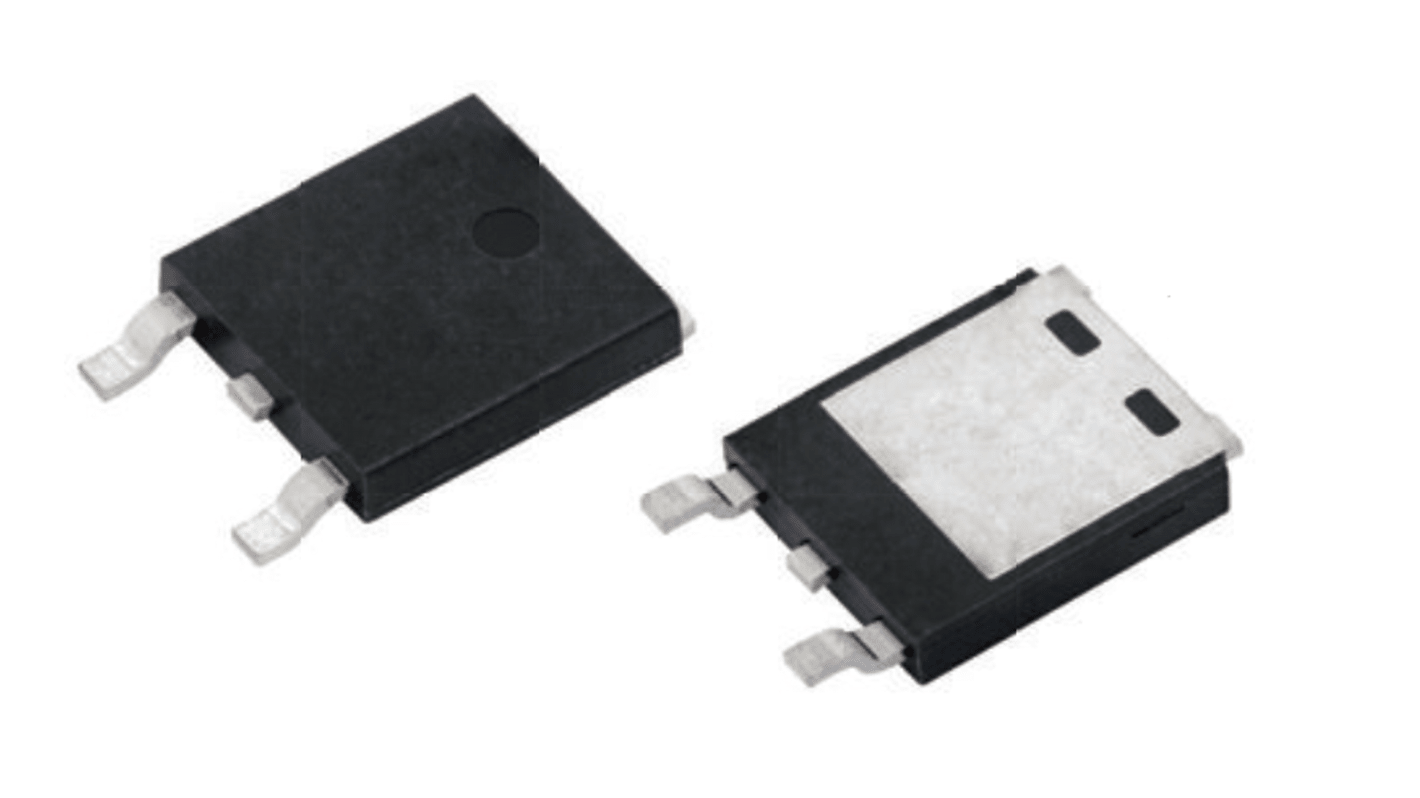

Vishay 120V 10A, Schottky Rectifier & Schottky Diode, SlimDPAK V10PWM12HM3/I
- RS Stock No.:
- 243-7060
- Mfr. Part No.:
- V10PWM12HM3/I
- Brand:
- Vishay
4550 In stock - FREE next working day delivery available
Price Each (In a Pack of 25)
£0.577
(exc. VAT)
£0.692
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.577 | £14.425 |
| 125 - 225 | £0.519 | £12.975 |
| 250 - 600 | £0.49 | £12.25 |
| 625 - 1225 | £0.473 | £11.825 |
| 1250 + | £0.461 | £11.525 |
*price indicative
- RS Stock No.:
- 243-7060
- Mfr. Part No.:
- V10PWM12HM3/I
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
The Vishay High current density surface-mount TMBS (trench MOS barrier schottky) rectifier use in low voltage high frequency DC/DC converters, freewheeling diodes, and polarity protection applications.
Very low profile - typical height of 1.3 mm
Trench MOS Schottky technology
Ideal for automated placement
Low forward voltage drop, low power losses
High efficiency operation
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
AEC-Q101 qualified available automotive ordering code base P/NHM3
Trench MOS Schottky technology
Ideal for automated placement
Low forward voltage drop, low power losses
High efficiency operation
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
AEC-Q101 qualified available automotive ordering code base P/NHM3
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SlimDPAK |
| Maximum Continuous Forward Current | 10A |
| Peak Reverse Repetitive Voltage | 120V |
| Series | eSMP® Series |
| Diode Configuration | Single |
| Rectifier Type | Schottky Rectifier |
| Diode Type | Schottky |
| Diode Technology | Schottky Barrier |
