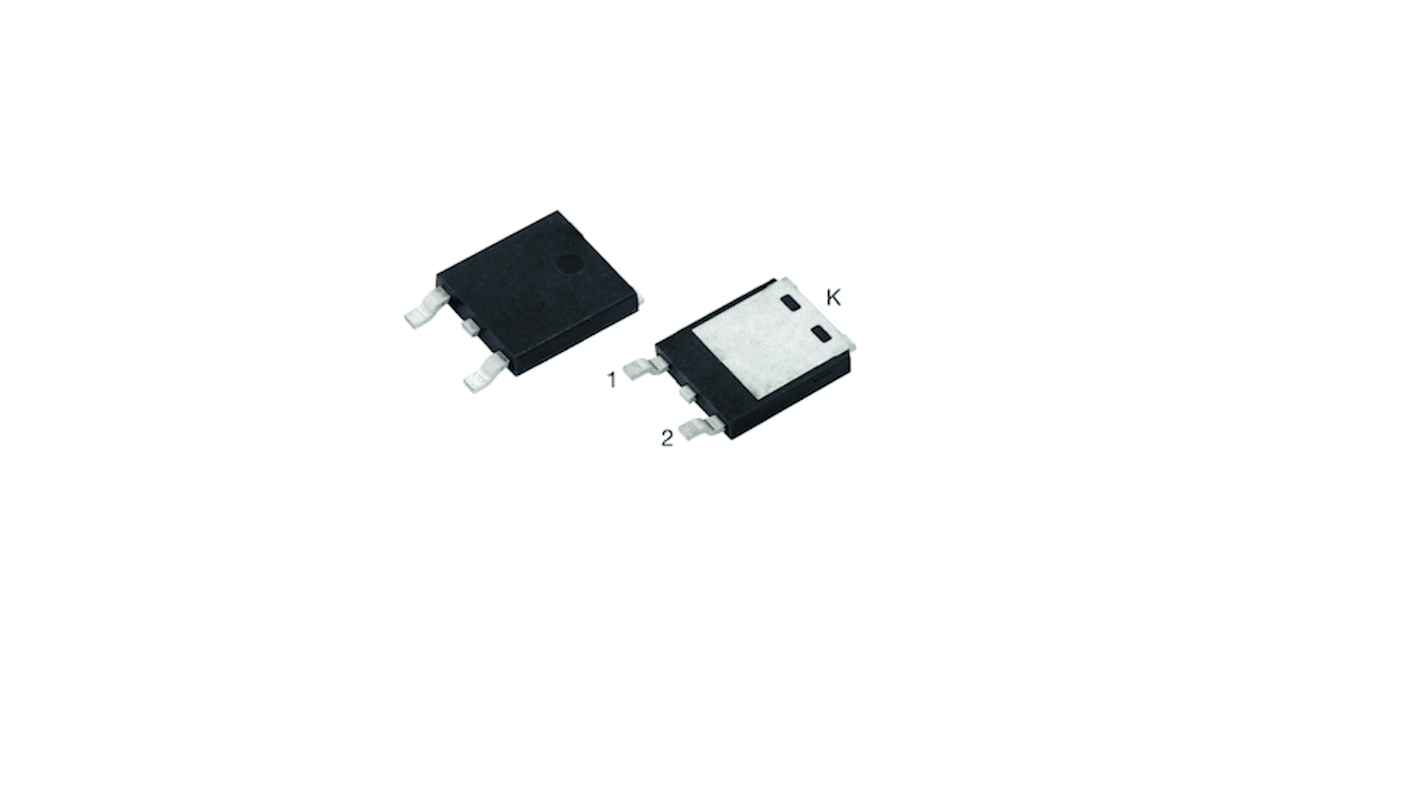

Vishay 120 V 6 A Schottky Barrier Schottky 3-Pin DPAK V6PWM12CHM3/I
- RS Stock No.:
- 244-9086
- Mfr. Part No.:
- V6PWM12CHM3/I
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 25 units)*
£14.875
(exc. VAT)
£17.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,550 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 225 | £0.595 | £14.88 |
| 250 - 600 | £0.536 | £13.40 |
| 625 - 1225 | £0.506 | £12.65 |
| 1250 - 2475 | £0.488 | £12.20 |
| 2500 + | £0.476 | £11.90 |
*price indicative
- RS Stock No.:
- 244-9086
- Mfr. Part No.:
- V6PWM12CHM3/I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Surface | |
| Product Type | Schottky Barrier | |
| Package Type | TO-252AE | |
| Maximum Continuous Forward Current If | 6A | |
| Peak Reverse Repetitive Voltage Vrrm | 120V | |
| Diode Configuration | 2x Common Cathode Pair | |
| Series | V6P | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Peak Reverse Current Ir | 4mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A | |
| Minimum Operating Temperature | -50°C | |
| Maximum Forward Voltage Vf | 0.6V | |
| Maximum Operating Temperature | 150°C | |
| Width | 1.4 mm | |
| Length | 6.32mm | |
| Height | 9.4mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Surface | ||
Product Type Schottky Barrier | ||
Package Type TO-252AE | ||
Maximum Continuous Forward Current If 6A | ||
Peak Reverse Repetitive Voltage Vrrm 120V | ||
Diode Configuration 2x Common Cathode Pair | ||
Series V6P | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Peak Reverse Current Ir 4mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 70A | ||
Minimum Operating Temperature -50°C | ||
Maximum Forward Voltage Vf 0.6V | ||
Maximum Operating Temperature 150°C | ||
Width 1.4 mm | ||
Length 6.32mm | ||
Height 9.4mm | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
The Vishay's high current density surface mount TMBS trench MOS barrier schottky rectifier have trench MOS schottky technology and used in low voltage high frequency DC/DC converters and polarity protection applications.
Very low profile - typical height of 1.3 mm
Low forward voltage drop, low power losses
High efficiency
AEC-Q101 qualified available
RoHS compliant
