Nexperia 100 V 8 A Schottky Barrier Rectifier Schottky 3-Pin CFP15B PMEG100T080ELPE-QZ
- RS Stock No.:
- 243-4845
- Mfr. Part No.:
- PMEG100T080ELPE-QZ
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 pack of 25 units)*
£10.225
(exc. VAT)
£12.275
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 4,800 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.409 | £10.23 |
| 50 - 475 | £0.40 | £10.00 |
| 500 - 975 | £0.256 | £6.40 |
| 1000 - 2475 | £0.23 | £5.75 |
| 2500 + | £0.224 | £5.60 |
*price indicative
- RS Stock No.:
- 243-4845
- Mfr. Part No.:
- PMEG100T080ELPE-QZ
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Schottky Barrier Rectifier | |
| Mount Type | Surface | |
| Package Type | CFP15B | |
| Maximum Continuous Forward Current If | 8A | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 23mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 170A | |
| Maximum Forward Voltage Vf | 810mV | |
| Maximum Operating Temperature | 175°C | |
| Peak Reverse Recovery Time trr | 19ns | |
| Length | 5.8mm | |
| Width | 4.3 mm | |
| Standards/Approvals | AEC-Q101 | |
| Height | 0.95mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Schottky Barrier Rectifier | ||
Mount Type Surface | ||
Package Type CFP15B | ||
Maximum Continuous Forward Current If 8A | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 23mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 170A | ||
Maximum Forward Voltage Vf 810mV | ||
Maximum Operating Temperature 175°C | ||
Peak Reverse Recovery Time trr 19ns | ||
Length 5.8mm | ||
Width 4.3 mm | ||
Standards/Approvals AEC-Q101 | ||
Height 0.95mm | ||
Automotive Standard AEC-Q101 | ||

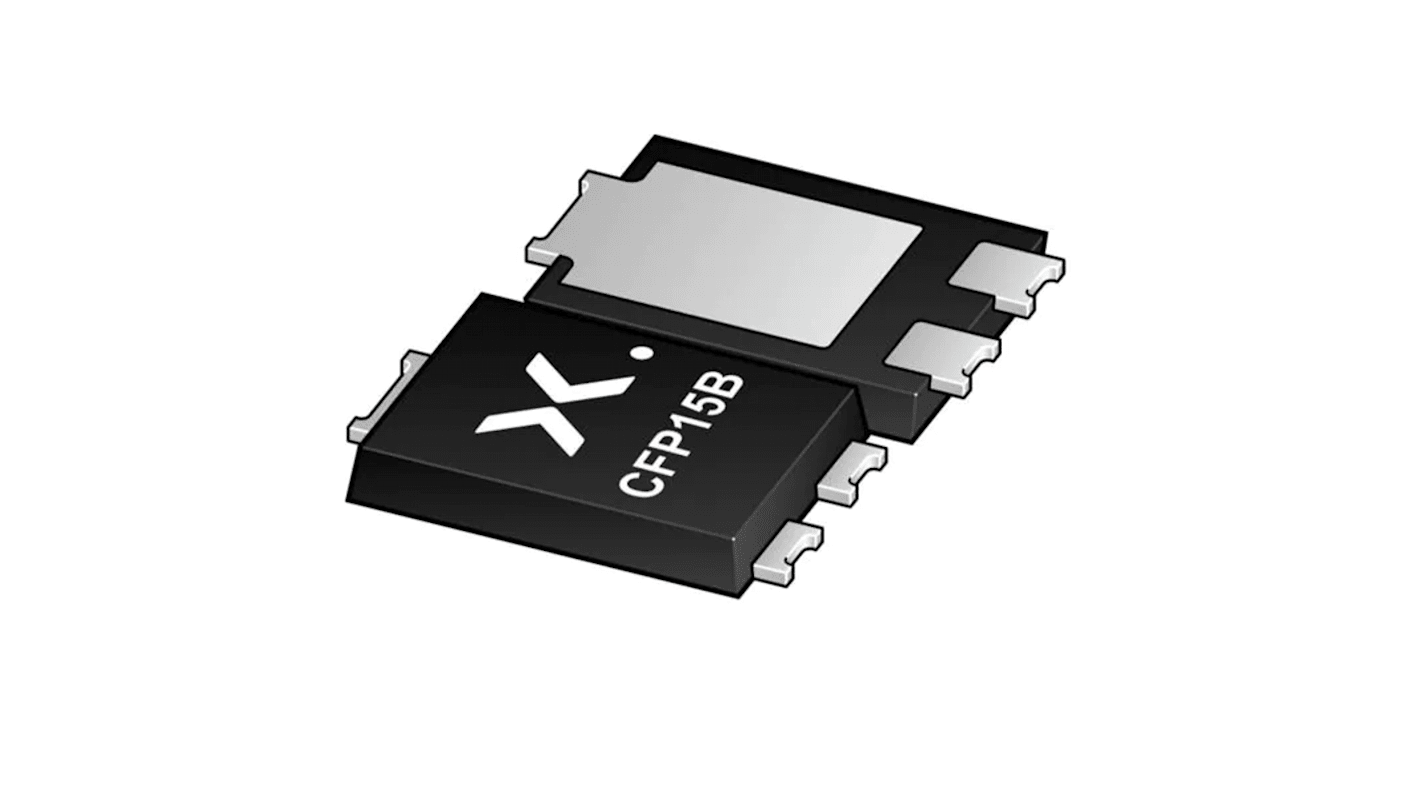

The Nexperia trench maximum efficiency general application (MEGA) schottky barrier rectifier is encapsulated in a CFP15B power and flat lead surface-mounted device (SMD) with plastic package.
Low forward voltage
Low Qrr and low IRM
Low leakage current
High power capability due to clip-bonding technology
Small and flat lead SMD power plastic package
Qualified according to AEC-Q101 and recommended for use in automotive applications
High efficiency DC-to-DC conversion
Automotive LED lighting
Switch mode power supply
Freewheeling applications
Reverse polarity protection
OR-ing
