Nexperia 100V 5A, Rectifier & Schottky Diode, CFP15B PMEG100T050ELPE-QZ
- RS Stock No.:
- 243-4839
- Mfr. Part No.:
- PMEG100T050ELPE-QZ
- Brand:
- Nexperia
Subtotal (1 reel of 5000 units)*
£965.00
(exc. VAT)
£1,160.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
5000 + | £0.193 | £965.00 |
*price indicative
- RS Stock No.:
- 243-4839
- Mfr. Part No.:
- PMEG100T050ELPE-QZ
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nexperia | |
Mounting Type | Surface Mount | |
Package Type | CFP15B | |
Maximum Continuous Forward Current | 5A | |
Peak Reverse Repetitive Voltage | 100V | |
Diode Configuration | Single | |
Select all | ||
---|---|---|
Brand Nexperia | ||
Mounting Type Surface Mount | ||
Package Type CFP15B | ||
Maximum Continuous Forward Current 5A | ||
Peak Reverse Repetitive Voltage 100V | ||
Diode Configuration Single | ||

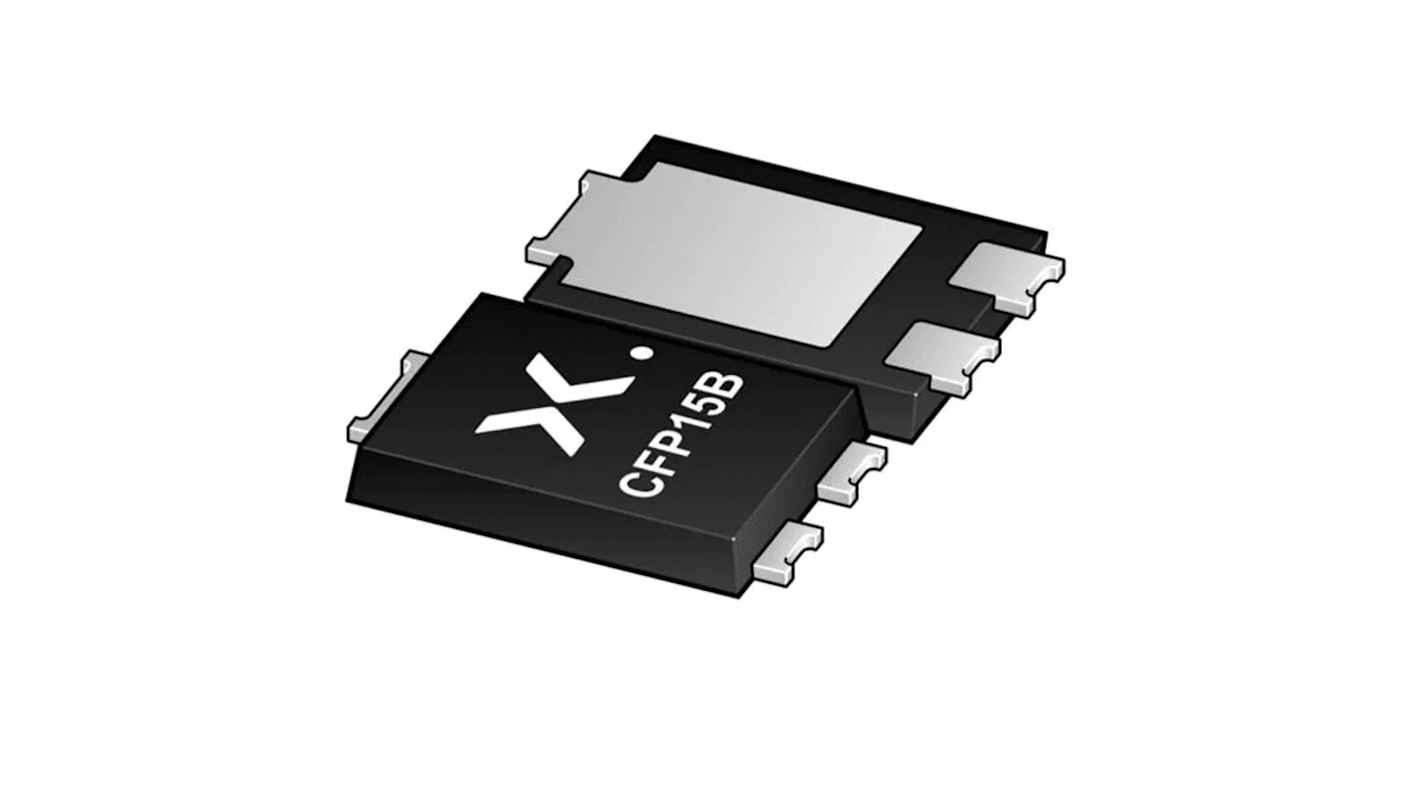

The Nexperia trench maximum efficiency general application (MEGA) schottky barrier rectifier is encapsulated in a CFP15B power and flat lead surface-mounted device (SMD) with plastic package.
Low forward voltage
Low Qrr and low IRM
Low leakage current
High power capability due to clip-bonding technology
Small and flat lead SMD power plastic package
Qualified according to AEC-Q101 and recommended for use in automotive applications
Low Qrr and low IRM
Low leakage current
High power capability due to clip-bonding technology
Small and flat lead SMD power plastic package
Qualified according to AEC-Q101 and recommended for use in automotive applications
High efficiency DC-to-DC conversion
Automotive LED lighting
Switch mode power supply
Freewheeling applications
Reverse polarity protection
OR-ing
Automotive LED lighting
Switch mode power supply
Freewheeling applications
Reverse polarity protection
OR-ing
