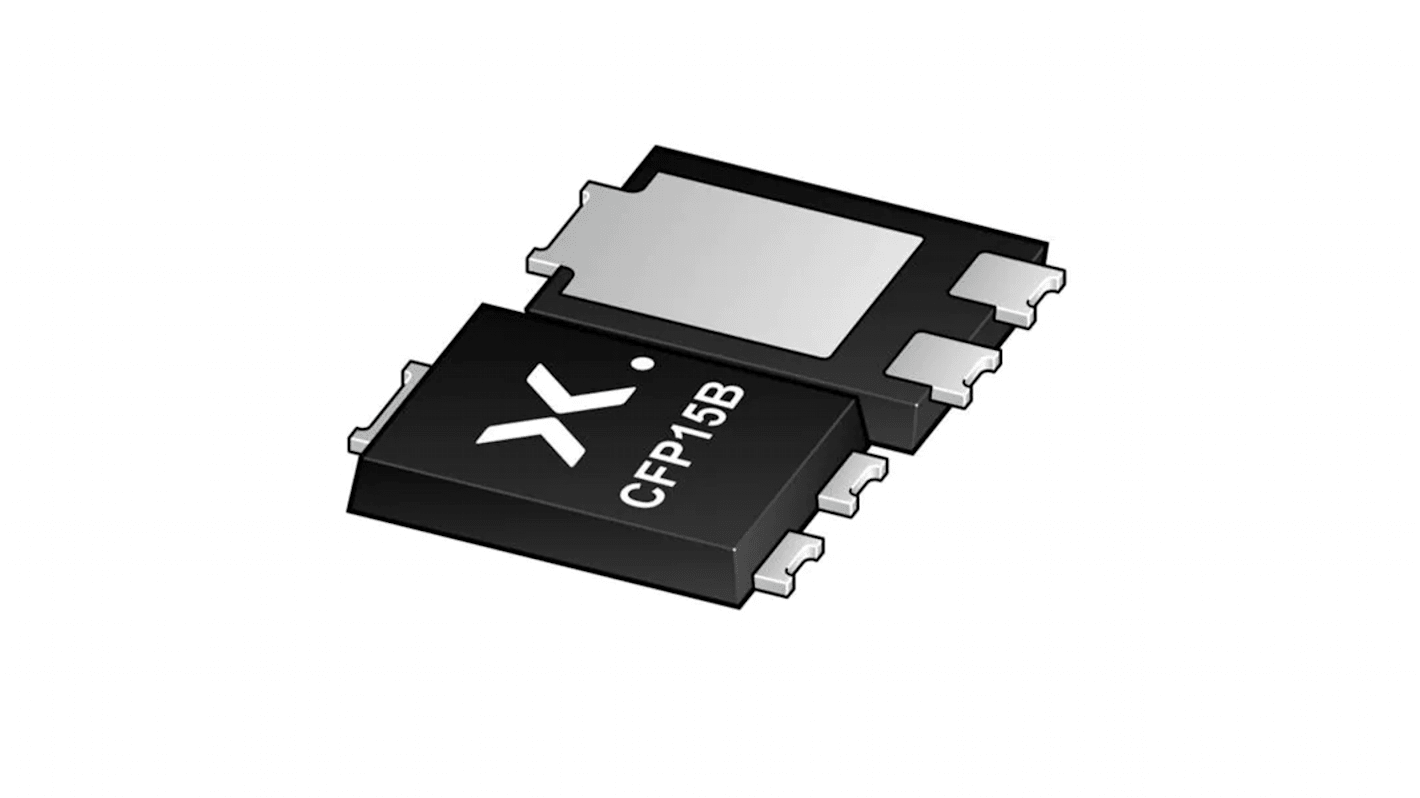

Nexperia 100V 3A, Rectifier & Schottky Diode, CFP15B PMEG100T030ELPEZ
- RS Stock No.:
- 243-4838
- Mfr. Part No.:
- PMEG100T030ELPEZ
- Brand:
- Nexperia
5000 In stock - FREE next working day delivery available
Price Each (In a Pack of 25)
£0.357
(exc. VAT)
£0.428
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.357 | £8.925 |
| 50 - 475 | £0.35 | £8.75 |
| 500 - 975 | £0.209 | £5.225 |
| 1000 - 2475 | £0.149 | £3.725 |
| 2500 + | £0.145 | £3.625 |
*price indicative
- RS Stock No.:
- 243-4838
- Mfr. Part No.:
- PMEG100T030ELPEZ
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
Product Details
The Nexperia low leakage current Trench MEGA Schottky barrier rectifier which is encapsulated in a CFP15B (SOT1289B) power. It is a flat lead surface mounted device (SMD) with plastic package.
Low forward voltage
Low Qrr and low IRM
Low leakage current
High power capability due to clip-bonding technology
Small and flat lead SMD power plastic package
Low Qrr and low IRM
Low leakage current
High power capability due to clip-bonding technology
Small and flat lead SMD power plastic package
High efficiency DC-to-DC conversion
Automotive LED lighting
Switch mode power supply
Freewheeling application
Reverse polarity protection
OR-ing
Automotive LED lighting
Switch mode power supply
Freewheeling application
Reverse polarity protection
OR-ing
Specifications
Attribute | Value |
|---|---|
| Mounting Type | PCB Mount |
| Package Type | CFP15B |
| Maximum Continuous Forward Current | 3A |
| Peak Reverse Repetitive Voltage | 100V |
| Diode Configuration | Single |
