Nexperia 60 V 2 A Schottky Barrier Rectifier Trench MEGA Schottky 3-Pin CFP15B PMEG060T040CLPE-QZ
- RS Stock No.:
- 243-4833
- Mfr. Part No.:
- PMEG060T040CLPE-QZ
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 pack of 25 units)*
£13.075
(exc. VAT)
£15.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 4,975 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.523 | £13.08 |
| 50 - 475 | £0.513 | £12.83 |
| 500 - 975 | £0.317 | £7.93 |
| 1000 - 2475 | £0.245 | £6.13 |
| 2500 + | £0.239 | £5.98 |
*price indicative
- RS Stock No.:
- 243-4833
- Mfr. Part No.:
- PMEG060T040CLPE-QZ
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Schottky Barrier Rectifier | |
| Mount Type | Surface | |
| Package Type | CFP15B | |
| Maximum Continuous Forward Current If | 2A | |
| Peak Reverse Repetitive Voltage Vrrm | 60V | |
| Series | PMEG060T040CLPE | |
| Diode Configuration | Single | |
| Rectifier Type | Trench MEGA Schottky | |
| Pin Count | 3 | |
| Maximum Forward Voltage Vf | 620mV | |
| Peak Reverse Current Ir | 1.2μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Recovery Time trr | 12ns | |
| Maximum Operating Temperature | 175°C | |
| Height | 0.95mm | |
| Standards/Approvals | AEC-Q101 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Schottky Barrier Rectifier | ||
Mount Type Surface | ||
Package Type CFP15B | ||
Maximum Continuous Forward Current If 2A | ||
Peak Reverse Repetitive Voltage Vrrm 60V | ||
Series PMEG060T040CLPE | ||
Diode Configuration Single | ||
Rectifier Type Trench MEGA Schottky | ||
Pin Count 3 | ||
Maximum Forward Voltage Vf 620mV | ||
Peak Reverse Current Ir 1.2μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 60A | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Recovery Time trr 12ns | ||
Maximum Operating Temperature 175°C | ||
Height 0.95mm | ||
Standards/Approvals AEC-Q101 | ||
Automotive Standard AEC-Q101 | ||

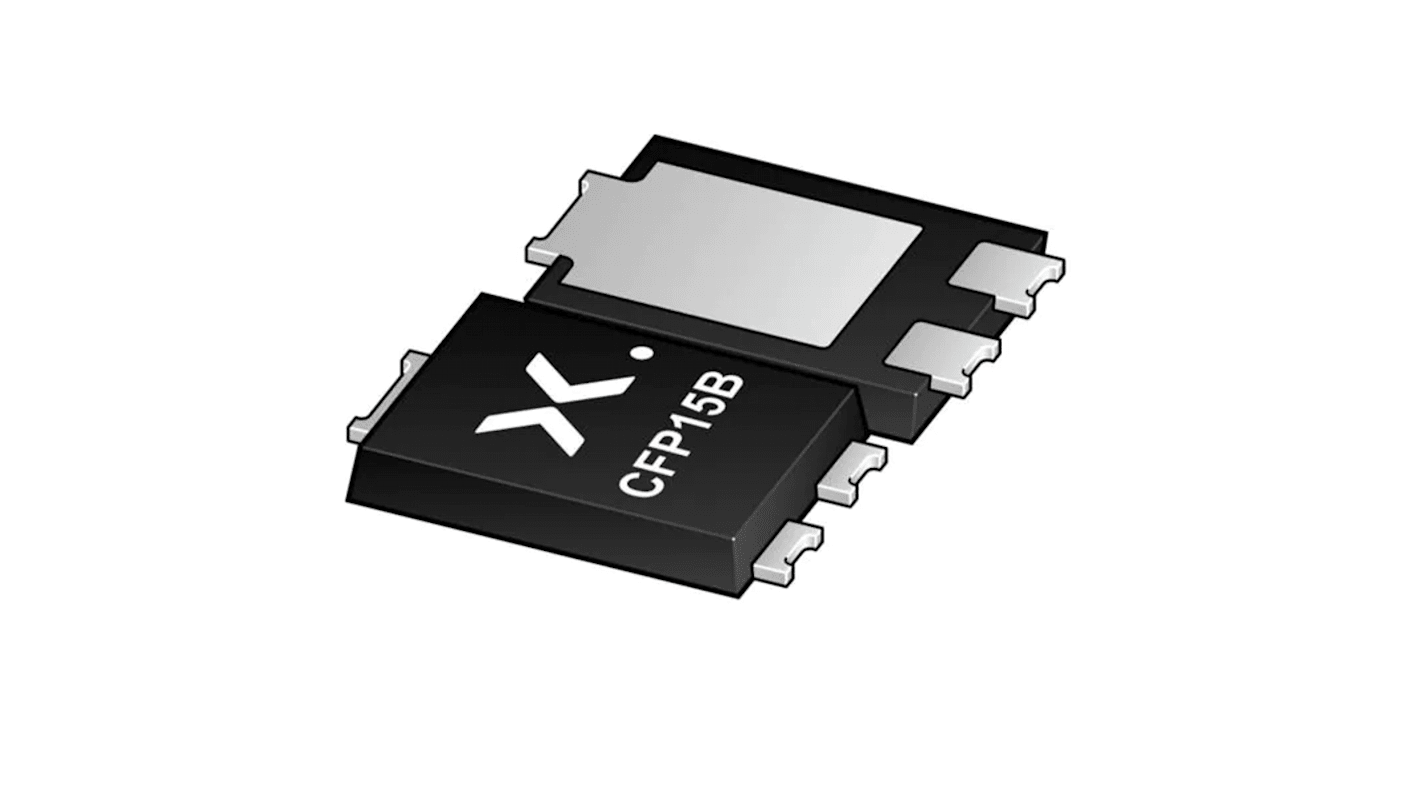

The Nexperia trench maximum efficiency general application (MEGA) duel schottky barrier rectifier is in common cathode configuration encapsulated in a CFP15B (SOT1289B) power and flat lead surface-mounted device (SMD) with plastic package.
Low forward voltage
Low leakage current due to Trench MEGA Schottky technology
Power and flat lead SMD plastic package
High power capability due to clip-bond technology
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications
Freewheeling applications
