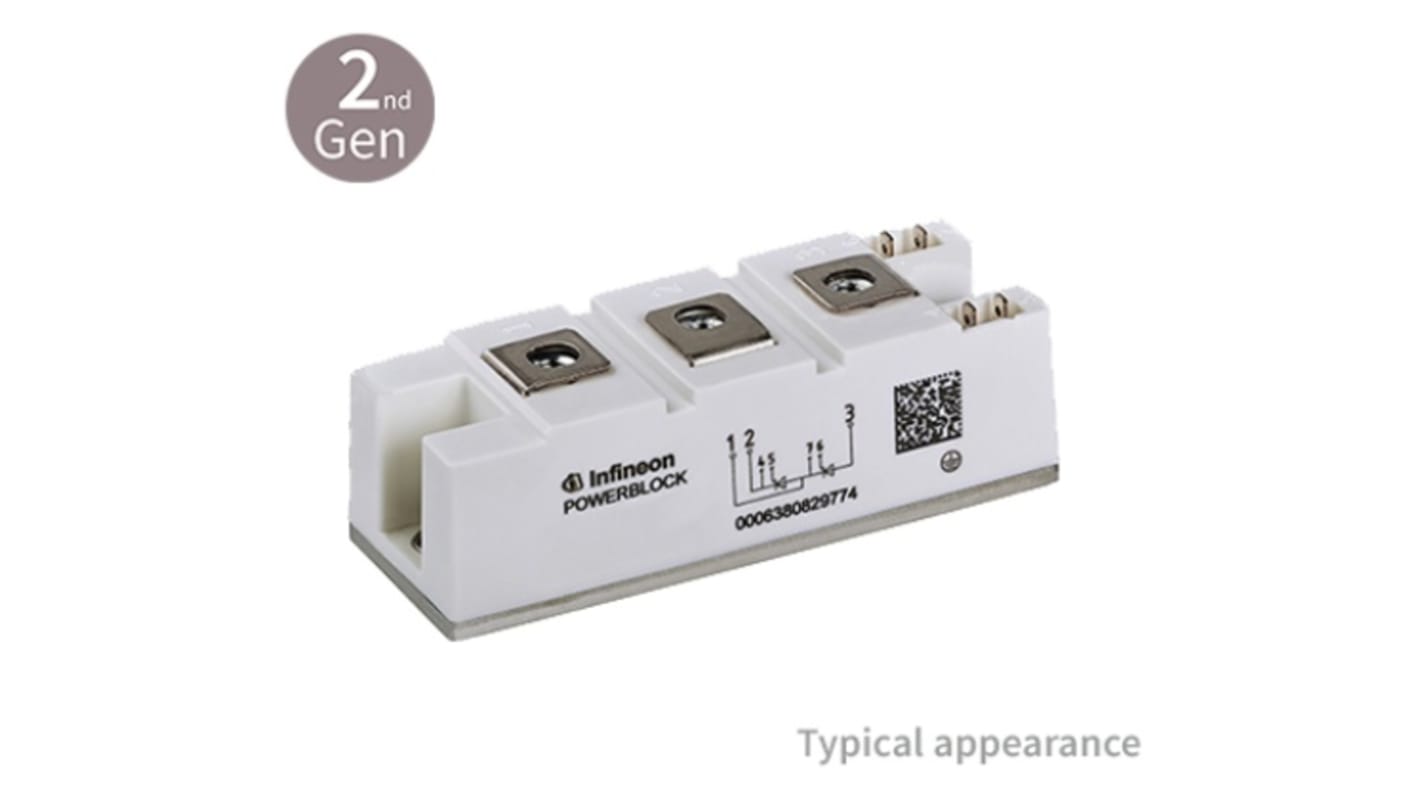

Infineon 2200V 226A, Dual Rectifier Diode, Eco Block DD220N22SHPSA1
- RS Stock No.:
- 217-7158
- Mfr. Part No.:
- DD220N22SHPSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tray of 8 units)*
£304.64
(exc. VAT)
£365.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 8 - 8 | £38.08 | £304.64 |
| 16 - 16 | £36.176 | £289.41 |
| 24 + | £33.891 | £271.13 |
*price indicative
- RS Stock No.:
- 217-7158
- Mfr. Part No.:
- DD220N22SHPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Mounting Type | Screw Mount | |
| Package Type | Eco Block | |
| Maximum Continuous Forward Current | 226A | |
| Peak Reverse Repetitive Voltage | 2200V | |
| Rectifier Type | General Purpose | |
| Diode Type | Rectifier | |
| Number of Elements per Chip | 2 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Mounting Type Screw Mount | ||
Package Type Eco Block | ||
Maximum Continuous Forward Current 226A | ||
Peak Reverse Repetitive Voltage 2200V | ||
Rectifier Type General Purpose | ||
Diode Type Rectifier | ||
Number of Elements per Chip 2 | ||
Infineon DD220N22S Series Diode, 226A Maximum Continuous Forward Current, 2200V Peak Reverse Repetitive Voltage - DD220N22SHPSA1
This high current rectifier diode is designed for demanding applications. The Eco Block diode features a robust dual diode configuration, providing reliable performance in various environments. With a forward current rating of 226A and a peak reverse voltage capacity of 2200V, this product is ideal for high-power applications in the automation, electronics, and electrical industries.
Features & Benefits
• Easily mounts using screw connections for versatile installation
• Dual diode design offers increased reliability and efficiency
• Capable of withstanding peak surge currents up to 5750A
• Electrically insulated base plate enhances safety during operation
• General-purpose usage makes it suitable for diverse applications
• Dual diode design offers increased reliability and efficiency
• Capable of withstanding peak surge currents up to 5750A
• Electrically insulated base plate enhances safety during operation
• General-purpose usage makes it suitable for diverse applications
Applications
• Utilised in rectifiers for drive
• Suitable for uninterruptible power supplies (UPS)
• Used in battery charging systems
• Ideal for industrial automation requiring high surge handling
• Suitable for uninterruptible power supplies (UPS)
• Used in battery charging systems
• Ideal for industrial automation requiring high surge handling
What is the maximum continuous forward current for this diode?
The product can handle a continuous forward current of up to 226A, ensuring it can support heavy loads in various applications.
How does the peak reverse voltage affect its performance?
With a peak reverse voltage rating of 2200V, the diode effectively manages high-voltage conditions, providing reliability in high-power setups.
What mounting options are available for this device?
This diode is designed for screw mounting, making installation straightforward and secure for different applications.
What thermal specifications should I consider when using this diode?
The thermal resistance is optimised for efficient heat dissipation, with a maximum junction temperature rating of 150°C, ensuring dependable operation under load.
