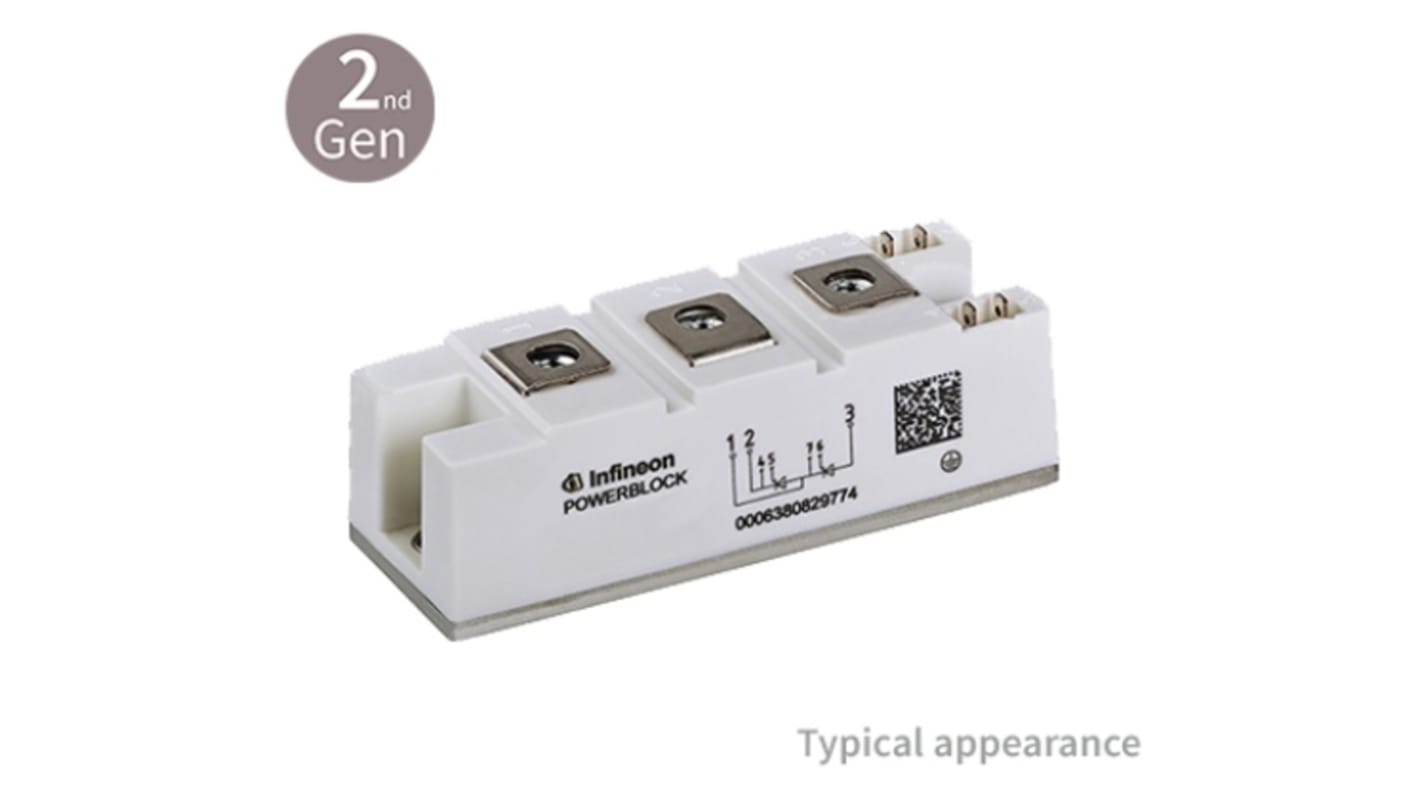

Infineon 1600 V 220 A Netz-Dioden-Modul Rectifier Diode Module Rectifier Diode 3-Pin Eco Block DD220N16SHPSA1
- RS Stock No.:
- 217-7157
- Mfr. Part No.:
- DD220N16SHPSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£37.67
(exc. VAT)
£45.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 8 unit(s) shipping from 12 March 2026
- Plus 8 unit(s) shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £37.67 |
| 2 - 4 | £35.03 |
| 5 - 9 | £32.77 |
| 10 - 24 | £30.52 |
| 25 + | £28.25 |
*price indicative
- RS Stock No.:
- 217-7157
- Mfr. Part No.:
- DD220N16SHPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Mount Type | Screw | |
| Product Type | Netz-Dioden-Modul Rectifier Diode Module | |
| Package Type | Eco Block | |
| Maximum Continuous Forward Current If | 220A | |
| Peak Reverse Repetitive Voltage Vrrm | 1600V | |
| Series | DD220N16S | |
| Diode Configuration | Series | |
| Rectifier Type | Rectifier Diode | |
| Pin Count | 3 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5750A | |
| Minimum Operating Temperature | -40°C | |
| Peak Reverse Current Ir | 1mA | |
| Maximum Forward Voltage Vf | 1.39V | |
| Maximum Operating Temperature | 130°C | |
| Standards/Approvals | No | |
| Length | 94mm | |
| Diameter | 8.5 mm | |
| Height | 30mm | |
| Width | 34 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Mount Type Screw | ||
Product Type Netz-Dioden-Modul Rectifier Diode Module | ||
Package Type Eco Block | ||
Maximum Continuous Forward Current If 220A | ||
Peak Reverse Repetitive Voltage Vrrm 1600V | ||
Series DD220N16S | ||
Diode Configuration Series | ||
Rectifier Type Rectifier Diode | ||
Pin Count 3 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 5750A | ||
Minimum Operating Temperature -40°C | ||
Peak Reverse Current Ir 1mA | ||
Maximum Forward Voltage Vf 1.39V | ||
Maximum Operating Temperature 130°C | ||
Standards/Approvals No | ||
Length 94mm | ||
Diameter 8.5 mm | ||
Height 30mm | ||
Width 34 mm | ||
Automotive Standard No | ||
The Infineon rectifier diode 34 mm Eco Block 1600 V, 226 A module for phase control in in solder bond technology. This is the second generation with increase current rating. If you need additional features or higher performance go to pressure contact technology
Solder bond technology
Industrial standard package
Electrically insulated base plate
