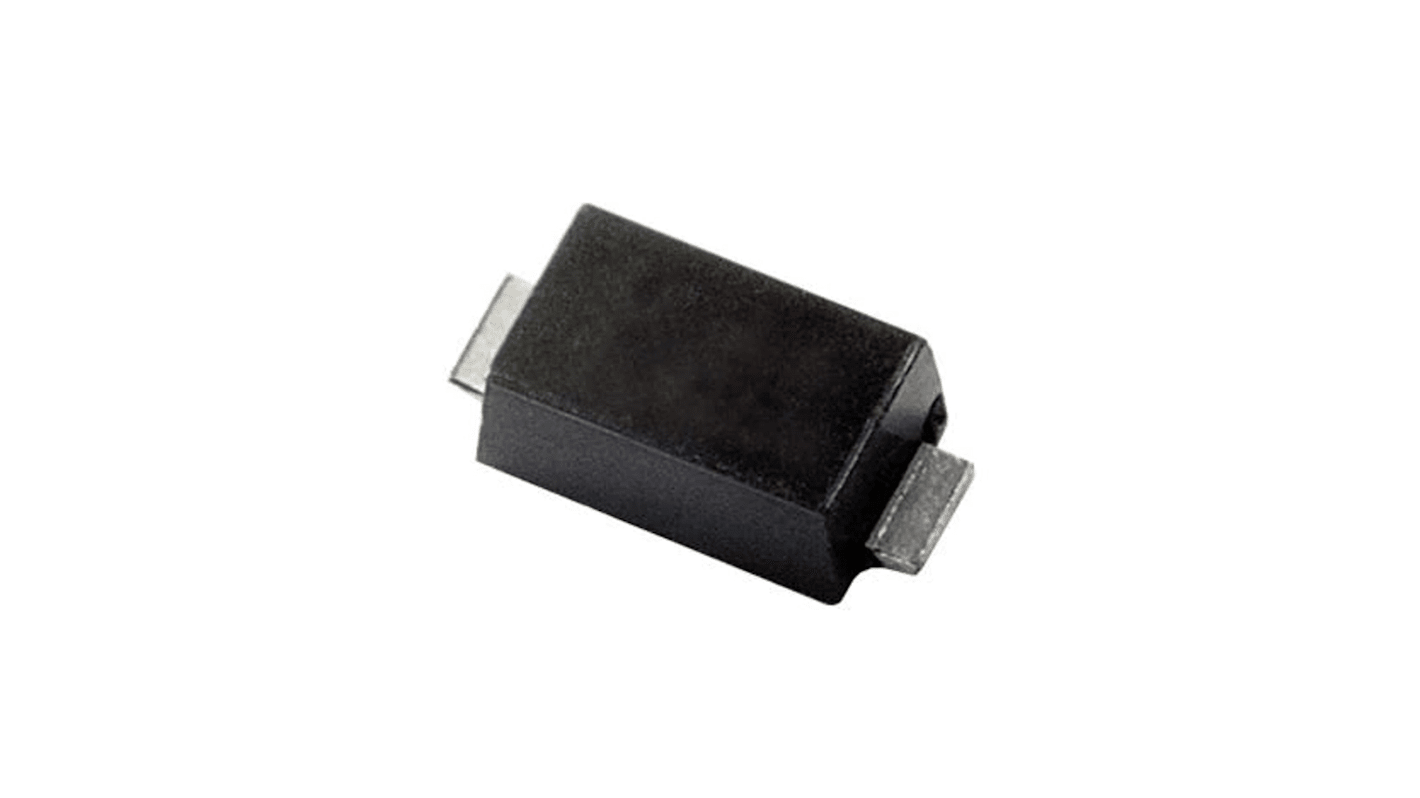

STMicroelectronics 60V 1A, Schottky Diode, 2-Pin SOD123Flat STPS1L60ZF
- RS Stock No.:
- 189-4471
- Mfr. Part No.:
- STPS1L60ZF
- Brand:
- STMicroelectronics
Subtotal (1 pack of 50 units)*
£7.00
(exc. VAT)
£8.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7,700 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 + | £0.14 | £7.00 |
*price indicative
- RS Stock No.:
- 189-4471
- Mfr. Part No.:
- STPS1L60ZF
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Mounting Type | Surface Mount | |
Package Type | SOD123Flat | |
Maximum Continuous Forward Current | 1A | |
Peak Reverse Repetitive Voltage | 60V | |
Diode Configuration | Single | |
Rectifier Type | Schottky Rectifier | |
Diode Type | Schottky | |
Pin Count | 2 | |
Maximum Forward Voltage Drop | 750mV | |
Number of Elements per Chip | 1 | |
Diode Technology | Schottky | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Mounting Type Surface Mount | ||
Package Type SOD123Flat | ||
Maximum Continuous Forward Current 1A | ||
Peak Reverse Repetitive Voltage 60V | ||
Diode Configuration Single | ||
Rectifier Type Schottky Rectifier | ||
Diode Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Drop 750mV | ||
Number of Elements per Chip 1 | ||
Diode Technology Schottky | ||
Axial and Surface Mount Power Schottky rectifiers suited to Switched Mode Power Supplies and high frequency DC to DC converters. Packaged in SMA and DO-41, this device is especially intended for use in low voltage, high frequency inverters and small battery chargers.
Negligible switching losses
Surface mount miniature package
Low forward voltage drop
Surface mount miniature package
Low forward voltage drop
