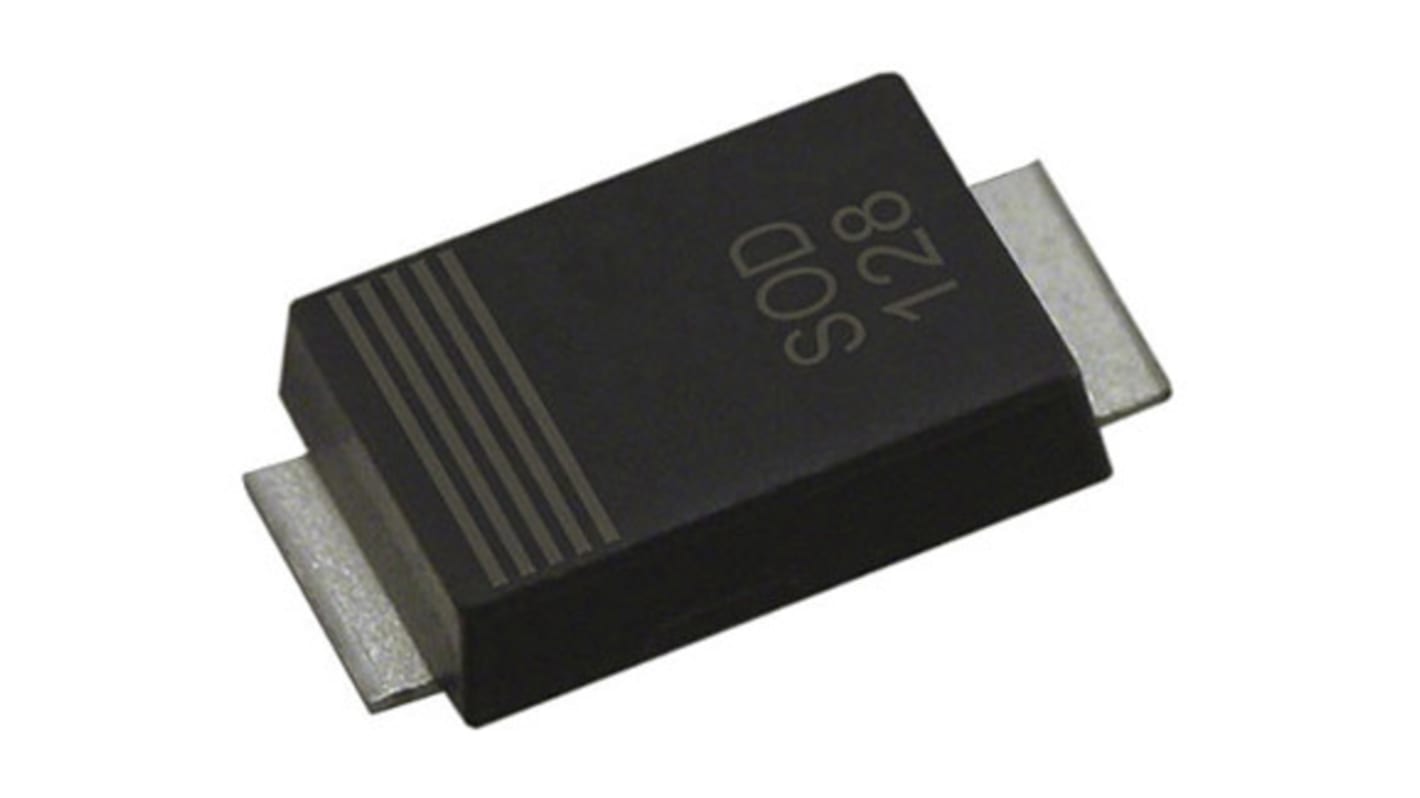

STMicroelectronics 60V 3A, Schottky Diode, 2-Pin SOD128Flat STPS360AF

View this category
Bulk discount available

Subtotal (1 pack of 50 units)*

£6.45

(exc. VAT)

£7.75

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,950 unit(s) shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
50 - 50£0.129£6.45
100 - 450£0.077£3.85
500 - 950£0.072£3.60
1000 - 2950£0.057£2.85
3000 +£0.056£2.80

*price indicative

Packaging Options:
RS Stock No.:
163-9828
Mfr. Part No.:
STPS360AF
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Mounting Type

Surface Mount

Package Type

SOD128Flat

Maximum Continuous Forward Current

3A

Peak Reverse Repetitive Voltage

60V

Diode Configuration

Single

Rectifier Type

Schottky Rectifier

Diode Type

Schottky

Pin Count

2

Maximum Forward Voltage Drop

610mV

Number of Elements per Chip

1

Diode Technology

Schottky

Peak Non-Repetitive Forward Surge Current

65A

ST’s M series Schottky diodes represent the intermediate trade-off between forward voltage drop, VF, and leakage current, IR, and covers voltage ratings from 60 V up to 200 V. By their intrinsic characteristics, these power Schottky diodes are dedicated to high power density applications such as semi-slim or slim-type notebook adaptors, telecom or desktop SMPS

This high voltage Schottky barrier rectifier device is packaged in SOD128Flat and designed for high frequency miniature switched mode power supplies and on board DC to DC converters

Negligible switching losses
High junction temperature capability
Low leakage current
Good trade-off between leakage current and forward voltage drop
