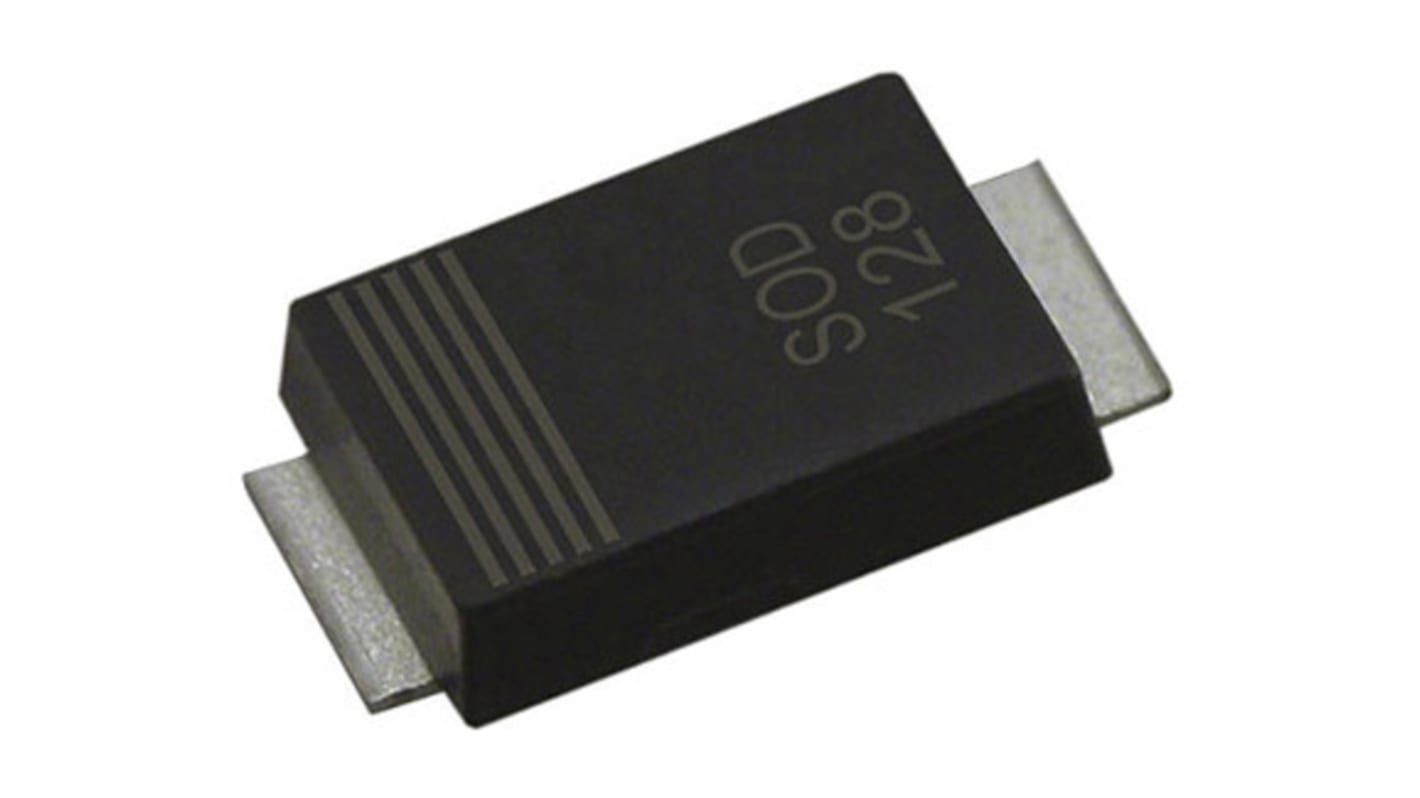

STMicroelectronics 60 V 3 A Diode Schottky 2-Pin SOD-128
- RS Stock No.:
- 163-7331
- Mfr. Part No.:
- STPS360AF
- Brand:
- STMicroelectronics
Subtotal (1 reel of 3000 units)*
£267.00
(exc. VAT)
£321.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.089 | £267.00 |
*price indicative
- RS Stock No.:
- 163-7331
- Mfr. Part No.:
- STPS360AF
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | SOD-128 | |
| Maximum Continuous Forward Current If | 3A | |
| Peak Reverse Repetitive Voltage Vrrm | 60V | |
| Diode Configuration | Single | |
| Series | STPS360 | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 65A | |
| Minimum Operating Temperature | -40°C | |
| Peak Reverse Current Ir | 30mA | |
| Maximum Forward Voltage Vf | 610mV | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Length | 4.8mm | |
| Width | 2.5 mm | |
| Height | 1.03mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type SOD-128 | ||
Maximum Continuous Forward Current If 3A | ||
Peak Reverse Repetitive Voltage Vrrm 60V | ||
Diode Configuration Single | ||
Series STPS360 | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 65A | ||
Minimum Operating Temperature -40°C | ||
Peak Reverse Current Ir 30mA | ||
Maximum Forward Voltage Vf 610mV | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Length 4.8mm | ||
Width 2.5 mm | ||
Height 1.03mm | ||
Automotive Standard No | ||
ST’s M series Schottky diodes represent the intermediate trade-off between forward voltage drop, VF, and leakage current, IR, and covers voltage ratings from 60 V up to 200 V. By their intrinsic characteristics, these power Schottky diodes are dedicated to high power density applications such as semi-slim or slim-type notebook adaptors, telecom or desktop SMPS
This high voltage Schottky barrier rectifier device is packaged in SOD128Flat and designed for high frequency miniature Switched Mode power supplies and on board DC to DC converters
Negligible switching losses
High junction temperature capability
Low leakage current
Good trade-off between leakage current and forward voltage drop
