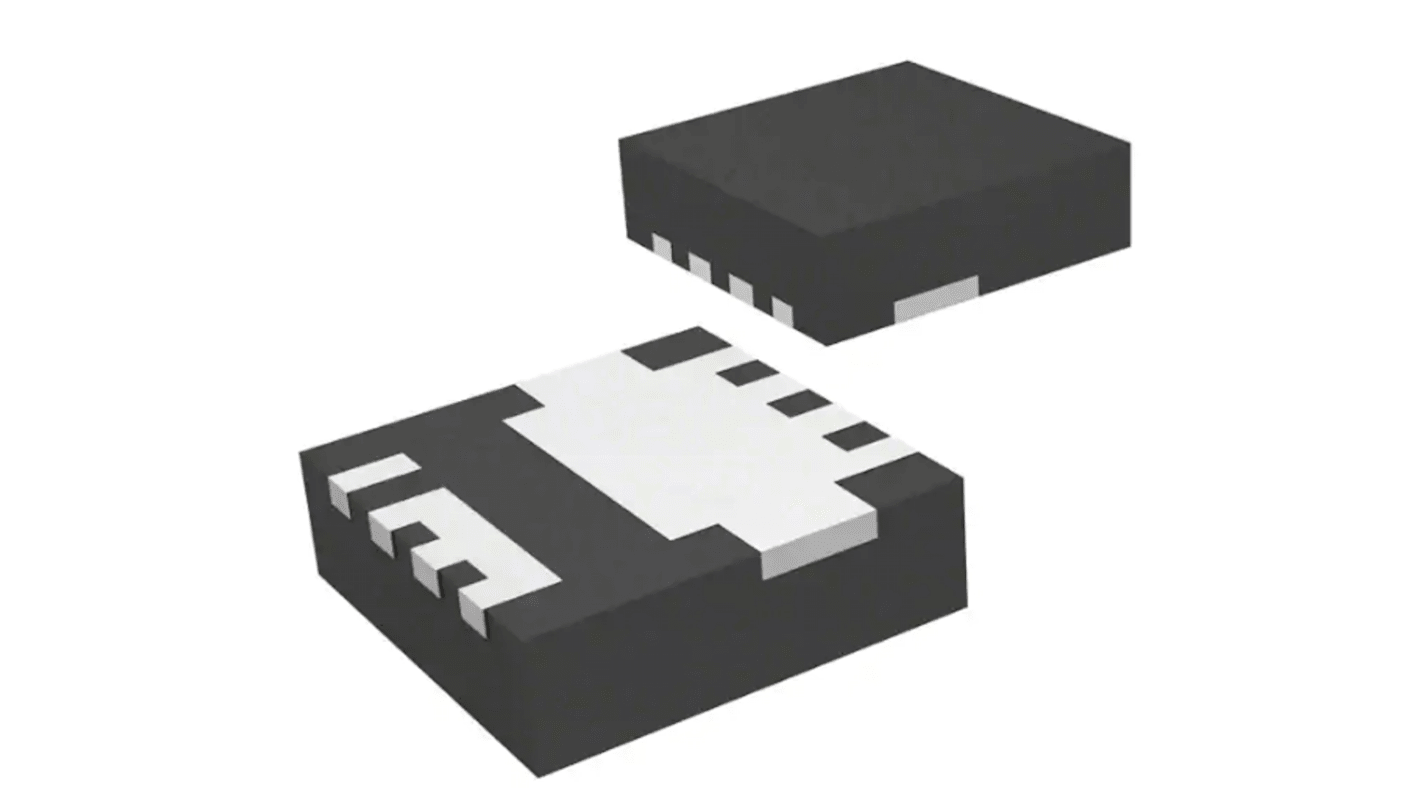

STMicroelectronics 100V 8A, Schottky Diode, 5-Pin PowerFLAT STPS8H100DEE-TR
- RS Stock No.:
- 189-4461
- Mfr. Part No.:
- STPS8H100DEE-TR
- Brand:
- STMicroelectronics
Subtotal (1 pack of 10 units)*
£6.98
(exc. VAT)
£8.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,740 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £0.698 | £6.98 |
*price indicative
- RS Stock No.:
- 189-4461
- Mfr. Part No.:
- STPS8H100DEE-TR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Mounting Type | Surface Mount | |
Package Type | PowerFLAT | |
Maximum Continuous Forward Current | 8A | |
Peak Reverse Repetitive Voltage | 100V | |
Diode Configuration | Single | |
Rectifier Type | Schottky Rectifier | |
Diode Type | Schottky | |
Pin Count | 5 | |
Maximum Forward Voltage Drop | 900mV | |
Number of Elements per Chip | 1 | |
Diode Technology | Schottky | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Mounting Type Surface Mount | ||
Package Type PowerFLAT | ||
Maximum Continuous Forward Current 8A | ||
Peak Reverse Repetitive Voltage 100V | ||
Diode Configuration Single | ||
Rectifier Type Schottky Rectifier | ||
Diode Type Schottky | ||
Pin Count 5 | ||
Maximum Forward Voltage Drop 900mV | ||
Number of Elements per Chip 1 | ||
Diode Technology Schottky | ||
This Schottky rectifier is designed for switch mode power supply and high frequency DC to DC converters. Packaged in PowerFLAT™, this device is intended for use in low voltage, high frequency, inverters, free-wheeling, bypass diode and polarity protection applications. Its low profile was especially designed to be used in applications with space-saving constraints.
Very low conduction losses
Negligible switching losses
Extremely fast switching
Low thermal resistance
High junction temperature
Negligible switching losses
Extremely fast switching
Low thermal resistance
High junction temperature
