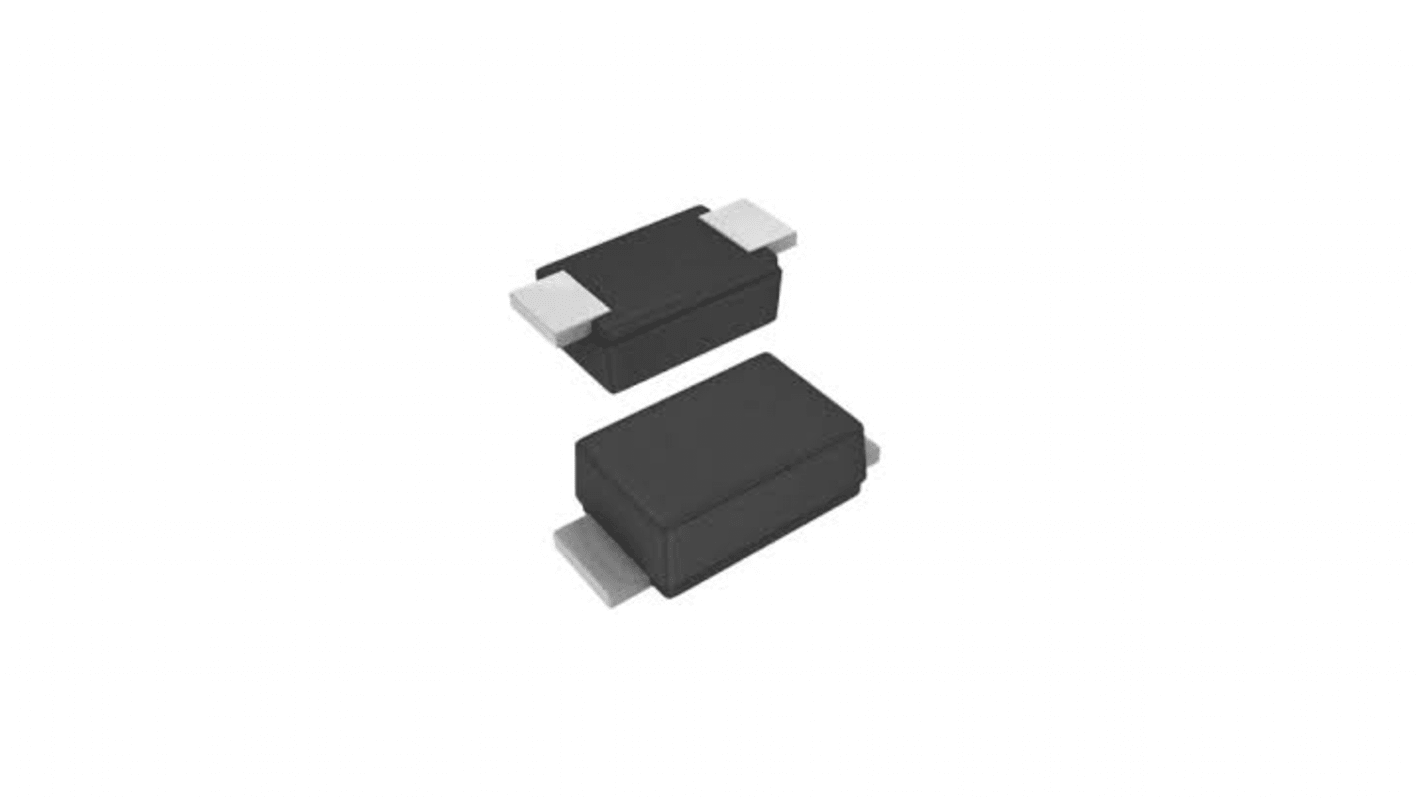

STMicroelectronics 100V 2A, Schottky Diode, 2-Pin SOD123Flat STPS2H100ZFY
- RS Stock No.:
- 189-4332
- Mfr. Part No.:
- STPS2H100ZFY
- Brand:
- STMicroelectronics
Subtotal (1 pack of 25 units)*
£3.85
(exc. VAT)
£4.625
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14,425 unit(s) ready to ship
- Plus 999,985,550 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
25 + | £0.154 | £3.85 |
*price indicative
- RS Stock No.:
- 189-4332
- Mfr. Part No.:
- STPS2H100ZFY
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Mounting Type | Surface Mount | |
Package Type | SOD123Flat | |
Maximum Continuous Forward Current | 2A | |
Peak Reverse Repetitive Voltage | 100V | |
Diode Configuration | Single | |
Rectifier Type | Schottky Rectifier | |
Diode Type | Schottky | |
Pin Count | 2 | |
Maximum Forward Voltage Drop | 960mV | |
Number of Elements per Chip | 1 | |
Diode Technology | Schottky | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Mounting Type Surface Mount | ||
Package Type SOD123Flat | ||
Maximum Continuous Forward Current 2A | ||
Peak Reverse Repetitive Voltage 100V | ||
Diode Configuration Single | ||
Rectifier Type Schottky Rectifier | ||
Diode Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Drop 960mV | ||
Number of Elements per Chip 1 | ||
Diode Technology Schottky | ||
Single chip Schottky rectifiers suited to automotive applications, such as lighting, diesel injection, or engine control unit. Packaged in SOD123Flat, this device is especially intended for surface mounting and used in high frequency converters, free wheeling and reverse polarity protection in automotive applications.
High junction temperature capability
Low leakage current
Negligible switching losses
PPAP capable
Low leakage current
Negligible switching losses
PPAP capable
