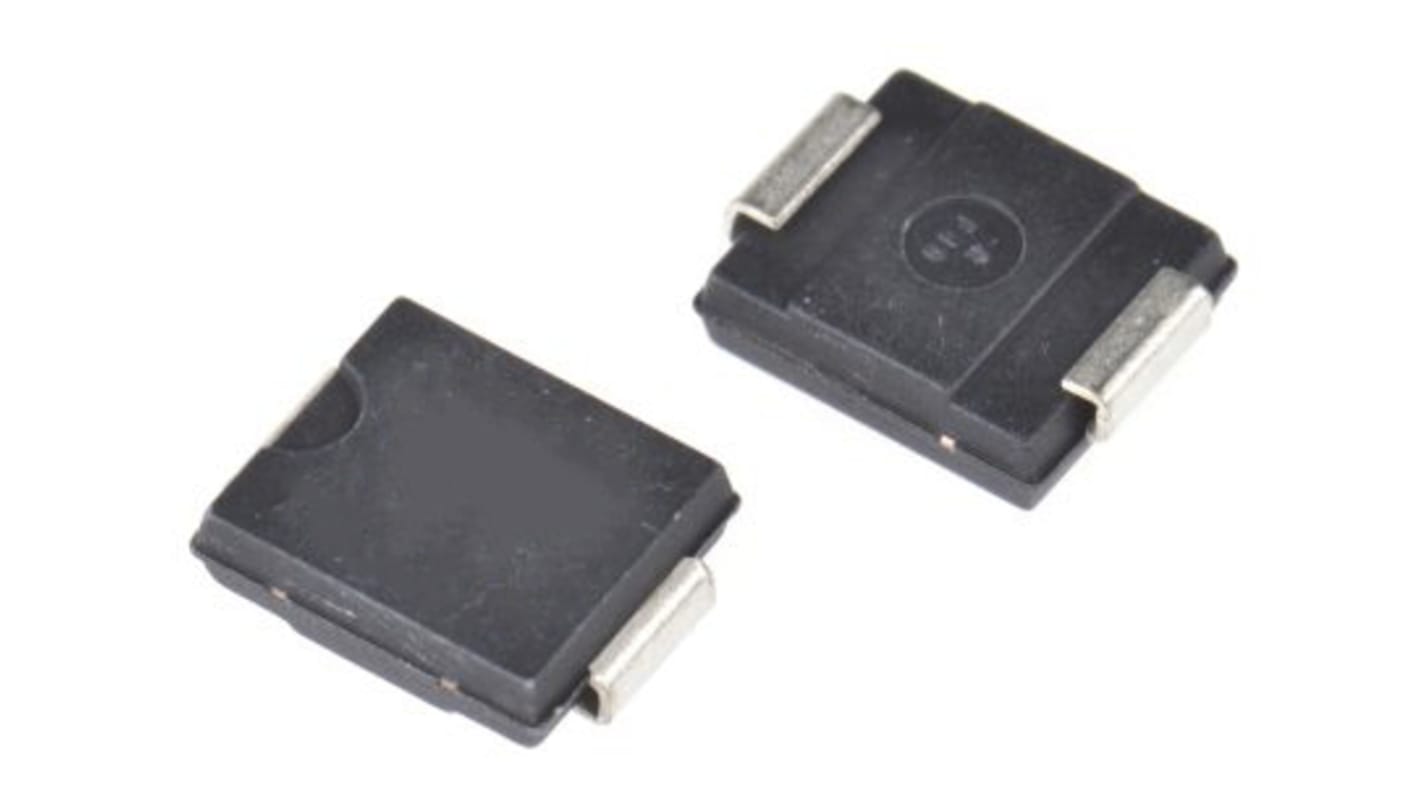

STMicroelectronics 60V 3A, Schottky Diode, 2-Pin DO-214AA STPS5L60SY
- RS Stock No.:
- 189-4444
- Mfr. Part No.:
- STPS5L60SY
- Brand:
- STMicroelectronics
Subtotal (1 pack of 10 units)*
£3.97
(exc. VAT)
£4.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3,830 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £0.397 | £3.97 |
*price indicative
- RS Stock No.:
- 189-4444
- Mfr. Part No.:
- STPS5L60SY
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Mounting Type | Surface Mount | |
Package Type | DO-214AA (SMB) | |
Maximum Continuous Forward Current | 3A | |
Peak Reverse Repetitive Voltage | 60V | |
Diode Configuration | Single | |
Rectifier Type | Schottky Rectifier | |
Diode Type | Schottky | |
Pin Count | 2 | |
Maximum Forward Voltage Drop | 790mV | |
Number of Elements per Chip | 1 | |
Diode Technology | Schottky | |
Peak Non-Repetitive Forward Surge Current | 100A | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Mounting Type Surface Mount | ||
Package Type DO-214AA (SMB) | ||
Maximum Continuous Forward Current 3A | ||
Peak Reverse Repetitive Voltage 60V | ||
Diode Configuration Single | ||
Rectifier Type Schottky Rectifier | ||
Diode Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Drop 790mV | ||
Number of Elements per Chip 1 | ||
Diode Technology Schottky | ||
Peak Non-Repetitive Forward Surge Current 100A | ||
Power Schottky rectifier suited for switch mode power supplies and high frequency inverters. This device is intended for use in low voltage output for small battery chargers and battery protection in automotive applications.
Negligible switching losses
Low forward voltage drop for higher efficiency
Low thermal resistance
Low forward voltage drop for higher efficiency
Low thermal resistance
