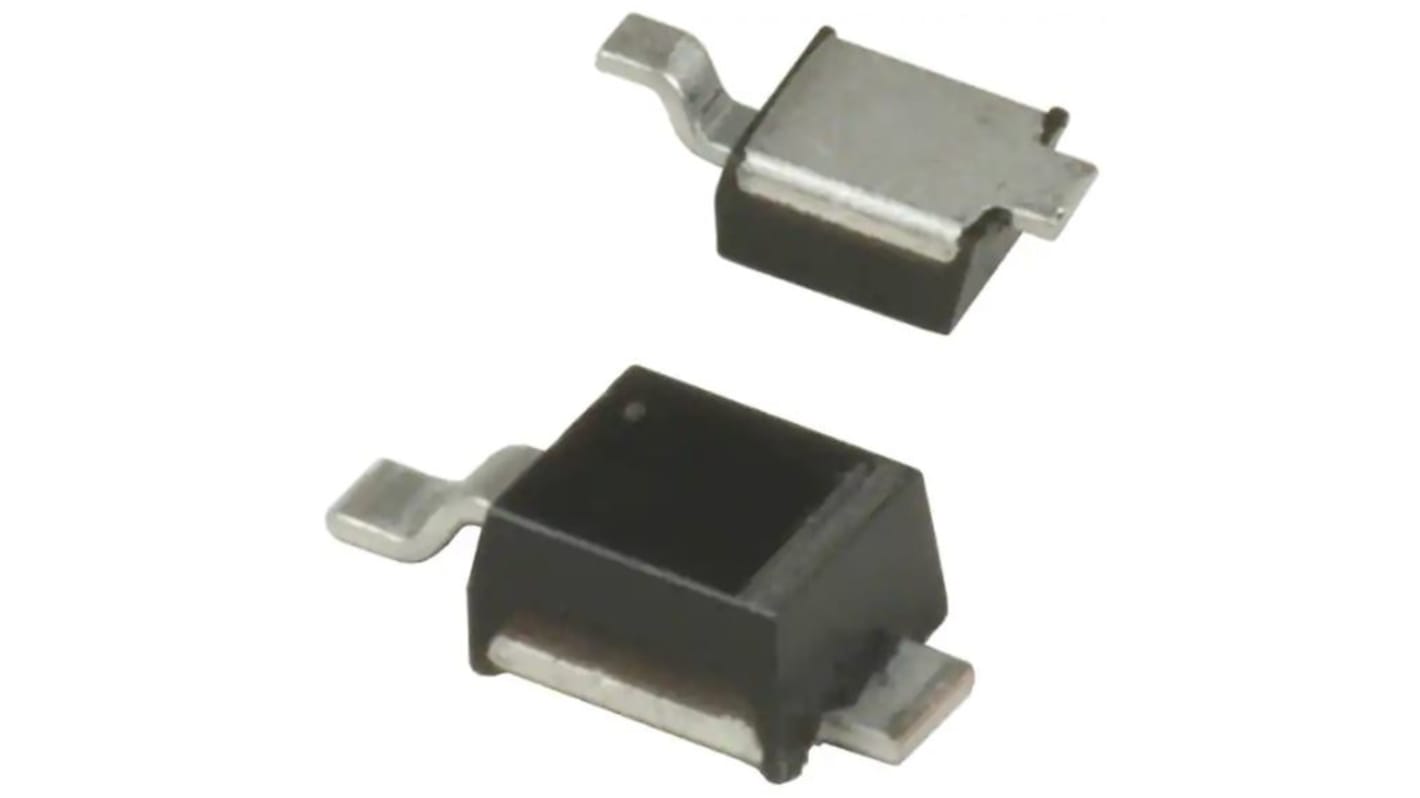

onsemi 20 V 1 A Diode Schottky 2-Pin POWERMITE MBRM120LT1G

View this category
Bulk discount available

Subtotal (1 pack of 100 units)*

£15.90

(exc. VAT)

£19.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
100 - 400£0.159£15.90
500 - 900£0.137£13.70
1000 +£0.119£11.90

*price indicative

Packaging Options:
RS Stock No.:
184-5013
Mfr. Part No.:
MBRM120LT1G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Product Type

Diode

Mount Type

Surface

Package Type

POWERMITE

Maximum Continuous Forward Current If

1A

Peak Reverse Repetitive Voltage Vrrm

20V

Diode Configuration

Single

Rectifier Type

Schottky

Pin Count

2

Peak Reverse Current Ir

25mA

Minimum Operating Temperature

-55°C

Maximum Forward Voltage Vf

0.67V

Peak Non-Repetitive Forward Surge Current Ifsm

50A

Maximum Operating Temperature

125°C

Width

2.05 mm

Length

2.18mm

Height

1.15mm

Standards/Approvals

No

Automotive Standard

AEC-Q101

COO (Country of Origin):
MY
Low Profile - Maximum Height of 1.1 mm

Small Footprint - Footprint Area of 8.45 mm2

Low VF Provides Higher Efficiency and Extends Battery Life

Supplied in 12 mm Tape and Reel

Low Thermal Resistance with Direct Thermal Path of Die on Exposed Cathode Heat Sink

Mechanical Characteristics:

Case: Molded Epoxy

Weight: 62 mg (approximately)

Device Marking: BCF

Lead and Mounting Surface Temperature for Soldering Purposes. 260°C Maximum for 10 Seconds

All Packages are Pb-Free

PPAP Capable

NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
