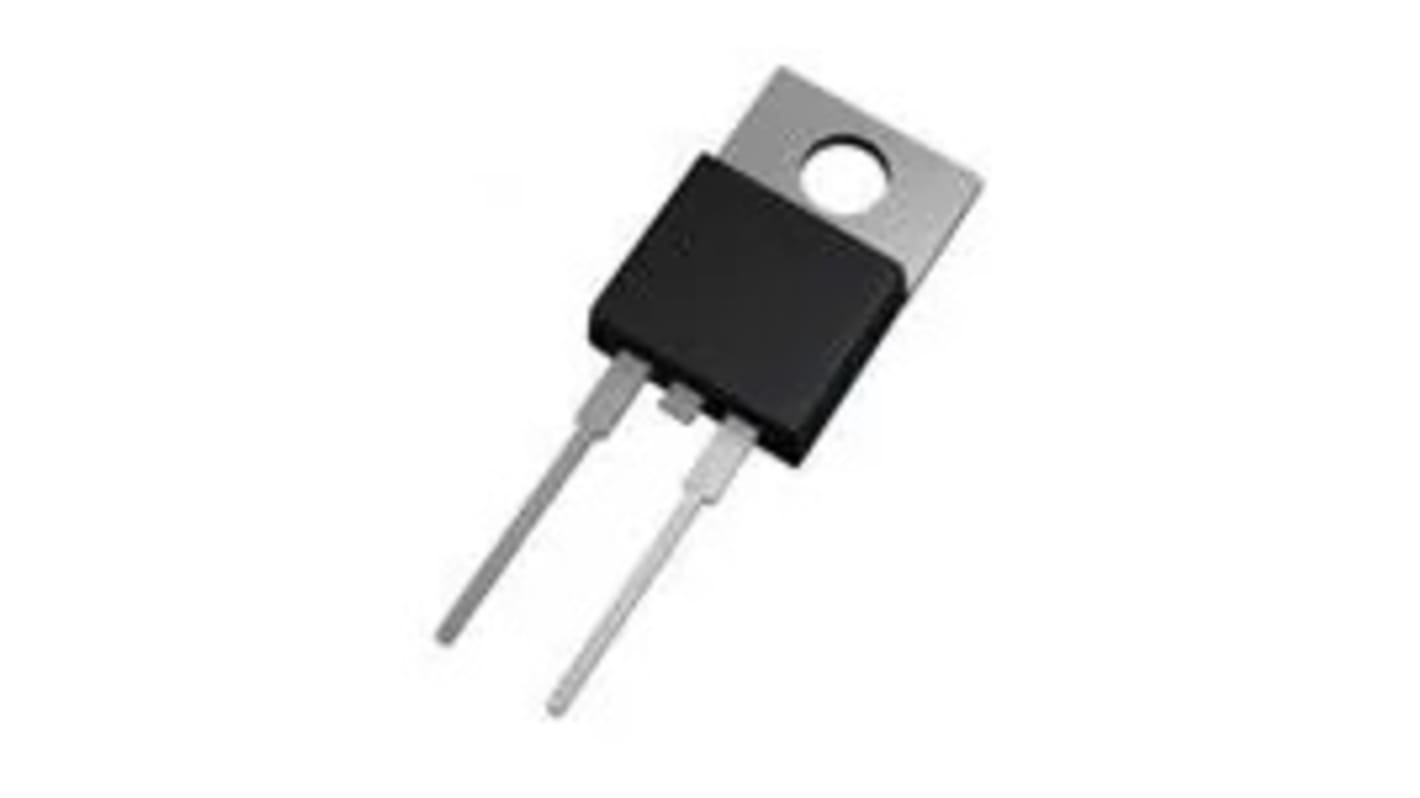

STMicroelectronics 650 V 22 A Diode 2-Pin TO-220

View this category
Bulk discount available

Subtotal (1 tube of 50 units)*

£79.30

(exc. VAT)

£95.15

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
50 - 50£1.586£79.30
100 - 200£1.342£67.10
250 +£1.308£65.40

*price indicative

RS Stock No.:
168-8811
Mfr. Part No.:
STPSC4H065DI
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Mount Type

Through Hole

Product Type

Diode

Package Type

TO-220

Maximum Continuous Forward Current If

22A

Peak Reverse Repetitive Voltage Vrrm

650V

Diode Configuration

Single

Series

STPSC

Pin Count

2

Minimum Operating Temperature

-40°C

Peak Non-Repetitive Forward Surge Current Ifsm

200A

Maximum Forward Voltage Vf

2.5V

Peak Reverse Current Ir

170μA

Maximum Operating Temperature

175°C

Width

4.6 mm

Standards/Approvals

No

Diameter

3.75 mm

Length

10.4mm

Height

15.9mm

Automotive Standard

No

COO (Country of Origin):
CN

Silicon Carbide (SiC) Schottky Diode, STMicroelectronics


A Silicon Carbide (SiC) diode is an ultra-high performance power Schottky rectifier.

• No or negligible reverse recovery

• Switching behaviour independent of temperature

• Dedicated to PFC applications

• High forward surge capability

Diodes and Rectifiers, STMicroelectronics
