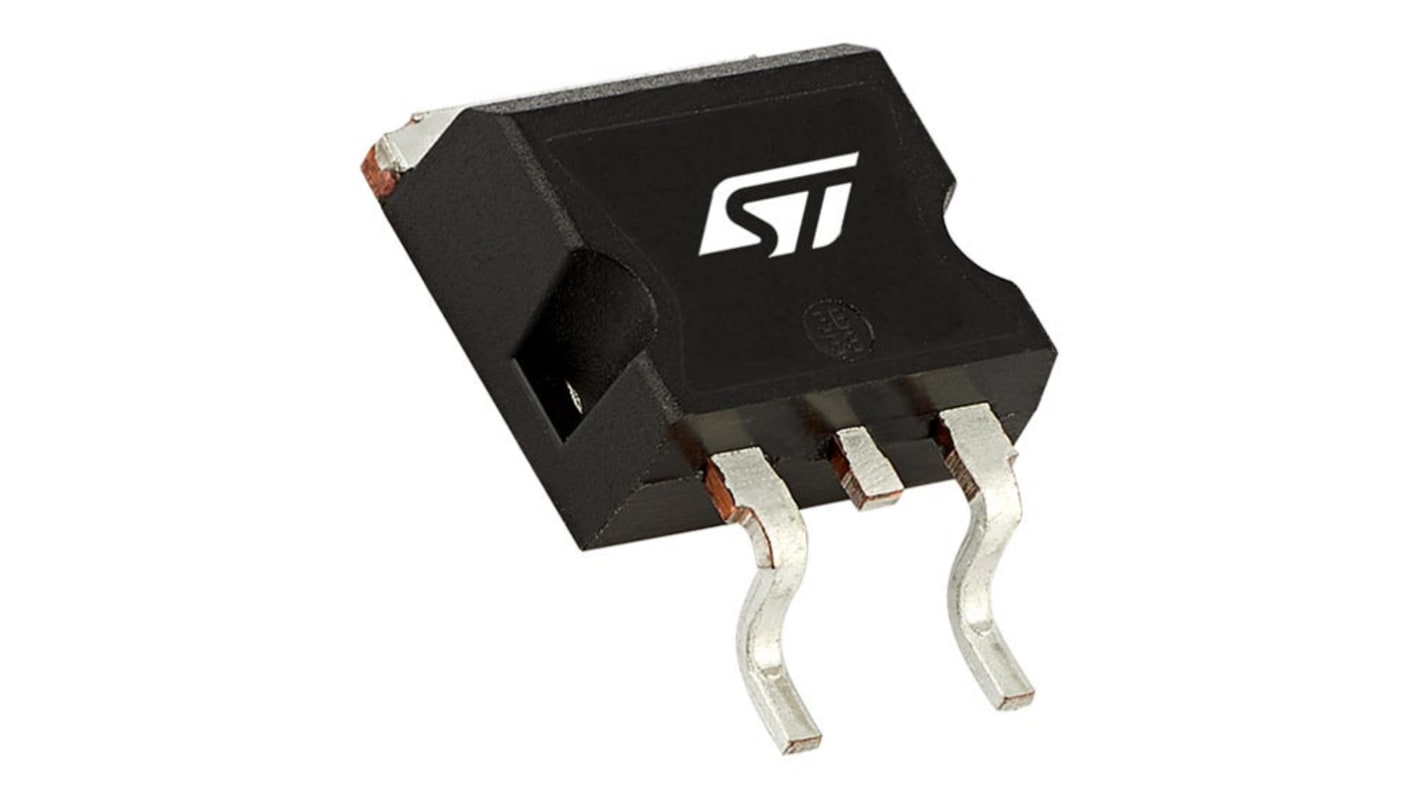

STMicroelectronics 100V 20A, Dual Schottky Rectifier & Schottky Diode, 3-Pin D2PAK STPS20H100CG-TR
- RS Stock No.:
- 151-382
- Mfr. Part No.:
- STPS20H100CG-TR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 1000 units)*
£342.00
(exc. VAT)
£410.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1000 + | £0.342 | £342.00 |
*price indicative
- RS Stock No.:
- 151-382
- Mfr. Part No.:
- STPS20H100CG-TR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Mounting Type | Surface Mount | |
Package Type | D2PAK | |
Maximum Continuous Forward Current | 20A | |
Peak Reverse Repetitive Voltage | 100V | |
Diode Type | Schottky | |
Pin Count | 3 | |
Number of Elements per Chip | 2 | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Mounting Type Surface Mount | ||
Package Type D2PAK | ||
Maximum Continuous Forward Current 20A | ||
Peak Reverse Repetitive Voltage 100V | ||
Diode Type Schottky | ||
Pin Count 3 | ||
Number of Elements per Chip 2 | ||
- COO (Country of Origin):
- CN
The STMicroelectronics Dual centre tap Schottky rectifier designed for high frequency miniature switch mode power supplies such as adaptors and on board DC to DC converters. Good trade off between leakage current and forward voltage drop.
Negligible switching losses
High junction temperature capability
Low leakage current
Avalanche rated
High junction temperature capability
Low leakage current
Avalanche rated
