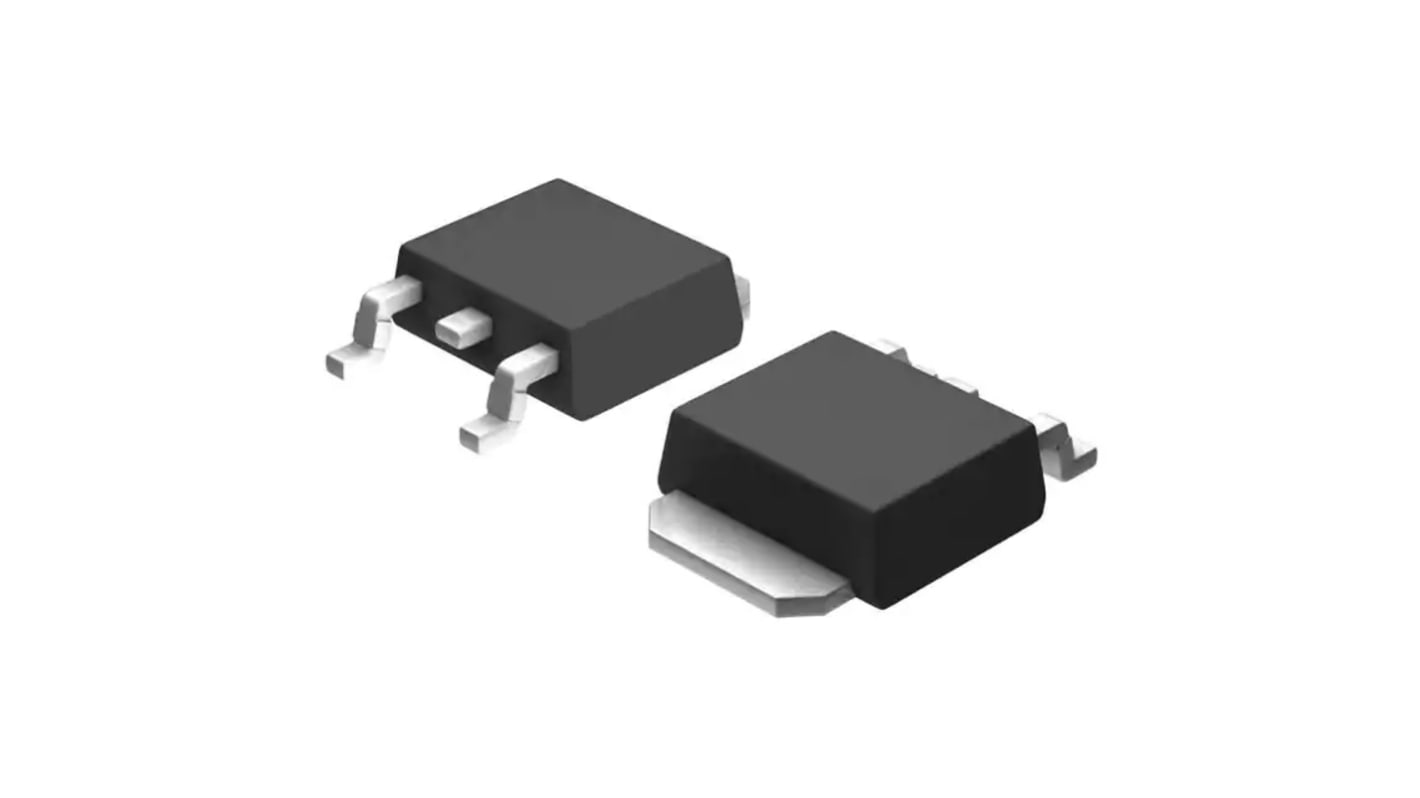

ROHM 100V 20A, Dual Schottky Rectifier & Schottky Diode, 3-Pin D2PAK RBQ20NS100ATL
- RS Stock No.:
- 235-2711
- Mfr. Part No.:
- RBQ20NS100ATL
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 5 units)*
£11.90
(exc. VAT)
£14.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 30 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £2.38 | £11.90 |
50 - 95 | £2.15 | £10.75 |
100 - 245 | £1.722 | £8.61 |
250 - 495 | £1.69 | £8.45 |
500 + | £1.414 | £7.07 |
*price indicative
- RS Stock No.:
- 235-2711
- Mfr. Part No.:
- RBQ20NS100ATL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Mounting Type | Surface Mount | |
Package Type | TO-263S | |
Maximum Continuous Forward Current | 20A | |
Peak Reverse Repetitive Voltage | 100V | |
Diode Configuration | 2x Common Cathode Pair | |
Rectifier Type | Schottky Diode | |
Diode Type | Schottky | |
Pin Count | 3 | |
Number of Elements per Chip | 2 | |
Diode Technology | Schottky Barrier | |
Select all | ||
---|---|---|
Brand ROHM | ||
Mounting Type Surface Mount | ||
Package Type TO-263S | ||
Maximum Continuous Forward Current 20A | ||
Peak Reverse Repetitive Voltage 100V | ||
Diode Configuration 2x Common Cathode Pair | ||
Rectifier Type Schottky Diode | ||
Diode Type Schottky | ||
Pin Count 3 | ||
Number of Elements per Chip 2 | ||
Diode Technology Schottky Barrier | ||
The ROHM RBQ series is a high reliability schottky barrier diode with low IR for switching power supply. It has repetitive peak reverse voltage of 100 V.
Power mold type
Cathode common dual type
Silicon epitaxial planar structure
Cathode common dual type
Silicon epitaxial planar structure
