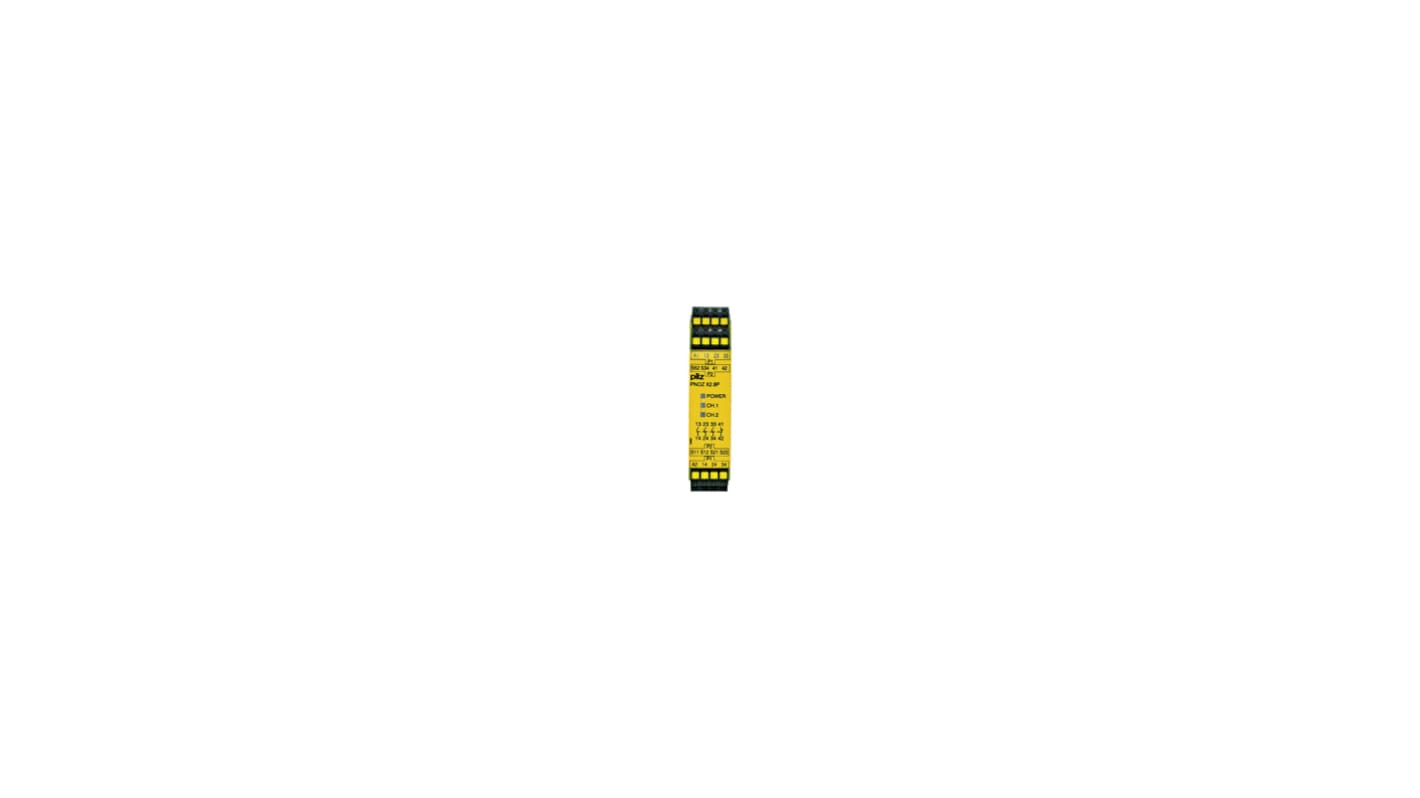

Pilz 787301, 24V ac/dc Safety Relay, 3 Safety Contacts, 1
- RS Stock No.:
- 340-198
- Mfr. Part No.:
- 787301
- Brand:
- Pilz
Subtotal (1 unit)*
£197.03
(exc. VAT)
£236.44
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 08 June 2026
- Plus 2 unit(s) shipping from 22 June 2026
- Plus 7 unit(s) shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £197.03 |
*price indicative
- RS Stock No.:
- 340-198
- Mfr. Part No.:
- 787301
- Brand:
- Pilz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pilz | |
| Product Type | Safety Relay | |
| Safety Contacts | 3 | |
| Contact Configuration | 3 NO/1 NC | |
| Number of Auxiliary Contacts | 1 | |
| Reset Method | Automatic & Manual | |
| Power Consumption | 2.5W | |
| Series | 787301 | |
| Terminal Type | Spring Loaded | |
| Contact Current | 6A | |
| Switching DC Voltage | 24V dc | |
| Switching AC Voltage | 240V ac | |
| Standards/Approvals | TÜV, UKCA, cULus Listed, CCC, EN 61326-3-1, CE, EAC, EN 60947-5-1, EN 61000-6-2 | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | 55°C | |
| Width | 22.5mm | |
| Height | 101mm | |
| Length | 121mm | |
| Hazardous Area Certification | NO | |
| Coil Voltage | 24V ac/dc | |
| Select all | ||
|---|---|---|
Brand Pilz | ||
Product Type Safety Relay | ||
Safety Contacts 3 | ||
Contact Configuration 3 NO/1 NC | ||
Number of Auxiliary Contacts 1 | ||
Reset Method Automatic & Manual | ||
Power Consumption 2.5W | ||
Series 787301 | ||
Terminal Type Spring Loaded | ||
Contact Current 6A | ||
Switching DC Voltage 24V dc | ||
Switching AC Voltage 240V ac | ||
Standards/Approvals TÜV, UKCA, cULus Listed, CCC, EN 61326-3-1, CE, EAC, EN 60947-5-1, EN 61000-6-2 | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature 55°C | ||
Width 22.5mm | ||
Height 101mm | ||
Length 121mm | ||
Hazardous Area Certification NO | ||
Coil Voltage 24V ac/dc | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Pilz Safety Relay features 1/2-channel input wiring with or without short-circuit detection across contacts. It includes 3 N/O and 1 N/C outputs, with options for automatic or manual start. Powered by 24 V AC/DC, it has a compact width of 22.5 mm and is equipped with plug-in spring-loaded terminals for easy installation. The relay provides monitoring for E-STOP, safety gates, and light guards, ensuring robust safety and control in industrial environments.
CE and UKCA listed
AgCuNi is the relay contact material
RoHS compliant
